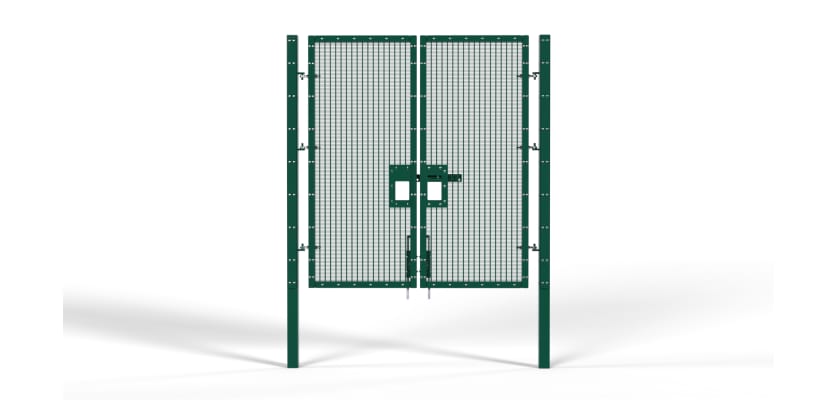

2.4m x 2.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
Product Description
2.4m x 2.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
The 2.4m high ProFence® 2X double gate system provides an imposing barrier, certified to the LPS 1175 SR2 (B3) security standard for high-risk environments.
The increased height of this gate acts as a significant physical and psychological deterrent, which, when combined with the LPS 1175 B3 certification, offers layered security. This 2.0m wide configuration is ideal for secure personnel access points at sites of national critical importance. It ensures that foot traffic is channelled through a certified barrier that can resist aggressive attack, preventing unauthorised individuals from gaining access to sensitive areas.
This configuration is also perfectly suited for securing fire exits or emergency muster points at secure facilities. It provides a compliant exit width while ensuring the gate offers no weakness when closed, maintaining the integrity of the high-security perimeter at all times. To ensure this level of protection extends across the entire boundary, specify this gate with the adjacent 2.4m high ProFence® 2X fence kit.
Its Red Book listed product status proves it can resist a sustained, three-minute attack from an intruder equipped with Toolkit B, ensuring your assets remain secure behind a trusted barrier.
Features & Benefits

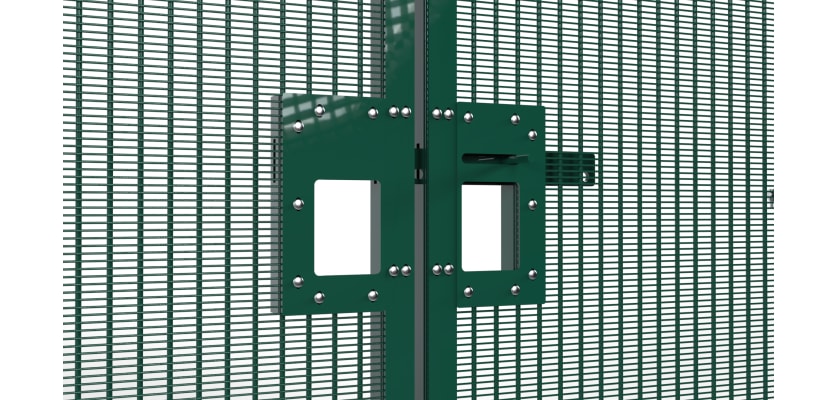

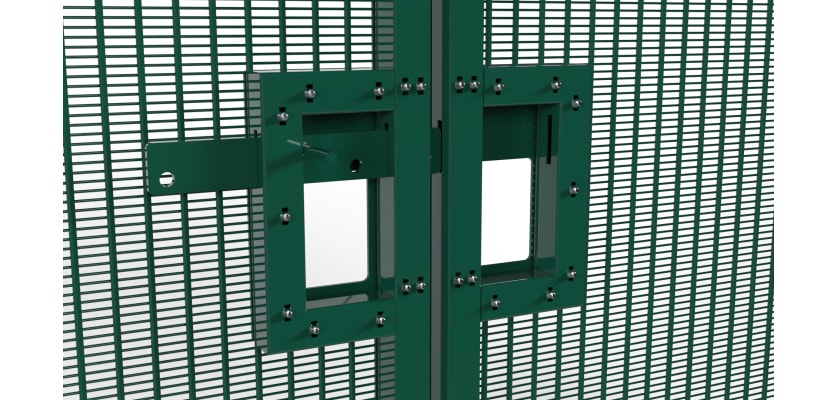

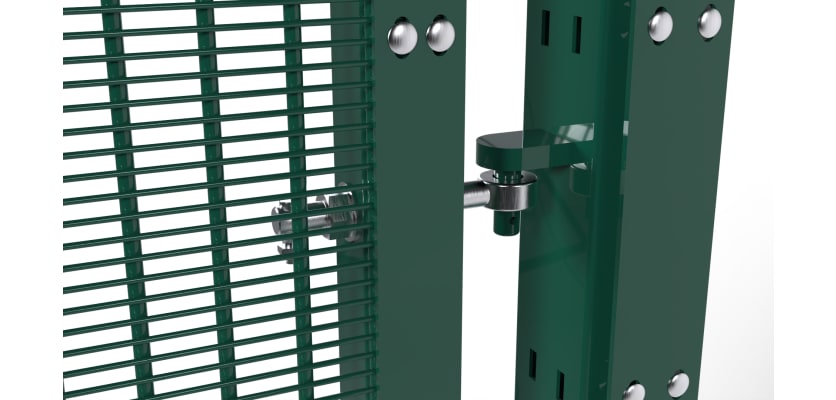

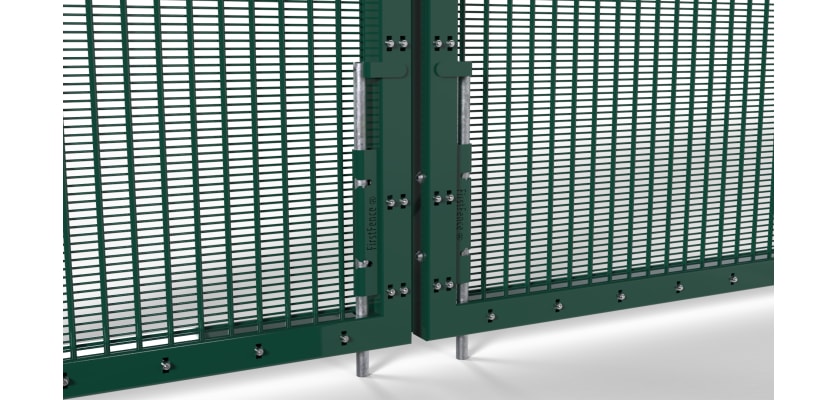

This 2.4m x 2.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit contains two 1.0m gate leaves, two appropriately sized hinge posts, and six SR2-rated gate eyes. The gate's locking mechanism combines a central slide latch with two powerful drop bolts, which anchor the gate leaves into the ground for exceptional stability and resistance to force.
The gate's robust steel frame is shielded from the elements by both a hot-dip galvanised coating and a tough polyester powder finish. The gate leaves are infilled with MeshPro® 10 security mesh, which presents a significant obstacle to cutting or climbing attempts. The six gate eyes are attached using shear nuts, a permanent fixing that cannot be undone.
Get in Touch
Should you have any questions about this range of LPS 1175-rated fencing or for more information on stock and availability, please don’t hesitate to contact us. We can be reached via phone at 01283 512 111, via email at sales@firstfence.co.uk, or via our online chat system, where one of our helpful and friendly staff will be more than happy to assist you.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2510mm |
| Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2510mm |
| Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
