2.4m x 10.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 2400mm [Installed] |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
2.4m x 10.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit

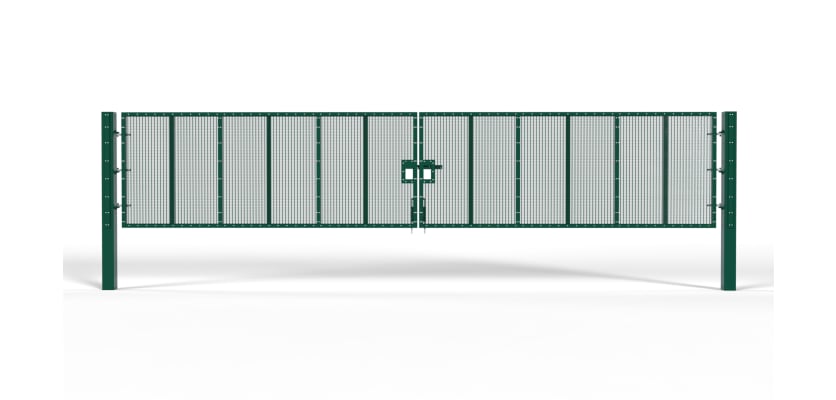

Providing a maximum width opening at an intimidating 2.4m height, the 10-metre ProFence® 2X double gate is the ultimate solution for sites needing to accommodate oversized vehicles.
An LPS 1175 B3 certified gate is a non-negotiable component for the physical security of sites of national critical importance. This 10.0m wide configuration is designed for the most demanding access requirements, such as at ports, manufacturing plants for sensitive technologies, or military facilities, ensuring that even abnormal loads can pass through a certifiably secure entrance.
This gate is also indispensable for securing access to large-scale civil engineering projects, such as new bridges or rail constructions. The 10.0m width allows for the passage of mobile cranes and modular components, while the B3 rating protects the site and its high-value plant from theft and disruption. To ensure the entire project site is secure, specify this gate with the 2.4m high ProFence® 2X fence system.
It is certified to the demanding LPS 1175 SR2 (B3) standard and is Red Book listed, guaranteeing it has been tested to withstand a three-minute attack from operatives using advanced tools (Toolkit B).
Features & Benefits

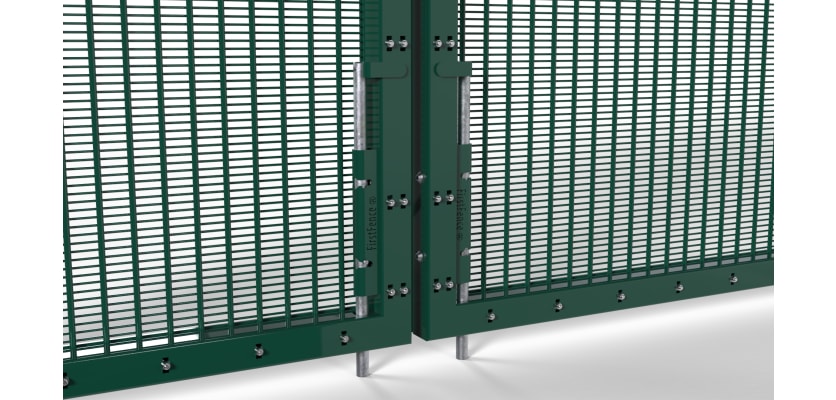

The 2.4m x 10.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is a comprehensive package containing two 5.0m gate leaves, two hinge posts, and six SR2-rated gate eyes. The gate's substantial span is secured through a robust central slide latch and two lockable drop bolts that anchor the gate firmly into the ground.

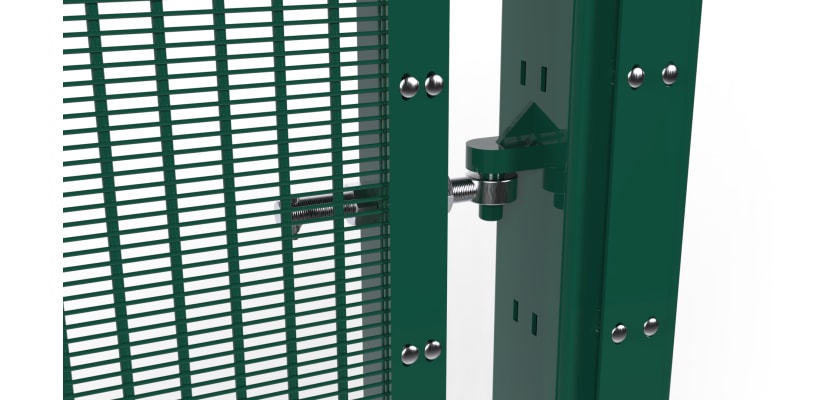

Fabricated from high-grade steel, the gate system is protected by a hot-dip galvanised coating and an additional polyester powder-coated finish. The gate features the formidable MeshPro® 10 mesh infill. The six hinges are permanently installed using tamper-resistant shear nuts.
Installation Made Easy
This gate system can be ordered in a dig-in format for soft ground or a bolt-down format for concrete. Bolt-down versions are supplied with all the required ground anchor bolts. To support the weight and height of these gate leaves, we strongly recommend using C20 or C25 concrete with at least five Post Mix per dig-in post.
