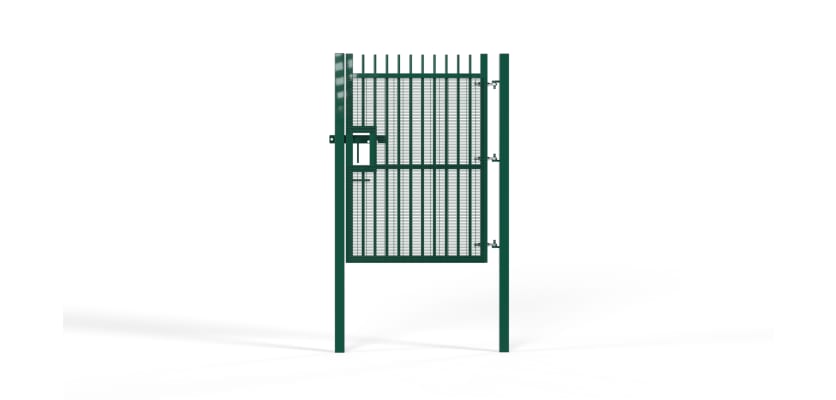

3.0m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Product Description
3.0m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Protect vehicle access points at the highest level with this 3.0m high x 2.0m wide EnviroProtect® Anti-Climb Gate. Its towering frame and fully welded 358 ‘prison mesh’ infill form an impenetrable anti-climb and anti-cut barrier. Independently certified to LPS 1175 A1 (SR1) and reinforced with an uprated hinge post, this heavy-duty gate is built for maximum perimeter defence.
Dual-Layered Defence: Certified Security & Anti-Climb Protection
The SR1 certification guarantees resistance against tool-based intrusion attempts, while the 358 mesh design prevents climbing and resists cutting. Together, they deliver comprehensive layered protection against forced entry.
Built for Strength and Longevity
Constructed with a 60x60mm box section leaf frame, the welded mesh panel adds strength and rigidity. Every component is pre-galvanised, providing long-term corrosion resistance and reducing the need for ongoing maintenance.
Technical Specification
- Height: 3.0m (3000mm)
- Clear access width: 2.0m (2000mm)
- Total overall width: 2330mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Posts: 100x100x3mm hinge post & 80x80x3mm catch post
- Finish: Pre-galvanised steel
Flexible Installation Options

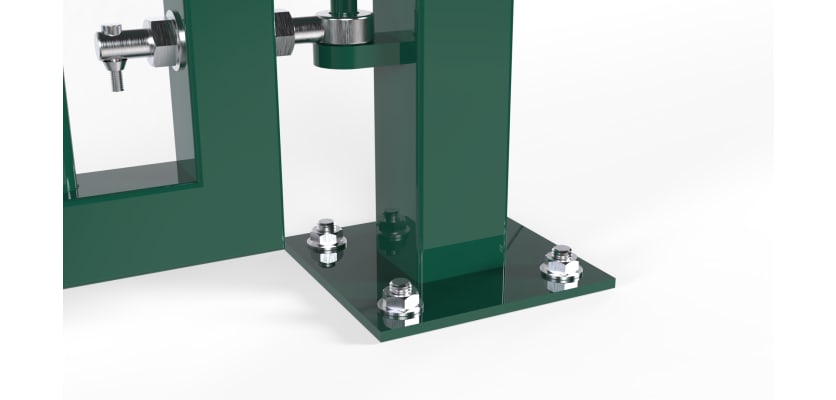

Supplied with both Bolt-down posts (3000mm) for secure fitting on solid ground and Dig-in posts (3700mm) for deep concrete foundations, ensuring maximum stability in any setting.
Applications and Integration

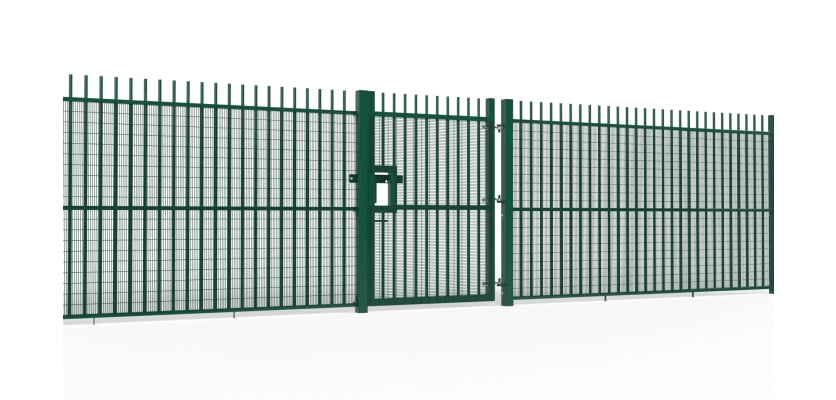

Perfect for CNI facilities, prisons, MOD sites, and high-security service entrances, this gate delivers uncompromising protection while allowing light vehicle access. It is designed to integrate seamlessly with the 3.0m high EnviroProtect® Anti-Climb railing system for a continuous line of defence.
Get in Touch
Discuss your maximum-security requirements with our team today. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2330mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 3 |
| M10 x 100mm Bolts | 3 |
| Drop Bolt | 1 |
| 100x100mm Ribbed Inserts | 1 |
| 80x80mm Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
