3.0m High x 1.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
| Height | 3000mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |

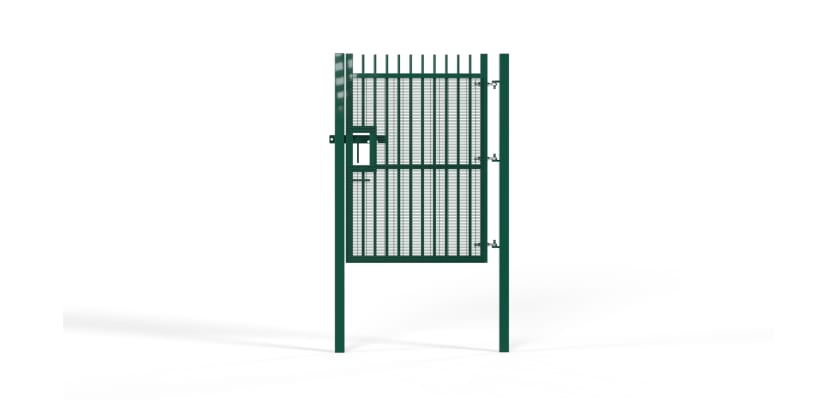

3.0m High x 1.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
When only the highest level of pedestrian security will do, this 3.0m high x 1.0m wide EnviroProtect® Anti-Climb gate delivers unmatched protection. Its towering height and fully welded 358 ‘prison mesh’ infill create a near-impenetrable barrier against climbing and cutting. Certified to LPS 1175 A1 (SR1), this gate is the trusted choice for Critical National Infrastructure, MOD facilities, and high-risk compounds.
Dual-Layered Security: Tested & Anti-Climb
The gate’s SR1 certification provides verified resistance to sustained tool-based attacks. Paired with the tightly woven 358 mesh, renowned for its anti-climb and anti-cut qualities, this design delivers maximum protection against both brute-force and agile intrusion attempts.
Built for Long-Term Strength
The gate leaf is manufactured from a 60x60mm box section frame with a fully welded mesh panel for rigidity and reliability. Every component is pre-galvanised, giving it exceptional corrosion resistance and ensuring dependable performance with minimal maintenance.
Technical Specification
- Height: 3.0m (3000mm)
- Clear access width: 1.0m (1000mm)
- Total overall width: 1290mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Posts: 80x80x3mm hinge & catch posts
- Finish: Pre-galvanised steel
Flexible Installation Options

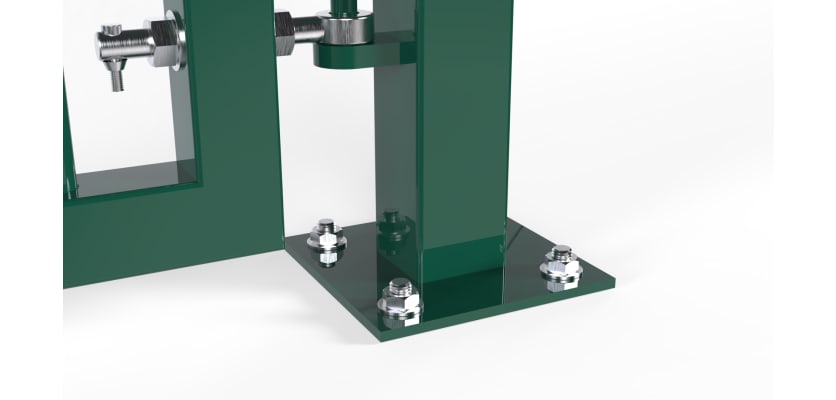

This kit includes both Bolt-Down posts (3000mm) for existing concrete surfaces and Dig-In posts (3700mm) for deeper foundations, giving full flexibility to match site conditions.
Applications and Integration

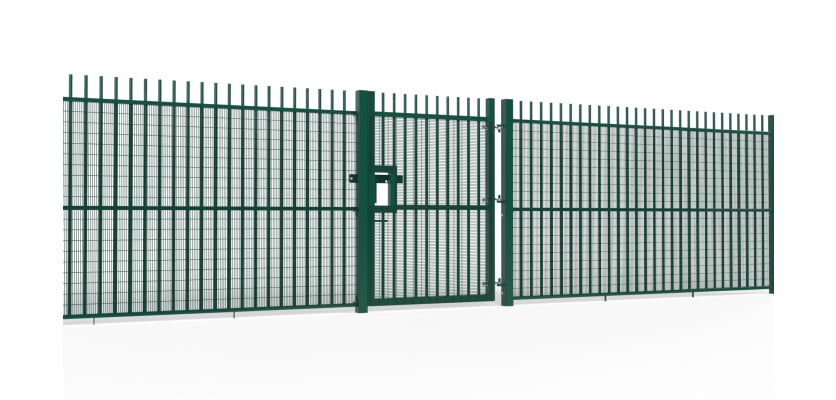

With its imposing 3.0m height, this gate provides the ultimate deterrent for defence establishments, utilities, correctional sites, and other sensitive facilities. It integrates seamlessly with the 3.0m EnviroProtect® Anti-Climb railing system for complete perimeter security.
