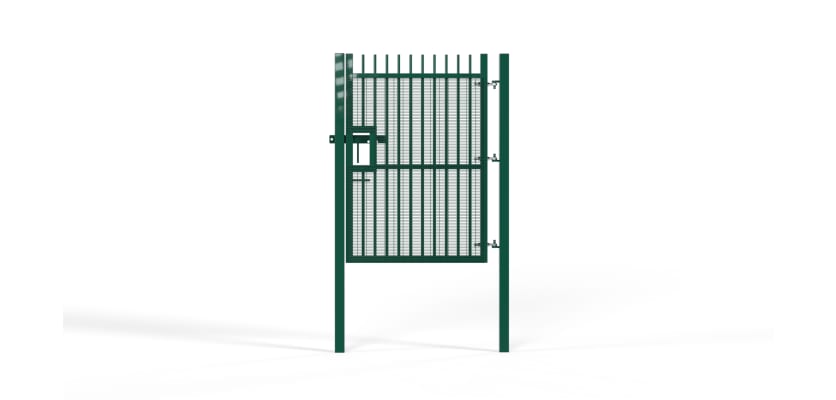

2.0m High x 1.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
| Height | 2000mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Total Post Length | 2000mm [Bolt Down], 2700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
2.0m High x 1.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
This 2.0m high EnviroProtect® Anti-Climb Gate delivers exceptional protection for pedestrian entry points at sensitive or high-risk sites. Its increased height, combined with a fully welded 358 mesh infill, prevents climbing attempts and resists cutting. Independently tested and certified to LPS 1175 A1 (SR1), it provides proven perimeter defence for data centres, utilities, and critical infrastructure.
Certified Dual Defence

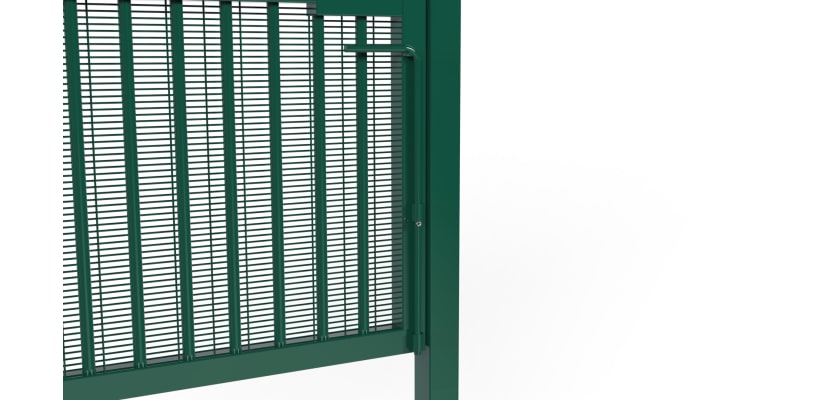

With an A1 (SR1) rating, the gate is verified to resist tool-based intrusion attempts. The dense 358 mesh further strengthens security by eliminating hand and footholds, while remaining highly resistant to cutting. Together, these features create a secure and reliable access point.
Built for Long-Term Performance
Constructed with a 60x60mm box-section frame and reinforced with welded 358 mesh, the gate leaf is both rigid and durable. All components undergo pre-galvanising, ensuring excellent resistance to corrosion and reducing maintenance demands.
Technical Details
- Height: 2.0m (2000mm)
- Clear access width: 1.0m (1000mm)
- Total installed width: 1290mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Posts: 80x80x3mm hinge and catch posts
- Finish: Pre-galvanised steel for weather protection
Flexible Installation

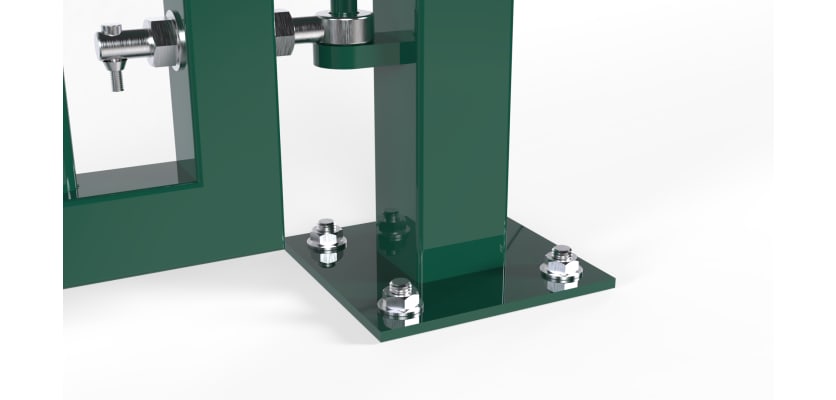

Supplied with both Bolt-Down posts (2000mm) for hardstanding and Dig-In posts (2700mm) for soft ground, giving flexibility to suit your site conditions.
Applications
Ideal for pedestrian entrances at transport hubs, energy sites, and other high-security locations where a taller anti-climb barrier is essential. Compatible with the 2.0m EnviroProtect® Anti-Climb fencing system for a consistent perimeter line.
