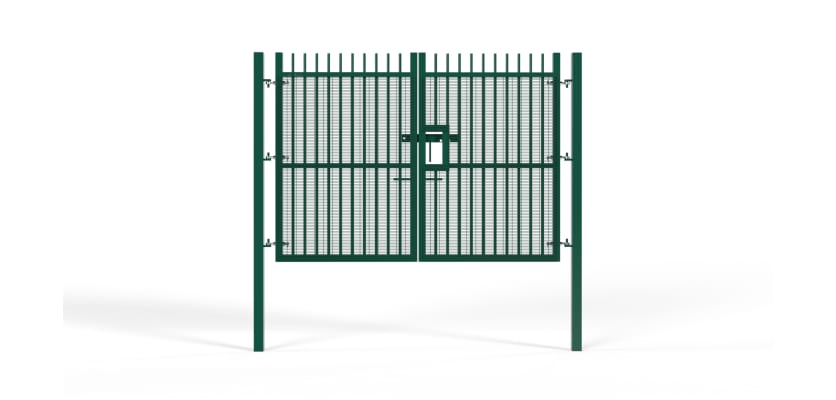

2.4m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
2.4m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Strengthen your site’s perimeter with the 2.4m high x 2.0m wide EnviroProtect® Anti-Climb Double Leaf Gate Kit. Designed for enhanced protection, this model combines a substantial anti-climb height with a versatile twin-leaf format, making it suitable for personnel entry points or smaller vehicle access routes. Featuring a robust welded 358 ‘prison mesh’ infill and certified to LPS 1175 A1(SR1), this gate is built to perform where high security is non-negotiable.
Certified Protection: Anti-Climb & Attack Resistant
The LPS 1175 A1(SR1) certification confirms the gate’s proven resistance to physical intrusion attempts, withstanding a timed assault using basic hand tools. Combined with the anti-climb 358 mesh, engineered with apertures too narrow for fingers and toes and wires thick enough to resist cutting, this system delivers a dual-layered defence that deters and delays intruders.
Heavy-Duty Construction
Each gate leaf is formed from a strong 60x60mm box section frame, securely housing the welded 358 mesh to create a rigid and tamper-resistant barrier. Pre-galvanised components provide lasting corrosion protection, ensuring the gate remains both secure and low-maintenance throughout its service life.
Technical Details
- Height: 2.4m (2400mm)
- Clear Access Width: 2.0m (2000mm)
- Total Width: 2430mm
- Leaves: Two 60x60mm frames with 358 mesh infill
- Posts: Heavy-duty 80x80x3mm hinge posts
- Finish: Pre-galvanised and powder coated.
Flexible Installation Options
This kit includes both Bolt-Down posts (2400mm length) for securing to existing hard standings and Dig-In posts (3100mm length) for embedding into fresh concrete, offering maximum stability and adaptability to different ground conditions.
Applications
The 2.4m height and unclimbable design make this gate ideal for safeguarding sensitive areas such as:
- Utility and energy sites
- Data centres
- Transport depots
- Secure industrial compounds
It integrates seamlessly with the 2.4m EnviroProtect® Anti-Climb fencing system for a consistent, high-security perimeter.
Get in Touch
For expert advice on planning your EnviroProtect® Anti-Climb project, for a detailed quotation, or to discuss your specific site requirements, please contact our security specialists. You can reach us by phone at 01283 512 111, by email at sales@firstfence.co.uk, or by using the Live Chat feature available on our website during business hours.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 2 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 2 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Product Description
2.4m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Strengthen your site’s perimeter with the 2.4m high x 2.0m wide EnviroProtect® Anti-Climb Double Leaf Gate Kit. Designed for enhanced protection, this model combines a substantial anti-climb height with a versatile twin-leaf format, making it suitable for personnel entry points or smaller vehicle access routes. Featuring a robust welded 358 ‘prison mesh’ infill and certified to LPS 1175 A1(SR1), this gate is built to perform where high security is non-negotiable.
Certified Protection: Anti-Climb & Attack Resistant
The LPS 1175 A1(SR1) certification confirms the gate’s proven resistance to physical intrusion attempts, withstanding a timed assault using basic hand tools. Combined with the anti-climb 358 mesh, engineered with apertures too narrow for fingers and toes and wires thick enough to resist cutting, this system delivers a dual-layered defence that deters and delays intruders.
Heavy-Duty Construction
Each gate leaf is formed from a strong 60x60mm box section frame, securely housing the welded 358 mesh to create a rigid and tamper-resistant barrier. Pre-galvanised components provide lasting corrosion protection, ensuring the gate remains both secure and low-maintenance throughout its service life.
Technical Details
- Height: 2.4m (2400mm)
- Clear Access Width: 2.0m (2000mm)
- Total Width: 2430mm
- Leaves: Two 60x60mm frames with 358 mesh infill
- Posts: Heavy-duty 80x80x3mm hinge posts
- Finish: Pre-galvanised and powder coated.
Flexible Installation Options
This kit includes both Bolt-Down posts (2400mm length) for securing to existing hard standings and Dig-In posts (3100mm length) for embedding into fresh concrete, offering maximum stability and adaptability to different ground conditions.
Applications
The 2.4m height and unclimbable design make this gate ideal for safeguarding sensitive areas such as:
- Utility and energy sites
- Data centres
- Transport depots
- Secure industrial compounds

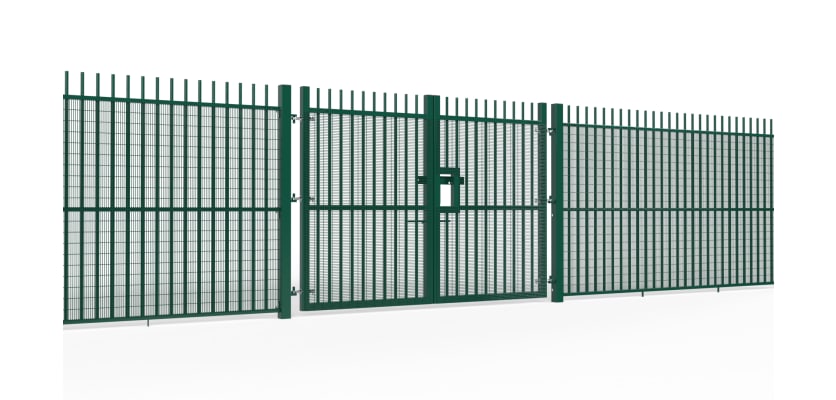

It integrates seamlessly with the 2.4m EnviroProtect® Anti-Climb fencing system for a consistent, high-security perimeter.
Get in Touch
For expert advice on planning your EnviroProtect® Anti-Climb project, for a detailed quotation, or to discuss your specific site requirements, please contact our security specialists. You can reach us by phone at 01283 512 111, by email at sales@firstfence.co.uk, or by using the Live Chat feature available on our website during business hours.
