2.4m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Product Description
2.4m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
The 2.4m high, 3.0m wide EnviroProtect® gate is a premier solution for securing wide vehicle entrances without compromising on security. This single-leaf gate combines a substantial anti-climb height with a generous access width, making it ideal for main access routes. It is fully certified to LPS 1175 A1(SR1) and features our most robust post specification to ensure the large gate leaf operates flawlessly, providing a secure, reliable, and imposing barrier for your perimeter. The 2.4m High x 3.0m Wide EnviroProtect® SR1 (A1) Single Leaf Railing Gate Kit is fully designed to work seamlessly with our 2.4m high EnviroProtect® railing kits.
With its unique combination of height, wide span, and certified security, this gate is the ultimate choice for securing primary entrances at industrial parks, logistics depots, agricultural sites, and other locations that require a high level of security for frequent vehicle traffic.
Understanding A1(SR1) Rated Security Railings
The LPS 1175 A1(SR1) rating is your assurance of a tested and certified security product. It confirms the gate’s ability to resist a determined physical attack for a minimum of 60 seconds, offering a level of protection that meets the stringent requirements of high-security sites and insurance policies.
Innovative Low to No Weld Construction
This gate's incredible durability stems from its modern, low-weld design. By engineering out the vulnerable welded joints found on traditional gates, we have created a product that offers unparalleled resistance to corrosion. This means a longer, maintenance-free life and a lower total cost of ownership for your security investment.
This gate is engineered to secure wide openings effectively. It provides a 2.4-metre certified height and a vast 3000mm clear access width, with a total footprint of 3330mm. The 60x60mm steel box section leaf is supported by a heavy-duty 100x100x3mm hinge post and a robust 80x80x3mm catch post to prevent sagging and ensure durability.
Installation Options

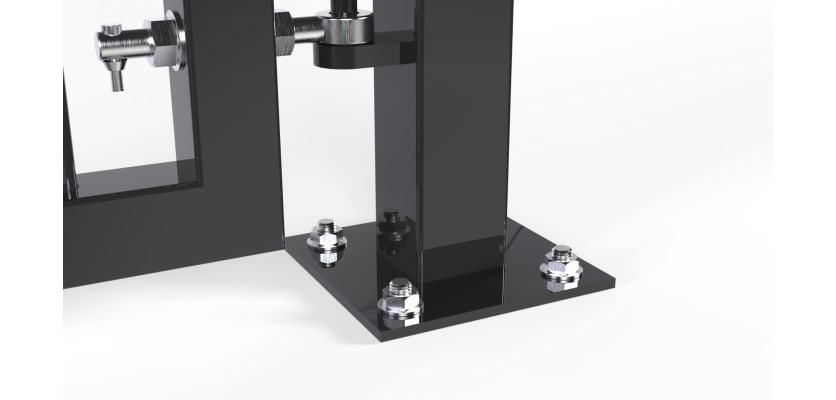

To ensure a safe and stable installation for this large gate, the kit includes posts for both bolt-down and dig-in applications. You will receive 2400mm base-plated posts for solid surfaces and 3100mm extended posts for creating a new concrete footing, offering flexibility for any site condition.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk. You can also speak to a specialist directly using our website's Live Chat service.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3330mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 120x120x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 120x120mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 3 |
| M10 x 140mm Bolts | 3 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 1 |
| 120x120mm Ribbed Inserts | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
