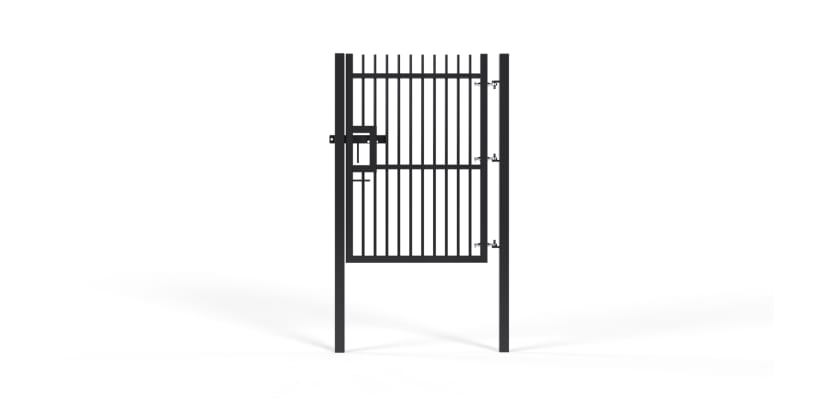

1.8m High x 1.2m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Product Description
1.8m High x 1.2m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Offering a wider opening for enhanced accessibility, this 1.2m wide EnviroProtect® gate kit maintains the same formidable 1.8m height and A1(SR1) security certification. It's the perfect solution for sites that require passage for wheelchair users, small buggies, or personnel carrying equipment, without compromising on perimeter security. The intelligent, low-weld construction ensures exceptional longevity and minimal maintenance, making it a sound investment for any security-conscious organisation.
Understanding A1(SR1) Rated Security Railings

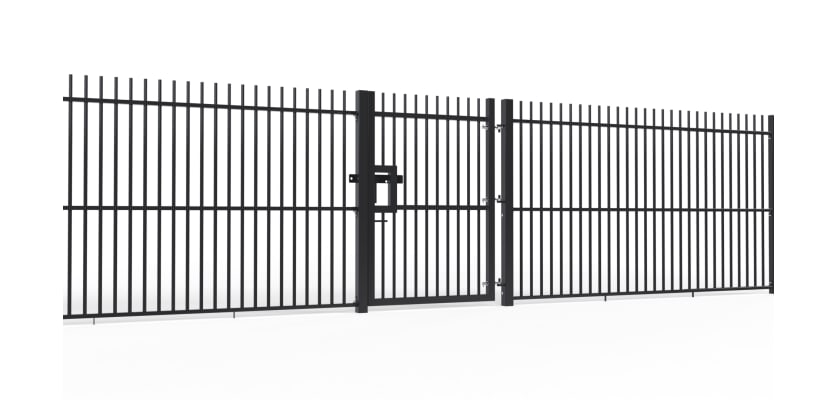

This gate kit is fully certified to LPS 1175 A1(SR1), guaranteeing a tested defence against opportunistic attacks using common hand tools. This certification provides the assurance that your access point isn't just closed, it's verifiably secured against intrusion, offering a critical 60-second delay to deter criminals. Create a complete security solution by combining this 1.8m x 1.2m EnviroProtect® Gate with the matching 1.8m high EnviroProtect® railing system.
Innovative Low to No Weld Construction
The advanced component-based assembly of the EnviroProtect® gate eliminates the vulnerabilities associated with traditional welded joints. This design prevents premature corrosion, ensuring your gate remains structurally sound and visually appealing for years. The system also simplifies logistics and allows for a more forgiving installation process on uneven ground.
Technical Specification and Design
This model provides a certified height of 1.8m and a generous clear access width of 1200mm, making it suitable for DDA-compliant routes and the passage of small equipment. The total overall width for planning is 1490mm. Strength is provided by a 60x60mm steel box section frame for the gate leaf, which is supported by robust 80x80x3mm box section steel for both the hinge and catch posts. A pre-galvanised finish is standard, with RAL Colour powder coating available for enhanced aesthetics and protection.
Installation Options
This versatile kit is supplied with posts suitable for both major installation methods. You can choose dig-in posts with a total length of 2500mm for a secure concrete foundation, or bolt-down posts with a total length of 1800mm for fixing to existing concrete surfaces, ensuring it can be adapted to your specific site conditions.
Benefits and Applications
Ideal for when a standard personnel door is too narrow, this gate provides a secure, durable, and low-maintenance solution for schools, business parks, hospitals, and utility sites that require a slightly larger yet still manageable access point. Its certified strength and quality construction provide lasting peace of mind.
Get in Touch
Ready to secure your site? For technical data sheets, quotations, and expert advice, contact our team. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect with us via Live Chat on our website.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1490mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 80x80mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| M10 X 100mm Bolts | 6 |
| M10 Shear Nuts | 6 |
| Large Twist Cleats | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
