Stainless Steel (Grade 304) Thin Door Guard 1100mm Height x 350mm Width
Product Description
Stainless Steel (Grade 304) Thin Door Guard: 1100mm Height x 350mm Width

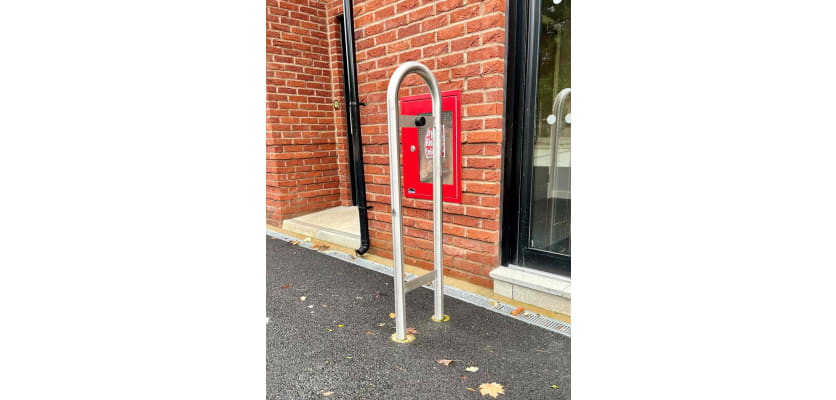

First Fence’s range of Door Guards is expertly designed to protect walls and windows from swinging doors, while also preventing damage to doors and handles. Each guard features an integrated rubber bump stop secured onto the mid tapping rail, absorbing impact before any steel-on-steel contact occurs.
The Thin Door Guard is ideal for areas where space or walkway clearance is limited. At just 350mm wide, it provides maximum protection with minimal intrusion, perfect for commercial entrances, corridors, or high-traffic pedestrian zones.
Available in both dig-in and bolt-down options, the Thin Door Guard suits a variety of installation environments.
Key Features
- Manufactured from 2mm thick Grade 304 Stainless Steel
- Slim 350mm width, ideal for restricted spaces
- 50mm x 5mm tapping rail with integrated rubber bump stop
- Removable rubber bump stop for easy replacement
- Weld-on tang bars (for dig-in) or flange plate (for bolt-down)
Installation Instructions

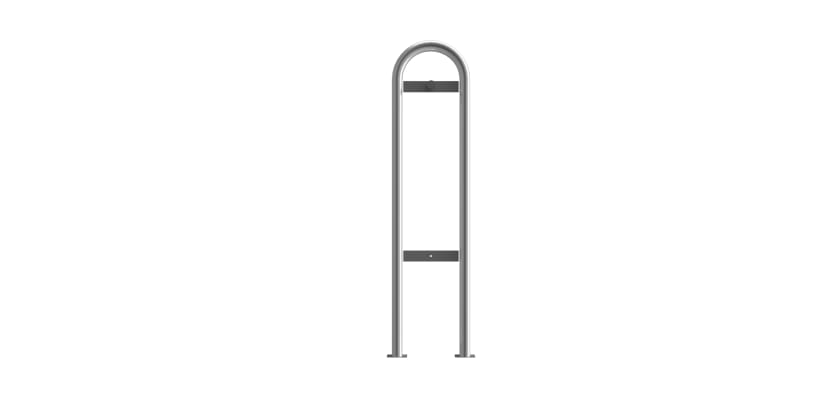

Dig-in
Ensure the ground is free from obstacles and utilities. Excavate two holes at least 300mm deep and wider than the tang bars. Position the door guard and backfill with grade C20/25 concrete, ensuring it is level and plumb.

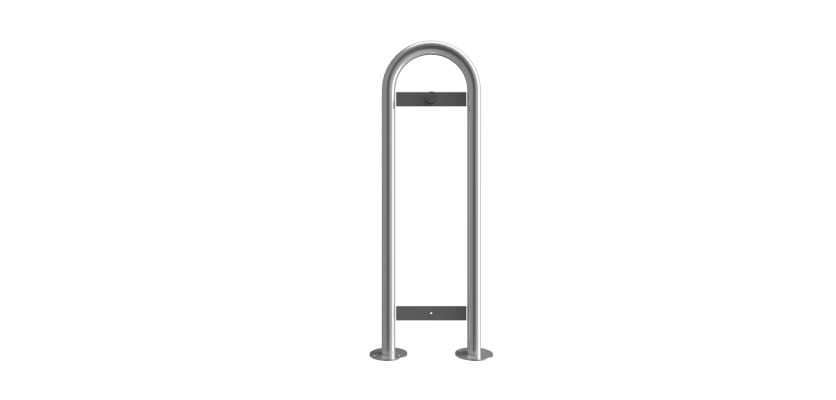

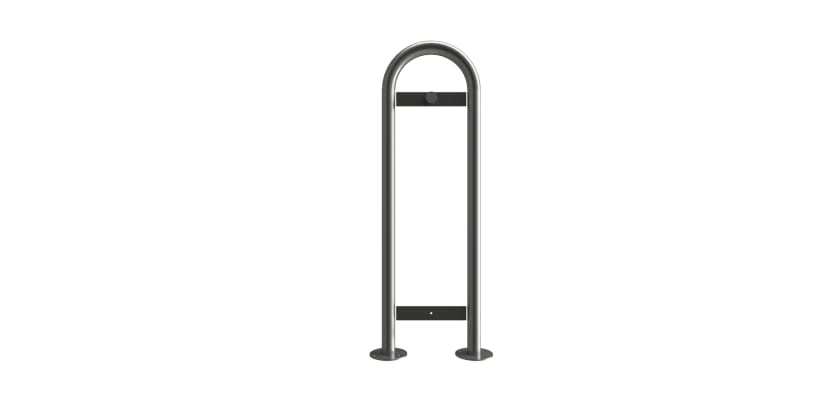

Bolt-down
Drill six holes that align with the flange plate (12mm x 100mm). Depending on your ground type, use M12 ground anchors or M12 stud and resin fixings, then fasten securely with washers and nuts.
Alternatively, let us handle the installation for you. Simply reach out to our installation team by email at installaion@firstfence.co.uk to get a quote.
Get More From First Fence
We are experts in fencing and gate systems, but that's not all. To ensure you have everything you need to finish the job, we also offer street furniture, bollards, and even site containers.
Contact Us
If you have any questions or need advice, please contact us for support. We are available by phone on 01283 512 111, email at sales@firstfence.co.uk, or via live chat.
