Height | 3000mm [Installed] |
Access Width | 3000mm |
Total Width | 3420mm |
Box Sections of Posts | [Hinge Post: 150mm x 150mm] [Catch Post: 120mm x 120mm] |
Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 1 |
Hinge Post & Clamp Bar Kit | 1 |
Catch Post & Clamp Bar Kit | 1 |
SR2 Hinges | 3 |

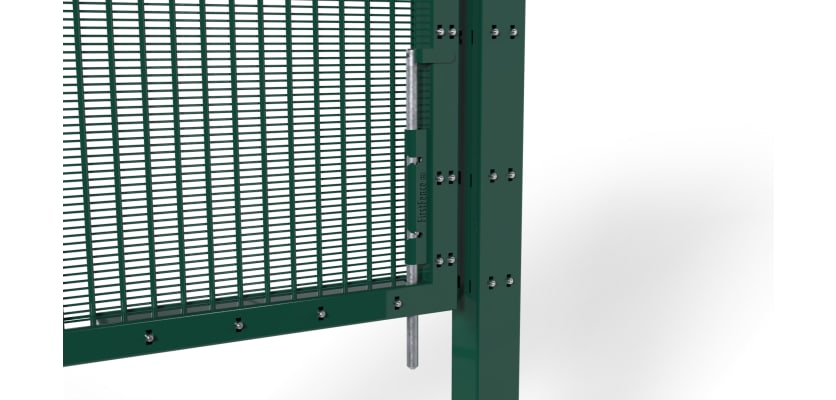

Locking Drop Bolt | 1 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
This ProFence® 2X single leaf gate offers a substantial 3.0m opening at our maximum height, providing a certified LPS 1175 B3 solution for demanding access requirements.
The combination of extreme height and certified attack resistance makes this gate a critical component in securing sites of national critical importance. It is an excellent specification for service entrances at communication satellite earth stations or major data centres, allowing access for maintenance vehicles while providing a truly formidable barrier against espionage or sabotage attempts.
It is also an ideal choice for securing the entrances to chemical plants or other industrial sites regulated under COMAH (Control of Major Accident Hazards). The gate's certified strength helps ensure site security and regulatory compliance, protecting against unauthorised access that could have severe consequences. Achieve full site compliance by installing this gate alongside the 3.0m high ProFence® 2X fence system.
This Red Book listed gate system ensures your access points are fortified to the highest standards, having been proven to resist a sustained and professional attack.

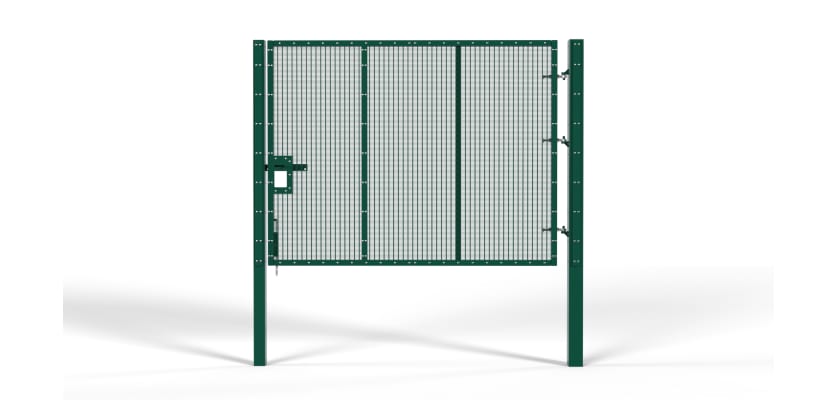

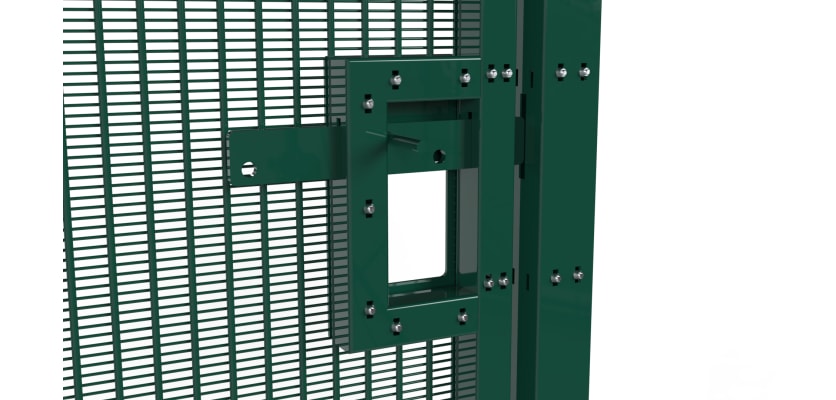

This 3.0m x 3.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit is supplied with one 3.0m wide gate leaf, a heavy-duty hinge post, a robust catch post, and three SR2-rated gate eyes. The gate is secured via a powerful central slide latch that slots firmly into the catch post, ensuring the wide leaf remains stable and secure.
The gate's construction features a dual-layer of protection: a hot-dip galvanised base and a polyester powder-coated topcoat for extreme longevity and weather resistance. The gate leaf features our MeshPro® 10, making climbing the 3.0m structure virtually impossible. All hinge fixings are high-security shear nuts, ensuring they cannot be unfastened post-installation.
The gate system is available in dig-in or bolt-down configurations. Bolt-down posts are supplied with ground anchor bolts for a secure surface fixing. For the tall dig-in posts, we advise using C20 or C25 grade concrete and recommend four bags of Post Mix per post for an unshakeable foundation that can support the gate leaf.
