Height | 2400mm [Installed] |
Access Width | 8000mm |
Total Width | 8670mm |
Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
Primary Gate Leaf | Right Hand Hung |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 2 |
Hinge Post & Clamp Bar Kit | 2 |
SR2 Hinges | 6 |
Locking Drop Bolt | 2 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge Posts] | 2 |

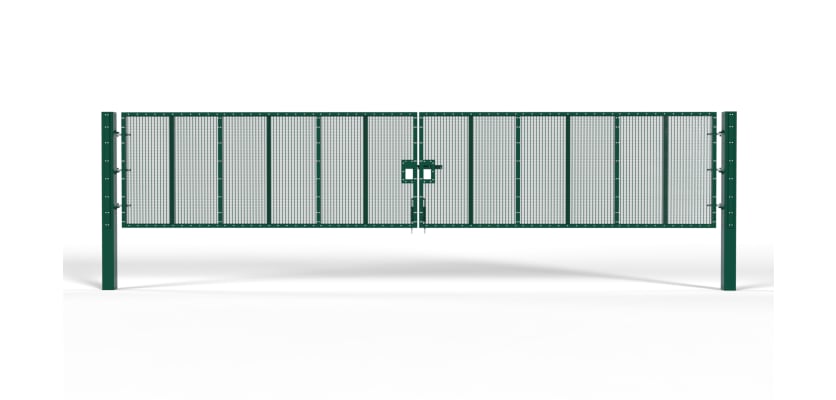

The 2.4m high ProFence® 2X SR2 (B3) Double Gate provides an exceptionally wide and secure entrance for large vehicles.
LPS 1175 B3 certification is a key requirement for securing the nation's most sensitive locations. An 8.0m wide gate is crucial for operational yards at sites of national critical importance, including airports and railway depots, allowing for the movement of large machinery and vehicles. This gate ensures that such large openings do not become a weak link in the chain of physical security.
This gate is also ideally suited for securing large-scale waste management and recycling centres. The 8.0m width is necessary for refuse vehicles and plant machinery, while the B3 rating and 2.4m height help prevent arson, theft, and unauthorised dumping, ensuring operational compliance. For end-to-end site protection, install this gate with the 2.4m high ProFence® 2X fence system.
Its security credentials are confirmed by its LPS 1175 SR2 (B3) certification and Red Book listing. This gate ensures your access point maintains the high-security rating of your perimeter.

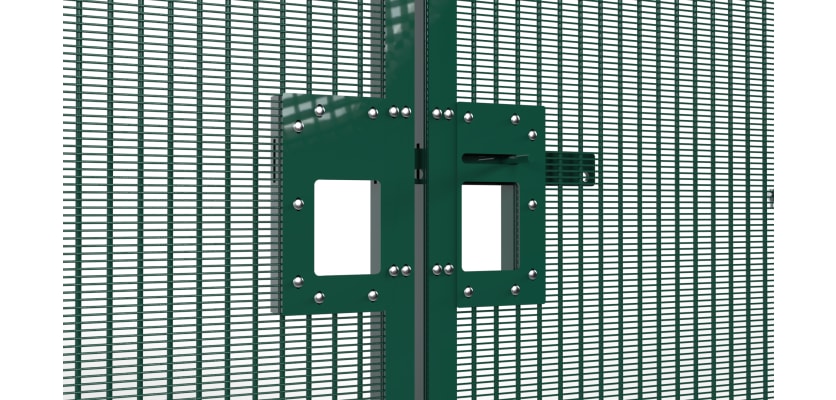

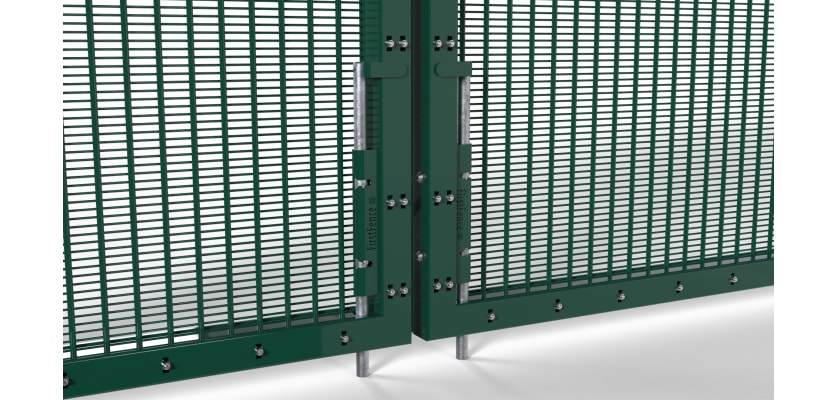

The 2.4m x 8.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is a complete solution, including two 4.0m gate leaves, two heavy-duty hinge posts, and six SR2-rated gate eyes. The gate features a robust locking system with a central sliding latch and twin ground drop bolts.
Constructed from steel, the gate is fortified with a dual-layer finish of hot-dip galvanising and polyester powder coating. The gate's MeshPro® 10 panels are designed to prevent intrusion by climbing or cutting. The hinges are secured with tamper-proof shear nuts.
To ensure a secure fit, the gate is available with either dig-in or bolt-down posts. Bolt-down kits come complete with the required ground anchor bolts. For dig-in posts, a solid foundation using five bags of Post Mix per post with C20 or C25 concrete is highly recommended.
For any technical queries, our specialist sales team is ready to help. Please call us on 01283 512 111 or email sales@firstfence.co.uk for more details.
