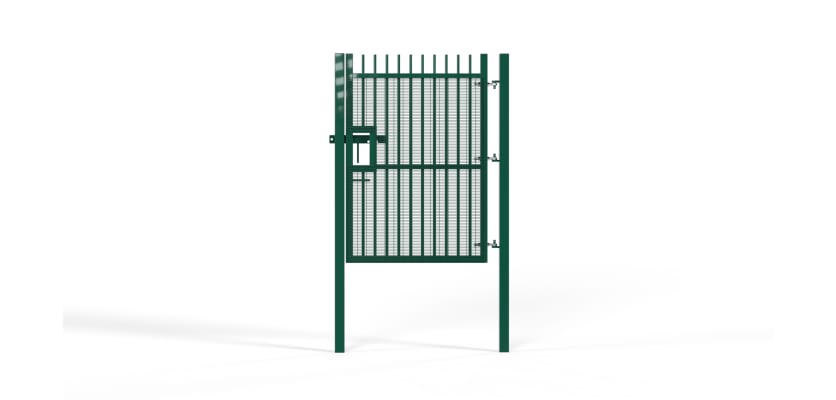

2.4m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Product Description
2.4m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
When vehicle access points demand the highest level of protection, this 2.4m high x 2.0m wide EnviroProtect® Anti-Climb gate delivers. Its tall frame and welded 358 ‘prison mesh’ infill create a powerful anti-climb and anti-cut barrier. Certified to LPS 1175 A1(SR1) and supported by an uprated hinge post, this gate offers reliable long-term performance for high-risk and sensitive sites.
Dual-Layered Protection: Certified & Anti-Climb
Independently tested and SR1-certified, the gate’s frame is proven to resist forced entry attempts with tools. Combined with the dense 358 mesh infill, which blocks climbing and withstands cutting, it provides complete reassurance against multiple intrusion tactics.
Built for Strength & Longevity
Manufactured from a 60x60mm box section frame and fully welded mesh, this gate has the rigidity and resilience needed for intensive use. Every component is pre-galvanised, ensuring maximum corrosion resistance and minimal upkeep in demanding environments.
Technical Specification
- Height: 2.4m (2400mm)
- Clear access width: 2.0m (2000mm)
- Overall installed width: 2330mm
- Leaf frame: 60x60mm box section with 358 mesh infill
- Posts: 100x100x3mm uprated hinge post & 80x80x3mm catch post
- Finish: Durable pre-galvanised steel
Flexible Installation Options
Supplied with both Bolt-Down posts (2400mm) for fixing onto solid surfaces and Dig-In posts (3100mm) for setting into concrete, this gate can be installed securely on virtually any site.
Applications and Integration

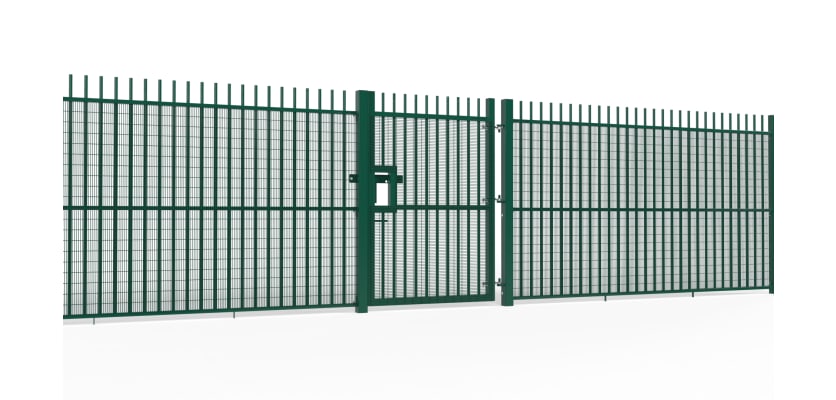

Ideal for service entrances at military facilities, energy sites, and high-security storage areas, this gate combines strength, height, and accessibility. It works seamlessly alongside the 2.4m EnviroProtect® Anti-Climb fencing range for a consistent security line.
Get in Touch
Discuss your high-security requirements with our team today. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2330mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 3 |
| M10 x 100mm Bolts | 3 |
| Drop Bolt | 1 |
| 100x100mm Ribbed Inserts | 1 |
| 80x80mm Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2330mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 3 |
| M10 x 100mm Bolts | 3 |
| Drop Bolt | 1 |
| 100x100mm Ribbed Inserts | 1 |
| 80x80mm Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Product Description
2.4m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
When vehicle access points demand the highest level of protection, this 2.4m high x 2.0m wide EnviroProtect® Anti-Climb gate delivers. Its tall frame and welded 358 ‘prison mesh’ infill create a powerful anti-climb and anti-cut barrier. Certified to LPS 1175 A1(SR1) and supported by an uprated hinge post, this gate offers reliable long-term performance for high-risk and sensitive sites.
Dual-Layered Protection: Certified & Anti-Climb
Independently tested and SR1-certified, the gate’s frame is proven to resist forced entry attempts with tools. Combined with the dense 358 mesh infill, which blocks climbing and withstands cutting, it provides complete reassurance against multiple intrusion tactics.
Built for Strength & Longevity
Manufactured from a 60x60mm box section frame and fully welded mesh, this gate has the rigidity and resilience needed for intensive use. Every component is pre-galvanised, ensuring maximum corrosion resistance and minimal upkeep in demanding environments.
Technical Specification
- Height: 2.4m (2400mm)
- Clear access width: 2.0m (2000mm)
- Overall installed width: 2330mm
- Leaf frame: 60x60mm box section with 358 mesh infill
- Posts: 100x100x3mm uprated hinge post & 80x80x3mm catch post
- Finish: Durable pre-galvanised steel
Flexible Installation Options
Supplied with both Bolt-Down posts (2400mm) for fixing onto solid surfaces and Dig-In posts (3100mm) for setting into concrete, this gate can be installed securely on virtually any site.
Applications and Integration
Ideal for service entrances at military facilities, energy sites, and high-security storage areas, this gate combines strength, height, and accessibility. It works seamlessly alongside the 2.4m EnviroProtect® Anti-Climb fencing range for a consistent security line.
Get in Touch
Discuss your high-security requirements with our team today. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk.
