2.0m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description
2.0m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Gate Kit

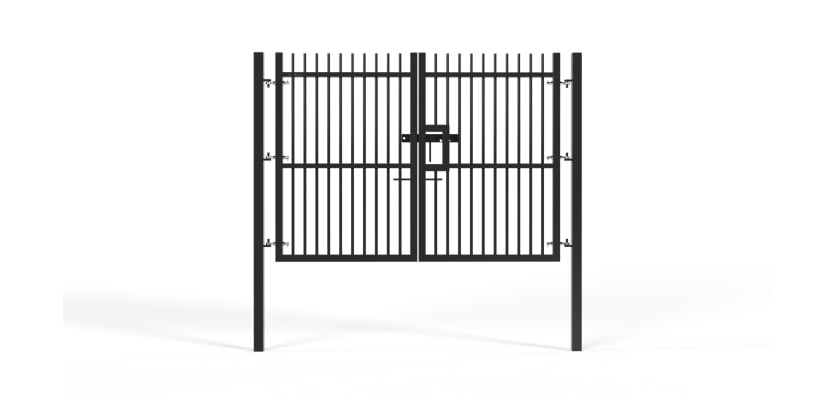

The EnviroProtect® Double Leaf Gate Kit (3.0m wide x 2.0m high) combines a generous clear span with a certified anti-climb height, making it the ideal choice for securing primary vehicle entrances. Its twin-leaf design offers flexibility for daily use, while certification to LPS 1175 A1 (SR1) guarantees proven resistance against attack. Engineered with low-weld construction, this gate is designed for long-lasting performance with minimal upkeep, even in demanding environments.
Our EnviroProtect gates are designed to integrate seamlessly with EnviroProtect fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
A1 (SR1) Certified Protection
Independently tested to the LPS 1175 A1 (SR1) standard, this gate withstands a sustained one-minute attack using everyday hand tools. This level of resistance makes it a dependable deterrent against opportunistic intruders, ensuring your perimeter meets strict security and insurance requirements.
Smarter Low-to-No Weld Construction
The EnviroProtect® system eliminates traditional weak points by replacing welds with high-strength mechanical fixings. This innovation improves corrosion resistance and durability, delivering a longer service life and lower maintenance costs compared to fully welded alternatives. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Details
- Height: 2.0m (certified)
- Clear access width: 3000mm (3.0m)
- Overall width (inc. posts): 3430mm
- Frame: 60 x 60mm steel box section
- Hinge posts: 80 x 80 x 3mm heavy-duty steel

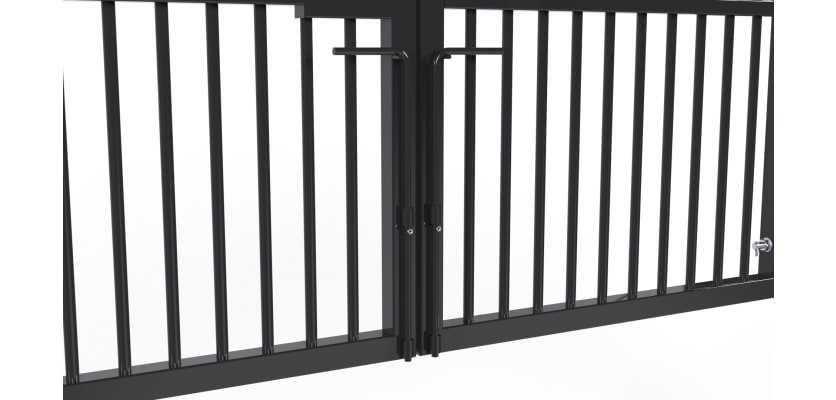

- Leaf operation: One leaf secured with a drop bolt; one active leaf for daily use
- Finish: Pre-galvanised steel
Installation Options
Supplied with posts for both installation methods:
- 2700mm dig-in posts: set into new concrete foundations for maximum strength
- 2000mm base-plated posts: bolt down directly onto existing hard surfaces
Benefits & Applications
With its increased 2.0m height and 3.0m clear width, this gate is perfect for sites requiring both a strong visual deterrent and flexible access. Ideal for:
- Industrial estates
- Data centres
- Commercial depots
- High-security service entrances
Get in Touch
Ready to secure your site? Contact our team for technical data sheets, quotations, and expert advice. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect with us via Live Chat on our website.
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 2000mm [Bolt Down], 2700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
