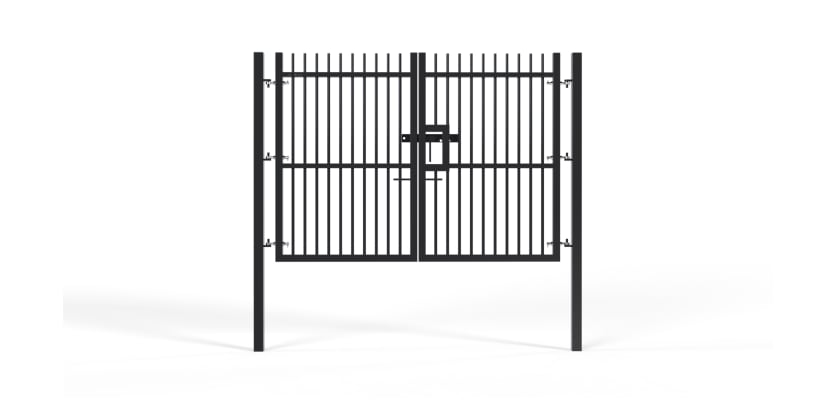

1.8m High x 2.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description
1.8m High x 2.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Gate Kit
The EnviroProtect® Double Leaf Gate Kit is designed for wider access points where both security and flexibility are essential. Standing 1.8m high with a 2.0m clear opening, its twin-leaf design makes it ideal for managing access for both vehicles and groups of people. Like the full EnviroProtect® range, this gate is independently tested and certified to LPS 1175 A1 (SR1), ensuring reliable perimeter protection backed by rigorous security standards.
Why Choose A1 (SR1) Rated Security?
The LPS 1175 A1 (SR1) rating proves this gate’s ability to resist a sustained, one-minute attack from opportunistic intruders using everyday hand tools. This certification assures that your site, whether commercial, industrial, or educational, is protected by a system designed and tested to perform when it matters most.
Smarter, Stronger Construction
Our low-to-no weld design replaces traditional welded joints with high-strength mechanical fixings, eliminating common weak points and reducing the risk of corrosion. This not only enhances durability but also lowers long-term maintenance costs, giving you a gate system that’s built to go the distance.
Technical Details
- Height: 1.8m (certified)
- Clear access width: 2000mm (2.0m)
- Overall width (inc. posts): 2430mm
- Frame: 60 x 60mm steel box section
- Hinge posts: 80 x 80 x 3mm heavy-duty steel

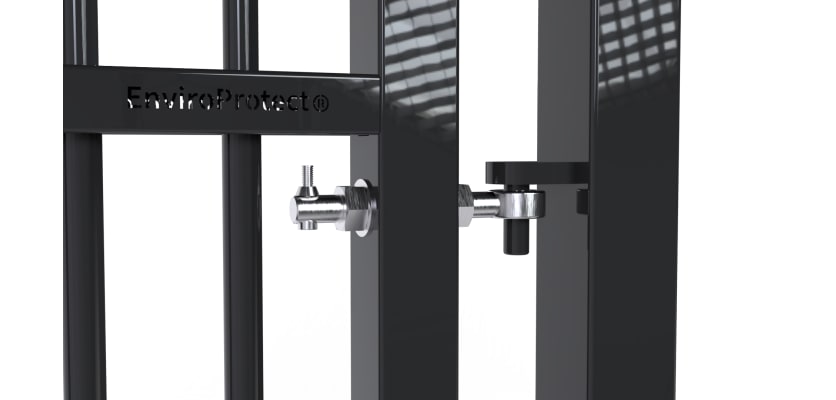

- Leaf operation: one leaf secured with a drop bolt; one active leaf for daily use
- Finish: Pre-galvanised steel
Installation Options
Supplied with posts for both methods:
- Base-plated posts (1800mm): bolt down onto existing concrete
- Dig-in posts (2500mm): set into new concrete foundations
Benefits & Applications
The double leaf configuration minimises swing space while maximising flexibility. Open one leaf for pedestrian access, or both for vehicle entry. Ideal for:
- Car parks
- Commercial yards
- School service areas
- Industrial sites
Get in Touch
For expert advice, a detailed quotation, or to discuss your specific site requirements, please contact our security specialists. We are here to help you specify the perfect solution for your perimeter. You can reach us by phone on 01283 512 111, by email at sales@firstfence.co.uk, or use the Live Chat feature available on our website during business hours.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 80x80mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 2 |
| 80x80mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 80x80mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 2 |
| 80x80mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
