ProFence® 2X SR2 (B3) LPS 1175 2.0m High Corner Post Kit
Product Description
ProFence® 2X SR2 (B3) LPS 1175 2.0m High Corner Post Kit
Certified Strength at Every Corner
The ProFence® 2X SR2 (B3) Corner Post Kit ensures that security isn’t compromised at directional changes in the fence line. Designed for use with 2.0m high panels and certified to LPS 1175 Issue 8, Security Rating B3, this kit provides the same tested resistance to forced entry at both internal and external corners, keeping the entire perimeter consistent and secure.
Robust Steel Construction

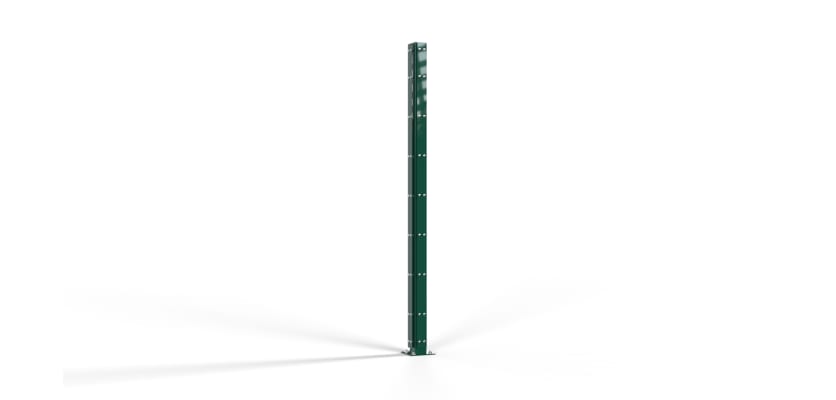

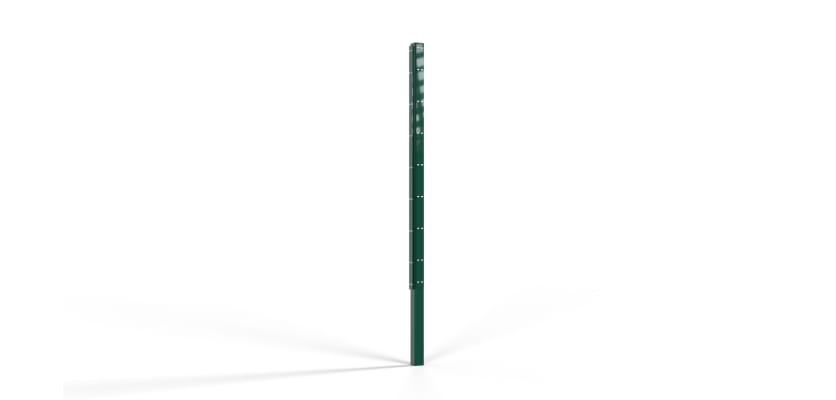

Manufactured from 80mm x 80mm galvanised steel box section, the corner post delivers the stability and durability needed for angular transitions in high-security fencing systems. Suitable for both dig-in and bolt-down installations, it adapts easily to varied ground conditions and project requirements.
Dual Clamp Bar System

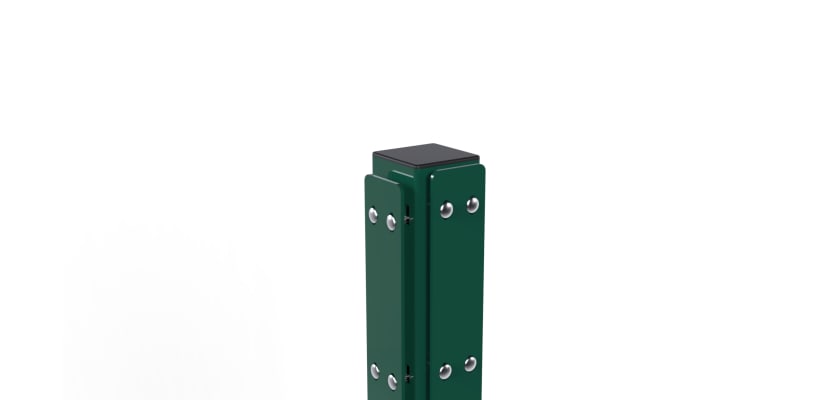

To ensure panels are securely fixed on both sides of the corner, the kit is supplied with two 80mm x 5mm galvanised clamp bars. Featuring side-by-side fixings in line with the wider ProFence® system, this method guarantees excellent rigidity, tamper resistance, and retention of the fence’s B3-certified performance.
Seamless Integration with ProFence® Panels
Whether used on internal or external corners, this kit integrates smoothly with 2.0m high ProFence® 2X fencing panels, ensuring there’s no compromise in strength, alignment, or appearance at changes in direction. The result is a fence line that remains both secure and visually consistent from start to finish.
Learn More About LPS 1175
For additional insight into the LPS 1175 standard and guidance in selecting the right security solution for your project, visit our LPS 1175 blog.
Get Expert Advice
Planning a fence line with corners or directional changes? Our specialists are here to help. Contact us on 01283 512 111 or via live chat for full technical details, layout support, and advice on integrating LPS 1175-certified security systems.
Specifications & Downloads
| Height | 2000mm [Installed] |
| Box Section of Posts | 80 x 80mm |
| Post Type | Dig In or Bolt Down |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC colours | Green and Black as standard, Blue, Red, Grey and Yellow available on request |
| Compliant To | ISO 1461 [Galvanising] / BS EN 13436 [Powder Coating] |
What's Included
| Name | Quantity |
|---|---|
| ProFence® 2X Mesh Fencing Post [80X80X2.5mm] | 1 |
| ProFence® 2X Mesh Fencing Clamp Bar [80x5mm x 1950mm] | 2 |
| ProFence® 2X Mesh Fencing Ribbed Insert [80x80mm] | 1 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M8x110mm] | 40 |
| ProFence® 2X Galvanised Snap Off Nut [M8] | 40 |
| ProFence® M16 x 125mm Ground Anchor [Bolt Down Option] | 4 |
Specifications & Downloads
| Height | 2000mm [Installed] |
| Box Section of Posts | 80 x 80mm |
| Post Type | Dig In or Bolt Down |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC colours | Green and Black as standard, Blue, Red, Grey and Yellow available on request |
| Compliant To | ISO 1461 [Galvanising] / BS EN 13436 [Powder Coating] |
What's Included
| Name | Quantity |
|---|---|
| ProFence® 2X Mesh Fencing Post [80X80X2.5mm] | 1 |
| ProFence® 2X Mesh Fencing Clamp Bar [80x5mm x 1950mm] | 2 |
| ProFence® 2X Mesh Fencing Ribbed Insert [80x80mm] | 1 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M8x110mm] | 40 |
| ProFence® 2X Galvanised Snap Off Nut [M8] | 40 |
| ProFence® M16 x 125mm Ground Anchor [Bolt Down Option] | 4 |
