Galvanised Mitre Top Bollard
Product Description

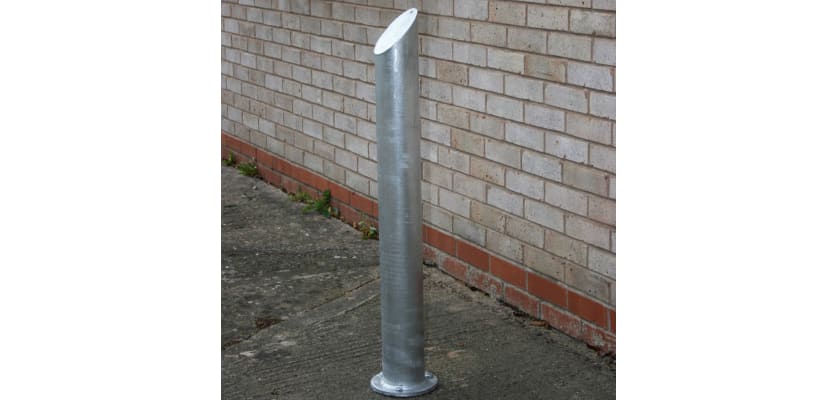

Galvanised Mitre Top Bollard
The Galvanised Mitre Top Bollard is a robust, smartly designed security post ideal for protecting property, defining boundaries, and guiding traffic in industrial, commercial, and public environments. Its 45° mitre-cut top provides a clean, contemporary appearance suited to modern site layouts.
Durable Construction
Manufactured from high-quality Circular Hollow Section (CHS) steel, these bollards are available in 3mm or 5mm wall thickness to suit different security requirements. Each unit is fully galvanised to ISO 1461 standards, ensuring outstanding corrosion resistance and long-term performance in harsh outdoor conditions.
Architectural Design & Practical Use
The 45° mitre top offers an attractive, architectural finish suitable for office walkways, car parks, loading bays, retail parks, and public spaces. These bollards deliver reliable protection for building perimeters, shutter entrances, and access points while contributing to a neat, professional site aesthetic.
Size Options
Bollards are available in diameters ranging from 76mm to 193mm, allowing you to match the level of protection to your application.
Smaller diameters: Ideal for pedestrian areas and decorative use.
Larger diameters: Provide greater resistance to vehicle impact.
Installation Options
Dig In
Designed for in-ground installation, this option includes weld-on tang bars for secure fixing. A 400mm in-ground depth is recommended. Install by excavating, positioning the bollard, and backfilling with grade C20/25 concrete to create a stable, level finish.
Bolt Down
Best for existing concrete or asphalt surfaces. This version features a base plate for surface mounting. Install by drilling 12mm diameter holes to a depth of 100mm, then fixing with M12 ground anchors (or M12 studding and resin for asphalt). Align, secure with washers and nuts, and tighten for a firm hold.
Low Maintenance & Long-Term Reliability
Engineered for durability, these bollards require minimal upkeep. The galvanised coating protects against rust, abrasion, and weather exposure, making it suitable for high-traffic or exposed environments. They provide long-lasting security and a consistent, professional appearance, whether installed individually or in a coordinated row.
Contact Us
Have questions about any of our Bollards? Then please get in touch. Our helpful and friendly sales team are here to assist and can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or through our online live chat system.
Specifications & Downloads
| Height | 1000mm |
| Diameter | Ø76, Ø90, Ø101, Ø114, Ø127, Ø139, Ø152, Ø168, Ø193 |
| Weight | 7kg, 9kg, 10kg, 12kg, 13kg, and 23kg |
| Material | Galvanised Steel |
| Finish | Galvanised or Black |
| Wall Thickness | 3mm Wall Thickness (76mm - 127mm diameter bollards) |
| Wall Thickness | 5mm Wall Thickness (139mm - 193mm diameter bollards) |
Specifications & Downloads
| Height | 1000mm |
| Diameter | Ø76, Ø90, Ø101, Ø114, Ø127, Ø139, Ø152, Ø168, Ø193 |
| Weight | 7kg, 9kg, 10kg, 12kg, 13kg, and 23kg |
| Material | Galvanised Steel |
| Finish | Galvanised or Black |
| Wall Thickness | 3mm Wall Thickness (76mm - 127mm diameter bollards) |
| Wall Thickness | 5mm Wall Thickness (139mm - 193mm diameter bollards) |
