BULL17OMI Sliding Gate Motor - Up to 1700kg
Product Description

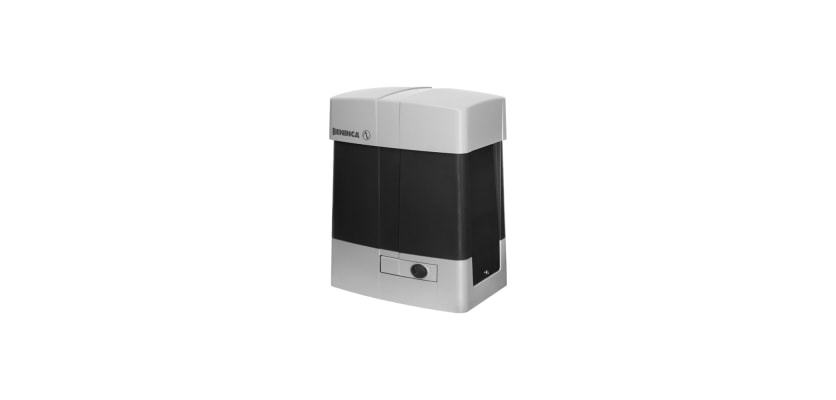

BULL17OMI Sliding Gate Motor - Up to 1700kg
Sliding gate motors are tools designed to automate the opening and closing of sliding gates. Widely embraced in residential, commercial, and industrial environments, they offer unmatched convenience, security, and user-friendliness. Moreover, they enhance residential security by regulating access to driveways and entrances.
Automated gates, powered by motors, elevate security measures by limiting entry to unauthorised individuals and vehicles. They can be seamlessly integrated with extra functionalities like intercom systems, keypad access, or remote monitoring capabilities for added convenience and surveillance.
High-quality sliding gate motors are built to withstand harsh weather conditions and heavy use, ensuring long-term durability and reliability with minimal maintenance requirements.
The BULL17OMI Sliding Gate Motor is ideal for domestic and light commercial sliding gates up to 1700kg.
Features
The BULL17OMI Sliding Gate Motor is a 230 Vac motor designed for gates weighing up to 1700 kg.
Ideal for commercial and intensive use, it features an integrated control unit, virtual encoder, and inverter.
The main control unit, located at the top of the motor, utilizes an integrated inverter to calculate the motor's position based on current intensity measurements (virtual encoder).
Inverter technology enables gradual speed adjustments during both acceleration and deceleration, allowing for precise control of gate movement phases and enhanced anti-crushing safety.
Oil lubrication ensures maximum longevity of the reducer, with a specially formulated oil that performs exceptionally well even at low temperatures, reducing mechanical wear on components.
The virtual encoder facilitates effective management of slowing-down phases, movement tracking (STC system), and torque management based on the gate's position, ensuring maximum safety.
Speed can be adjusted from 10 to 24 m/min depending on the weight of the gate.
A safety sensor cuts power to the motor during release operations, and the receiver ONE.2WI is included.
Additionally, a metal release lever is provided for convenience.
First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates such as palisade, mesh, railings, and specialised or custom options.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Dimensions | 395mm x 316mm x 300mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 7 A |
| Maximum Thrust | 1880 N |
| Opening Speed | 24 m/min |
| Duty Cycle | 60% |
| Protection Level | IP44 |
| Inbuilt Encoder | Virtual |
| Operating Temperature | -20°C/+50°C |
| Max Gate Weight | 1700kg |
| Gate Usage | Light Commercial |
| Compatible Control Panel | In-built |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| CP.BULLOMI [Control Panel] | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
