Apollo® 3.0m High x 4.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Product Description

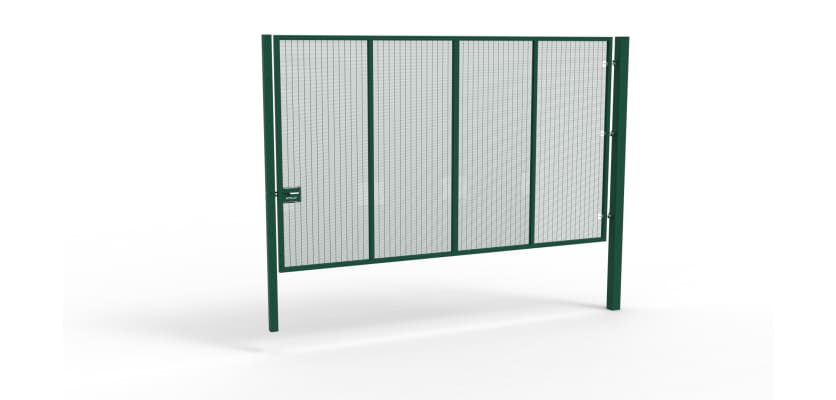

Apollo® 3.0m High x 4.5m Wide 358 Prison Mesh Single Leaf Gate Kit
The Apollo® 3.0m high x 4.5m wide 358 Prison Mesh Single Leaf Gate Kit provides a secure, durable, and easy-to-install access solution for both public and private locations. These gates feature a robust 358 prison mesh infill and stand at 3.0m in height, serving as a strong physical and visual deterrent to intruders.
Key Features & Benefits
The Apollo® 3.0m high x 4.5m wide 358 Prison Mesh Single Leaf Gate Kit provides a secure, durable, and easy-to-install access solution for both public and private locations. These gates feature a robust 358 prison mesh infill and stand at 3.0m in height, serving as a strong physical and visual deterrent to intruders.
High Quality Steel Construction
Manufactured from high-quality steel, the Apollo® 358 Gate is built to withstand tough environments. The gate frame features precisely mitred corners for increased strength and a clean, professional appearance.
Each gate is coated with a Polyester Powder Coating, offering long-lasting resistance against corrosion and rust. Available in a variety of colours, the finish can be tailored to match existing fencing or create a striking standalone access point.
Triple Hinge Design for Enhanced Safety
This 3.0m x 4.5m single-leaf gate includes a triple-hinge setup to distribute weight evenly, reducing strain and extending the life of the hinges. The design also acts as a safeguard, ensuring the gate leaf remains in place even in the rare event of a hinge failure.
Modular and Versatile Construction
Designed for flexibility, this gate kit features a universal gate leaf suitable for either left- or right-hand hanging. It also includes a modular locking system—with a standard lockable slider that can be easily upgraded to a Gatemaster lock without removing the gate.
358 Prison Mesh Infill
The 358 mesh (commonly referred to as prison mesh) provides excellent strength while maintaining visibility. Its tightly spaced steel wires prevent the formation of footholds or handholds—making it extremely difficult to climb.
Ground Surface Installation Options
- Bolt Down Posts: Suitable for hard surfaces like concrete. Each post requires 4 x M16 x 125mm ground anchor bolts.
- Dig In Posts: For installation in soft ground using post mix. (Recommended quantities provided upon ordering.)
Locking Drop Bolt
Each gate is supplied with a locking drop bolt to hold the gate securely in the open position when needed, or to enhance security when the gate is closed.
What's Included
Each Apollo® 3.0m x 4.5m Single Leaf Gate Kit includes:
- 1 x Hinge Post
- 1 x Catch Post
- 1 x Gate Leaf with 358 Mesh Infill
- 1 x Slider Kit
- 1 x Plate Kit
- 3 x Adjustable Gate Eyes
- 1 x Locking Drop Bolt
- Plastic Inserts for Gate Posts
Compatible Fencing Systems
This gate is suitable for use with a range of mesh fencing types, including V mesh, 868, and 656 mesh systems
Get In Touch
Our friendly and helpful sales team are here to help with any questions you may have regarding these Mesh security gates, or any of our other fencing and security solutions. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or through our online live chat system.
Specifications & Downloads
| Height Above Ground | 3000mm |
| Access Width | 4500mm |
| Total Width | 4950mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
| 3.0m Clamp Bar [30x5mm @ 3030mm] | 2 |
| M8 x 90mm Nuts and Bolts | 2 |
Specifications & Downloads
| Height Above Ground | 3000mm |
| Access Width | 4500mm |
| Total Width | 4950mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
| 3.0m Clamp Bar [30x5mm @ 3030mm] | 2 |
| M8 x 90mm Nuts and Bolts | 2 |
