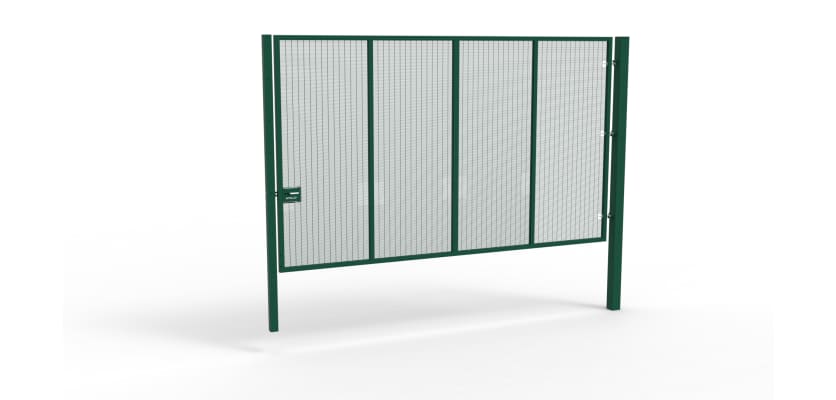

Apollo® 3.0m High x 4.0m Wide 358 Prison Mesh Single Leaf Gate Kit

Apollo® 3.0m High x 4.0m Wide 358 Prison Mesh Single Leaf Gate Kit

The Apollo® 3.0m x 4.0m Single Leaf Gate Kit has been designed to provide a secure, safe and hard-wearing access solution. Designed to integrate seamlessly with 3.0m high mesh fencing, this gate offers excellent protection for commercial, industrial, and public access points, while allowing visibility for surveillance systems such as CCTV.

The strong 358 mesh infill combined with the 3.0m height provides a solid deterrent against intrusion or vandalism, making them ideal for sites requiring a higher level of security.

Key Features

High Quality Steel Construction

Constructed from high-quality steel, this gate features a mitred frame for added strength and a clean finish free from sharp edges. Every gate is treated with a professionally applied Polyester powder coating (PPC), providing exceptional resistance to weathering, corrosion, and rust. These coatings are available in a range of colours, allowing you to create a bright and colourful access point or have it blend in with the rest of your fencing perimeter.

Triple Hinge System for Safety and Longevity

To ensure long-term durability and user safety, the 3.0m x 4.0m Apollo 358 mesh gates are fitted with a three-hinge design. This setup helps to evenly distribute the gate’s weight over 3 points, rather than 2 on a traditional gate, reducing stress on individual hinges. The additional hinge also helps to prevent the gate leaf from falling in the unlikely event of a single hinge failure.

Flexible, Modular Installation

The Apollo® 3.0m x 4.0m gate is universally handed, allowing it to be installed to open left or right depending on site requirements. As standard, each gate is supplied with a standard sliding latch, which can easily be upgraded to a Gatemaster locking system even after installation, thanks to its modular design.

358 Mesh Infill

Also known as "prison mesh", the 358 infill is designed to prevent climbing or breaching. With narrow wire spacing that offers maximum strength and visibility. The narrow spacing between the wires also prevents items from being passed through the gate, making this mesh ideal for environments where both security and surveillance are priorities.

Dig In and Bolt Down Posts Available

Choose from two post types depending on your installation surface:

• Bolt Down Posts: Ideal for concrete or other hard surfaces. Requires 4 x M16 x 125mm ground anchor bolts per post.
• Dig In Posts: Best suited for soil or soft ground. Secured in place using post mix (Please see recommended quantities when ordering).

Locking Drop Bolt Included

A locking drop bolt is supplied as standard to secure the gate when open or to add an extra layer of security when closed.

Vehicle Access Gate For Various Applications

With its 4.0m width, this single leaf gate provides sufficient clearance for vehicles such as cars, vans, and forklifts, making it ideal for industrial sites, school perimeters, depots, and secure compounds. The clear-view mesh design allows for visibility without compromising safety or security.

What's Included

The Apollo® 3.0m x 4.0m Single Leaf Gate Kit includes:

• 1 x Gate Leaf with 358 Mesh Infill
• 1 x Hinge Post
• 1 x Catch Post
• 1 x Lockable Slider Kit
• 1 x Plate Kit
• 3 x Adjustable Gate Eyes
• 1 x Locking Drop Bolt
• Plastic Post Inserts

Compatible with Mesh Fencing

This gate integrates easily with a variety of fencing systems, including V Mesh, 868, and 656 Twin Wire Mesh

Contact Us

Should you have any questions about this Apollo range of mesh security gates, or about any of our other security fencing and gate ranges, then please don’t hesitate to get in touch. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or through our online live chat system.
