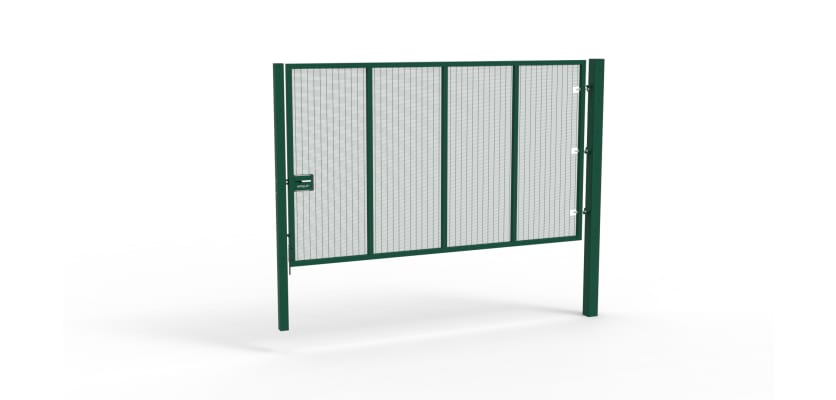

Apollo® 2.4m High x 4.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Product Description
Apollo® 2.4m High x 4.5m Wide 358 Prison Mesh Single Leaf Gate Kit
Designed for high-security applications, this 2.4m high x 4.5m wide Single Leaf Prison Mesh Gate provides a robust and secure access point for vehicles. The narrow mesh apertures and strong welded construction offer enhanced resistance to intrusion, while still maintaining excellent visibility. Ideal for locations such as police stations, commercial premises, schools, and correctional facilities.
Key Features & Benefits
High-Security Mesh Design
The gate is constructed using 358 Prison Mesh, renowned for its anti-climb and anti-cut properties. With narrow apertures and durable 4mm horizontal and vertical wires, the mesh:
- Prevents climbing attempts and unauthorised access
- Resists cutting with standard tools
- Stops objects from being passed through
- Maintains visibility for security patrols and surveillance systems
This makes it one of the most secure mesh types available on the market.
Durable Polyester Powder Coating
To extend the gate’s lifespan and improve its resilience, a polyester powder coating is applied as standard. This coating helps protect the steel from:
- Corrosion caused by exposure to the elements
- General wear and tear
- Vandalism and surface damage
Available in a selection of colours, this finish can be tailored to match corporate branding or blend with its surroundings.
Installation Versatility: Ground Suitability
The gate can be installed on a variety of surfaces. Your choice of gate posts will depend on the ground type:
- Hard Ground: Use Bolt Down Posts
- Soft Ground: Use Dig-In Posts
This flexibility ensures secure and stable installation regardless of terrain.
Please note that post mix and anchor bolts are not included and should be purchased separately, depending on your installation type.
Contact Us
If you do have any questions, please do not hesitate to speak to one of our sales team by calling 01283 512 111 or by using the online chat facility.
Specifications & Downloads
| Height Above Ground | 2400mm |
| Access Width | 4500mm |
| Total Width | 4950mm |
| Hinge Post Size | 200mm x 200mm |
| Hinge Gap | 120mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Post Type | Square Hollow Section |
| Gate Type | Single Leaf |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 358 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Posts | 2 |
| HD Unislide Single Slider Padlockable Gate Kit | 1 |
| HD Apollo Plate Kit | 1 |
| HD Auto Locking Drop Bolt | 1 |
| 2.4m Clamp Bar [30x5mm @ 2430mm] | 2 |
| M8 x 100mm Nuts and Bolts | 18 |
