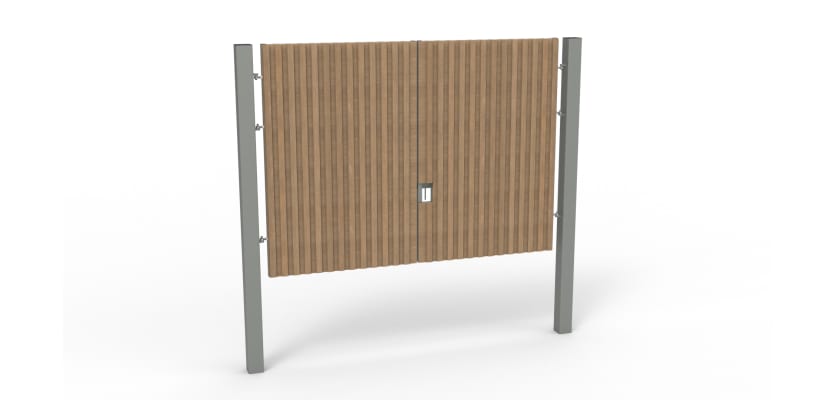

3.0m High x 3.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
3.0m High x 3.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
Compact yet uncompromising, the AcoustiGuard® SR1 Gate Kit at 3.0m high and 3.0m wide is designed to secure standard vehicle access points at sensitive or high-value locations. Its full 3.0m anti-climb height delivers a strong visual and physical deterrent, while the 3.0m opening provides smooth entry for cars, vans, and light commercial vehicles. Delivered to the site as a single, pre-assembled unit, the gate allows for straightforward installation without lengthy assembly, making it an efficient choice for research facilities, substations, estates, and other operations requiring dependable security and acoustic control.
LPS 1175 Certification
The LPS 1175 SR1 (A1) standard is internationally recognised as a benchmark in physical security. A gate carrying this approval signals that the site is professionally protected and has been independently tested to resist common forms of attack. Beyond the technical rating, the certification itself serves as a deterrent, a visible assurance to potential intruders that breaching this perimeter will not be easy. This proactive element of security is one of the key benefits of choosing an LPS 1175 certified solution.
Tested to BS EN 1794-1 and BS EN 1794-2
For many sites, both structural integrity and acoustic management are essential. Built in accordance with BS EN 1794-2, this gate is engineered to remain reliable under demanding conditions, with reinforced posts and a galvanised steel frame ensuring durability. Meanwhile, its BS EN 1794-1 compliant acoustic timber frontage helps reduce noise transfer, a vital feature for locations near residential or commercial neighbours, or where noise regulations must be observed. This dual compliance ensures the gate is not only strong and secure but also environmentally responsible.
Technical Details
- Installed height: 3000mm
- Clear opening: 3000mm for car and van access
- Support posts: 120x120x4mm box section, designed for stability
- Gate configuration: right-hand hung primary leaf (viewed externally)
- Frame: hot-dip galvanised to ISO 1461 for superior corrosion resistance
- Acoustic surface: pressure-treated Tanalised UC4 timber cladding
- Delivery: supplied fully assembled for rapid and precise installation
Contact Us
If you have any questions or need more information about our AcoustiGuard® range, please contact us. The friendly First Fence team are available by phone on 01283 512 111 or email sales@firstfence.co.uk. You can also reach out via our live chat service for more information.
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Box Sections of Posts | 120x120x4mm |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Hinge Post | 2 |
| SR1 Adjustable Gate Eyes | 6 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 4 |
| Drop Bolt | 2 |
| AcoustiGuard® Absorb Timber Infill | 2 |
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Box Sections of Posts | 120x120x4mm |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Hinge Post | 2 |
| SR1 Adjustable Gate Eyes | 6 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 4 |
| Drop Bolt | 2 |
| AcoustiGuard® Absorb Timber Infill | 2 |
