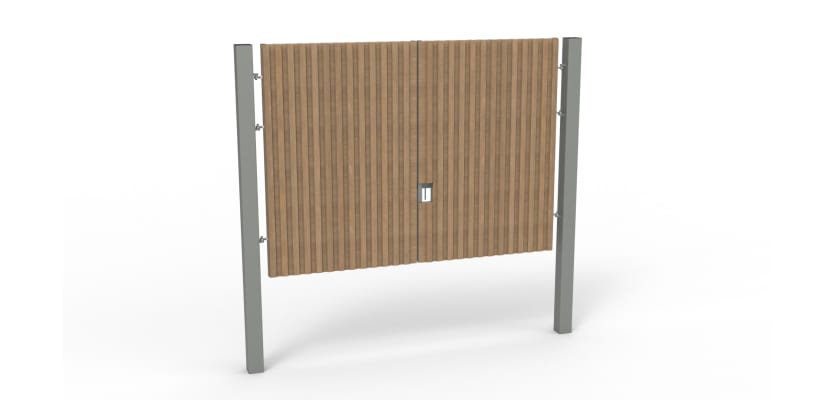

1.8m High x 6.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description
1.8m High x 6.0m Wide AcoustiGuard® SR1 (A1) LPS 1175 Double Leaf Gate Kit
For sites that demand extra-large access, the AcoustiGuard® SR1 Double Leaf Gate Kit (1.8m x 6.0m) delivers maximum width without sacrificing security or noise control. With a huge 6.0m clear opening, this system is purpose-built for articulated trucks, heavy plant, and oversized vehicles. At 1.8m high, it provides a strong physical barrier while maintaining efficient vehicle flow. Supplied fully assembled, the gate can be craned directly into place for rapid installation. It’s a trusted solution for industrial estates, distribution centres, and infrastructure projects where certified protection and acoustic screening must work seamlessly together.
Certified to LPS 1175
Security is independently verified with LPS 1175 SR1 (A1) approval, awarded by the Loss Prevention Certification Board (LPCB). To achieve this rating, the gate must endure a physical attack lasting at least one minute using a defined set of everyday tools, such as screwdrivers, spanners, or small cutters. This level of resistance demonstrates the product’s ability to deter opportunistic attempts at intrusion, giving site operators confidence that their perimeter is reinforced with a recognised, certified standard.
Built to BS EN 1794 Standards

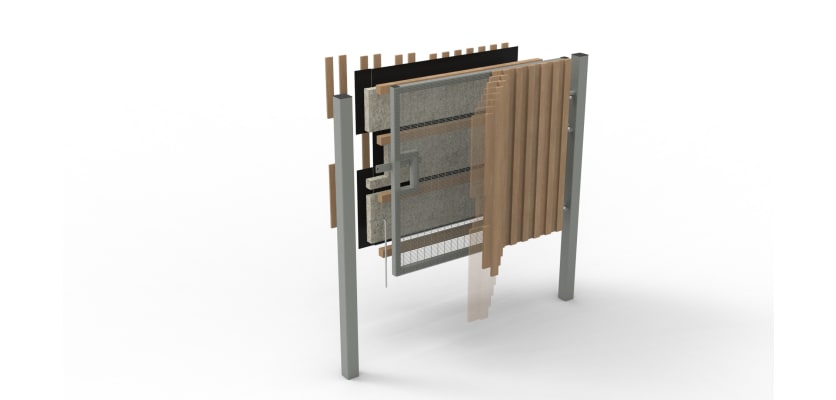

In addition to security, this gate meets the acoustic and structural requirements set out in BS EN 1794-1 and BS EN 1794-2. The timber-clad face, manufactured from UC4 treated softwood, helps to absorb and disrupt sound waves, making it effective for reducing both outgoing and incoming noise, particularly valuable for sites located close to residential or noise-sensitive areas. Structurally, the design complies with BS EN 1794-2, ensuring it can safely withstand environmental stresses such as wind loading. Reinforced with a galvanised steel framework and heavy-duty posts, the system is built for long-term strength and durability.
Technical Details
- Kit Type: Delivered pre-assembled for quick crane installation.
- Height: 1800mm (1.8m) installed.
- Width: 6000mm (6.0m) opening for oversized vehicles and machinery.
- Posts: Extra-strong 150x150x5mm box section posts.
- Leaf Setup: Standard right-hand hung (viewed from outside).
- Materials: Hot dip galvanised steel frame (ISO 1461 compliant) with pressure-treated UC4 timber cladding for acoustic control.
- Finish: Galvanised-only protection for long-lasting corrosion resistance.
- Certification: Independently approved to LPS 1175 SR1 (A1).
Contact Us
If you have any questions about our AcoustiGuard® range, please don't hesitate to reach out to us. Our friendly First Fence team are available by phone on 01283 512 111 or by email at sales@firstfence.co.uk. You can also connect via our live chat service for advice.
Specifications & Downloads
| Kit Type | Assembled [Fully Assembled for Lifting] |
| Height | 1800mm [Installed] |
| Access Width | 6000mm |
| Box Sections of Posts | 150x150x5mm |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Material | Hot Dip Galvanised Steel [Gate Frame] Tanalised UC4 Timber [Acoustic Face] |
| PPC Colours | Galvanised Only |
| Compliant To | ISO 1461 [Galvanising] |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Hinge Post | 2 |
| SR1 Adjustable Gate Eyes | 6 |
| Ribbes Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 4 |
| Drop Bolt | 2 |
| AcoustiGuard® Absorb Timber Infill | 2 |
