CP.BULL-RI In-Built Control Panel for BULL15M
Product Description
CP.BULL-RI In-Built Control Panel for BULL15M

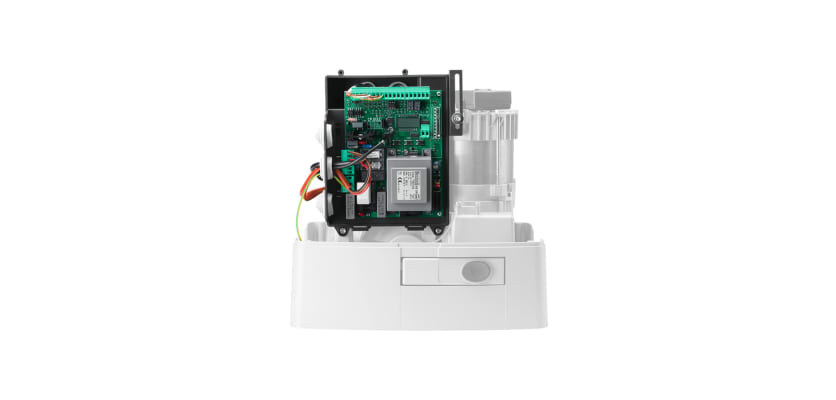

The CP.BULL-RI In-Built Control Panel is specifically designed for the BULL15M sliding gate motor. This integrated device ensures maximum precision during the automation process.
Features
The integrated LCD display improves usability, and the built-in 433.92 MHz radio receiver supports 64 codes with three encoding systems: Advanced Rolling Code, Rolling Code, and Fixed Code. The control panel features removable terminal boards and supports automatic, semi-automatic, and deadman’s logic. It includes an encoder input for obstacle detection and motor limit switch inputs, allowing access to open, close, pedestrian, step-by-step, and stop functions.
The photocell input (PHOT O) can be activated during both opening and closing phases, while the photocell input (PHOT C) is set for the opening-closing phases. Additionally, there’s an input for N.C. or 8K2 sensitive edges. Outputs can be configured for functions like indicating when the gate is open, operating a service light, providing a second radio channel, and photocell testing.
This panel allows for auto setting of operating parameters and includes electronic motor torque adjustment. Adjustable slow-down systems are in place, and electronic braking ensures a precise stop, even with heavy doors. The Advantouch system facilitates parameter configuration and management of radio transmitters, tracking the number of manoeuvres and providing a programming access password along with maintenance warnings.
First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates such as palisade, mesh, railings, and specialised or custom options.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
What's Included
| Name | Quantity |
|---|---|
| Control Panel | 1 |
| Integrated Radio Receiver | 1 |
What's Included
| Name | Quantity |
|---|---|
| Control Panel | 1 |
| Integrated Radio Receiver | 1 |
