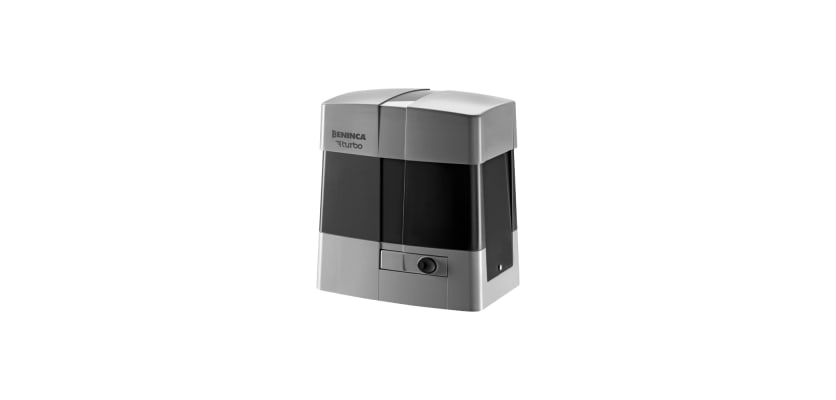

BULL1224 Turbo Sliding Gate Motor - Up to 1200kg - High Speed
| Dimensions | 395mm x 316mm x 300mm |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 3 A |
| Maximum Thrust | 390 N |
| Opening Speed | 12.5 ÷ 24 m/min |
| Duty Cycle | 99% |
| Protection Level | IP44 |
| Inbuilt Encoder | Virtual |
| Operating Temperature | -20°C/+50°C |
| Max Gate Weight | 1200kg |
| Gate Usage | Light Commercial |
| Compatible Control Panel | In-built |
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| CP.B24TURBO [Control Panel] | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
BULL1224 Turbo Sliding Gate Motor - Up to 1200kg - High Speed
Sliding gate motors are tools designed to automate the opening and closing of sliding gates. Widely embraced in residential, commercial, and industrial environments, they offer unmatched convenience, security, and user-friendliness. Moreover, they enhance residential security by regulating access to driveways and entrances.
Automated gates, powered by motors, elevate security measures by limiting entry to unauthorised individuals and vehicles. They can be seamlessly integrated with extra functionalities like intercom systems, keypad access, or remote monitoring capabilities for added convenience and surveillance.
High-quality sliding gate motors are built to withstand harsh weather conditions and heavy use, ensuring long-term durability and reliability with minimal maintenance requirements.
The BULL1224 Turbo Sliding Gate Motor is ideal for domestic and light commercial sliding gates up to 1200kg.
Features
The BULL1224 TURBO Sliding Gate Motor is a high-speed 24 Vdc gear motor designed for heavy-duty use, featuring an integrated control unit and virtual encoder.
The main control unit, positioned on the top of the motor, streamlines the wiring process and calculates the motor's position based on instantaneous speed measurements (virtual encoder).
This virtual encoder facilitates effective management of slowing-down phases, movement tracking (STC system), and torque control relative to the gate's position, ensuring maximum safety.
Self-programming with a transmitter can be activated during initial installation.
The motor includes practical cable guides and offers impressive performance and speed, reaching 24 m/min with a load capacity of 1200 kg.
It features an anti-crushing system with amperometric obstacle detection and a safety sensor that cuts off power during release operations.
Designed for integration with the X.BE module, it connects seamlessly to KNX home automation systems.
There is a convenient compartment for two DA.BT6 7 Ah batteries, and a metal release lever is included.
Additionally, the motor can operate opposing sliding gates using the SIS accessory.
First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates such as palisade, mesh, railings, and specialised or custom options.
