MD102 10m Probe Magnetic Field Vehicle Detector
| Channels | 1 |
| Voltage | 24 Vdc |
| Loop Style | Probe |
| Loop Function | Safety and Presence |
| Name | Quantity |
|---|---|
| 10m Probe | 1 |
| Instruction Manual | 1 |
MD102 10m Probe Magnetic Field Vehicle Detector

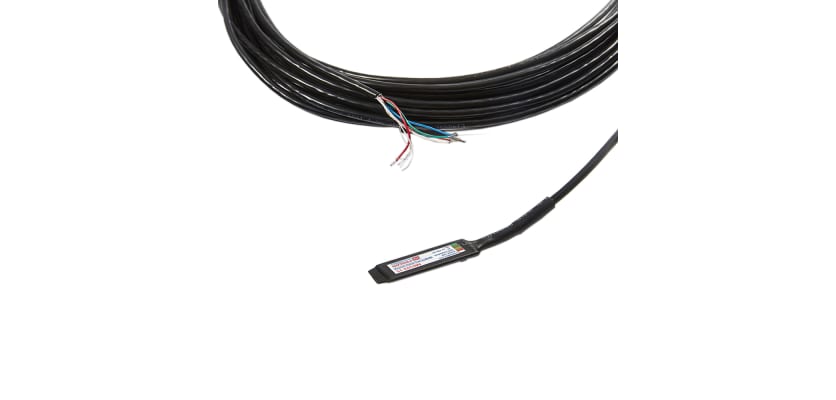

The MD102 10m is a magnetic resistance probe that is used to measure the earth's magnetic field. Any change in this field due to the presence of a vehicle will be detected, resulting in a signal output.
This probe can be buried into the road surface and can be used to produce a pulse output or a presence output. The presence output will detect the vehicle indefinitely.
The MD102 10m has been designed for parking and access control applications, is a cost-effective solution for vehicle detection in order to facilitate the automatic opening of security gates, and requires a minimal amount of cutting into the road surface.
The MD102C is a control unit that facilitates the configuration and testing of the MD102. Configuration is managed via DIP switches, while LEDs provide visual indications of the probe's operation. A relay output activates when a vehicle is detected. It is recommended that this be purchased with the MD102 series vehicle detectors.
Features and Benefits
Installation is straightforward, with no need to cut induction loops. This quality brand ensures reliable performance, and the controller is easy to set up with an LED detection indicator. It can be utilised for both presence and pulse functions.
