Locinox ElectraDrop Electrical Dropbolt
Product Description
Locinox ElectraDrop Electrical Dropbolt

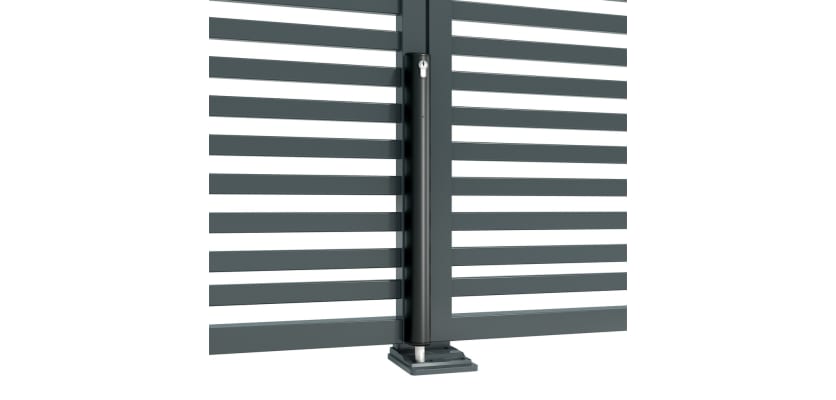

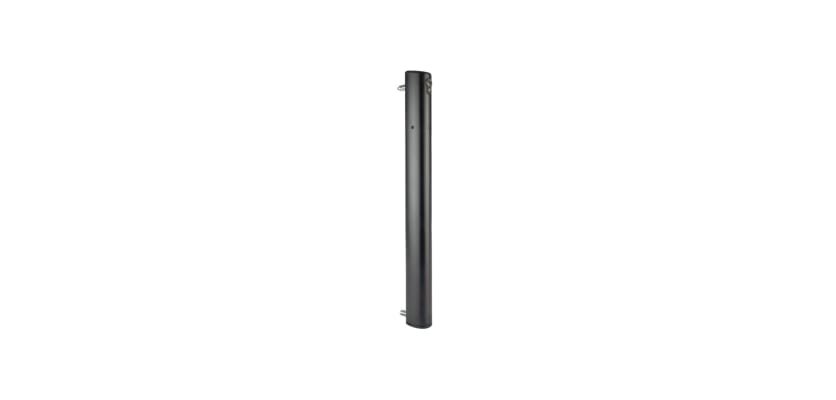

The Locinox ElectraDrop Electrical Dropbolt is a robust locking solution designed to secure automated swing gates safely and effectively. Operating on 24V, this electric drop bolt features a 115 mm throw, providing a strong vertical locking point that significantly enhances gate stability.
By securing the gate leaf independently of the drive system, the ElectraDrop reduces the load on electric gate motors. This not only improves operational reliability but also helps extend the service life of the automation equipment. Designed for demanding automated gate applications, the ElectraDrop delivers dependable locking performance in a wide range of environments.

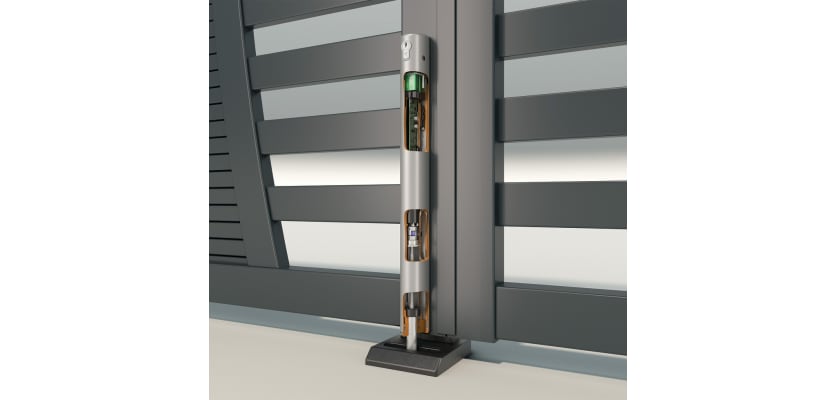

The ElectraDrop’s fail-safe mechanism ensures the bolt automatically retracts during power cycles, preventing accidental obstruction of the gate’s travel path. Its weatherproof housing protects the internal electronics from moisture ingress, ensuring the high-torque motor delivers consistent force even when the ground socket is partially obstructed by minor debris or seasonal grit.
By providing a mechanical anchor point at the centre of the driveway, it effectively eliminates the "bowing" effect caused by wind pressure on large gate leaves. This added rigidity protects your motor’s internal gearboxes from expensive stripped-teeth damage, making it a critical security upgrade for any high-wind or wide-span automated entry system.
Key Features
- Electric drop bolt operating on 24V
- 115 mm throw for secure gate locking
- Designed for automated swing gates
- Reduces load and stress on electric gate motors
- Enhances overall gate stability and security
- Suitable for demanding outdoor applications
Applications
The Locinox ElectraDrop Electrical Dropbolt is suitable for:
- Automated swing gate installations
- Residential, commercial, and industrial sites
- Gates requiring additional locking support alongside automation
- Applications where reducing motor load and wear is essential
Contact Us
For advice on compatibility or installation guidance, please contact us. Call 01283 512 111, email sales@firstfence.co.uk, or connect via live chat.
Specifications & Downloads
| Installation Method | Quick-Fix |
| Throw | 115mm |
| Profile Type | Flat Square |
| Cylinder Length | 37mm |
| Material [Main Parts] | Powder Coated Aluminium, Stainless Steel |
| Length Provided Cable | 5000mm |
| Holding Force | 1000kg |
| Minimum gate profile | 40mm |
| IP rating | 66 |
What's Included
| Name | Quantity |
|---|---|
| Electric Drop Bolt | 1 |
| Emergency Battery Pack (on applicable product) | 1 |
Specifications & Downloads
| Installation Method | Quick-Fix |
| Throw | 115mm |
| Profile Type | Flat Square |
| Cylinder Length | 37mm |
| Material [Main Parts] | Powder Coated Aluminium, Stainless Steel |
| Length Provided Cable | 5000mm |
| Holding Force | 1000kg |
| Minimum gate profile | 40mm |
| IP rating | 66 |
What's Included
| Name | Quantity |
|---|---|
| Electric Drop Bolt | 1 |
| Emergency Battery Pack (on applicable product) | 1 |
