KTOM40M Above Ground Telescopic Double Leaf Swing Gate Operator Kit - Up to 5.0m Per Leaf
| Motor Supply | 230 Vac |
| Gate Usage | Residential |
| Motor Type | Electromechanical |
| Duty Cycle | 30% |
| Wind Loading | 50% |
| Built In Physical Stops | Yes |
| Fixing Bracket Type | Screw on |
| Protection Level | IP44 |
| Encoder | No |
| Max Gate Width | 3.5m |
| Name | Quantity |
|---|---|
| TOM40M Above Ground Swing Gate Operator | 2 |
| Brainy Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
| AWO Long Range Aerial | 1 |
KTOM40M Above Ground Telescopic Double Leaf Swing Gate Operator Kit - Up to 5.0m Per Leaf
The TOM40M is a 230 Vac linear telescopic operator for gate leaves up to 3.5m and is ideal for residential settings.

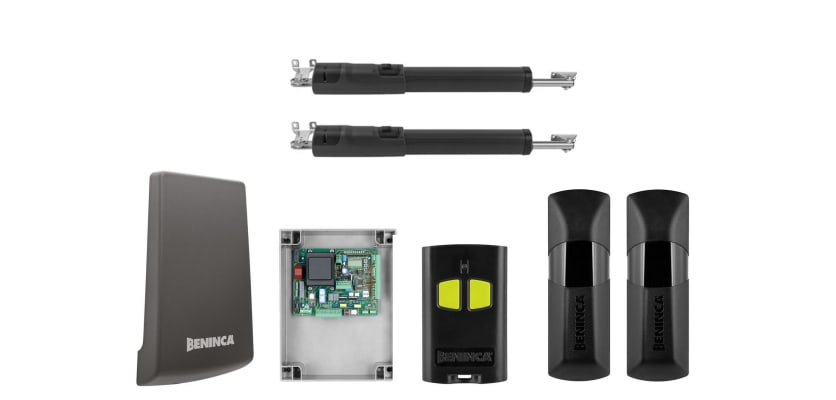

Kit Contents

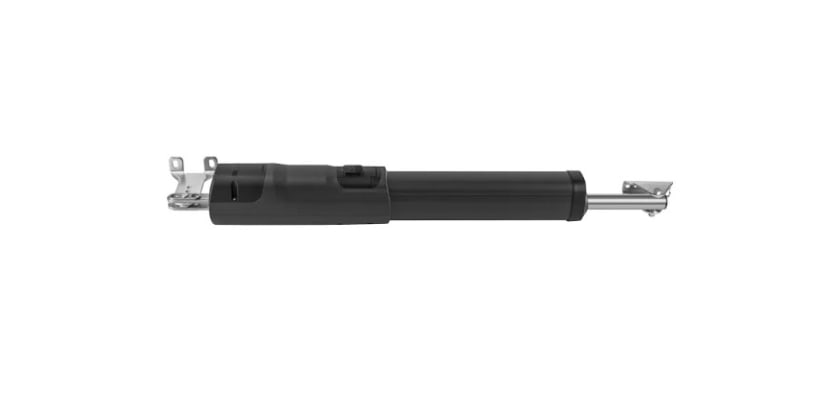

TOM40M Above Ground Telescopic Swing Gate Operator (x2)
The TOM40M is a reliable gear motor with two adjustable mechanical stops for smooth gate operation, easily accessible under the shaft's metal cover. Designed for swing gates, it features a compact 96mm width and screw-in brackets for easy installation. Its 45° wiring angle minimizes ground clearance, while aligned rear and front brackets optimize load distribution, extending the actuator's lifespan. A wiper ring and stainless steel shaft protect the worm screw, making it ideal for dusty or harsh environments.
Brainy 230V Control Panel
The Brainy is designed for one or two motors and is ideal for swing gates and industrial folding doors. Installation is straightforward with the built-in display, and the control panel itself offers versatile operating logic to suit your needs.
PUPILLA Hard Wired Photocells - 1 Pair
PUPILLA Photocells are essential for gate automation, enhancing safety and security by creating an invisible beam near gate openings. They detect obstacles or movement, causing the gate to stop or reverse, which helps prevent accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA This versatile transmitter is designed for gate automation systems, capable of controlling two functions or gates. It's perfect for properties with multiple gates or where separate entry and exit commands are required. The TO.GO2VA features secure coding technology to prevent unauthorised access and comes as a kit with two transmitters.

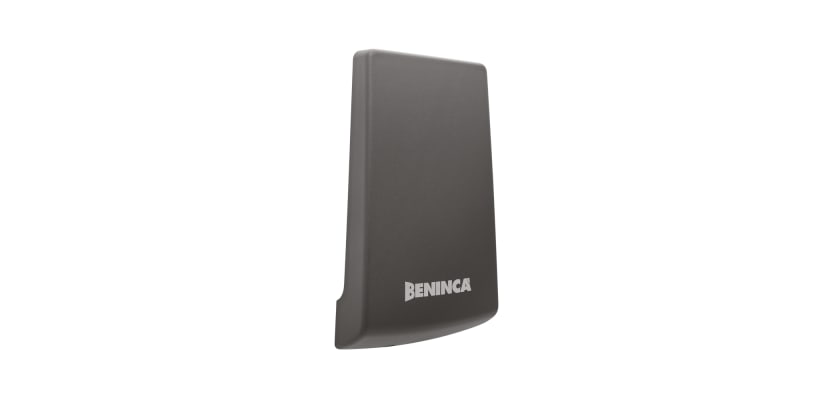

AWO Long Range Aerial
Long range aerials play an important role within a gate automation system by extending the reach and dependability of remote control operations. They are ideal for properties with long driveways, allowing residents to operate the gate from a considerable distance. This kit comes with one AWO long range aerial, designed for external installation and comes fitted with a shielded RG58 5m cable and IP54 box.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as an extensive range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
