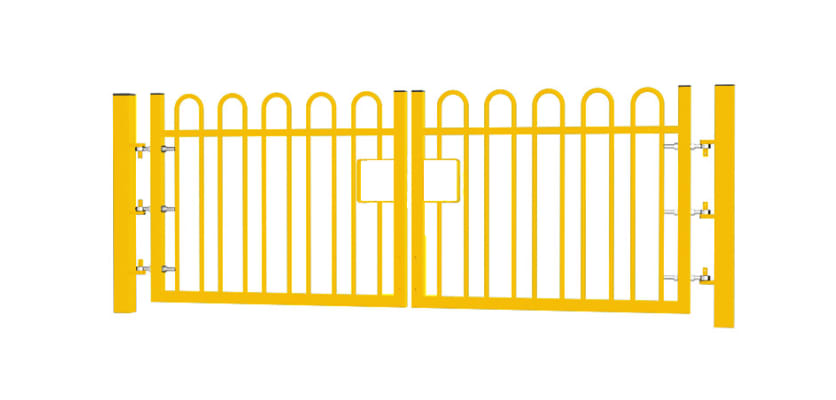

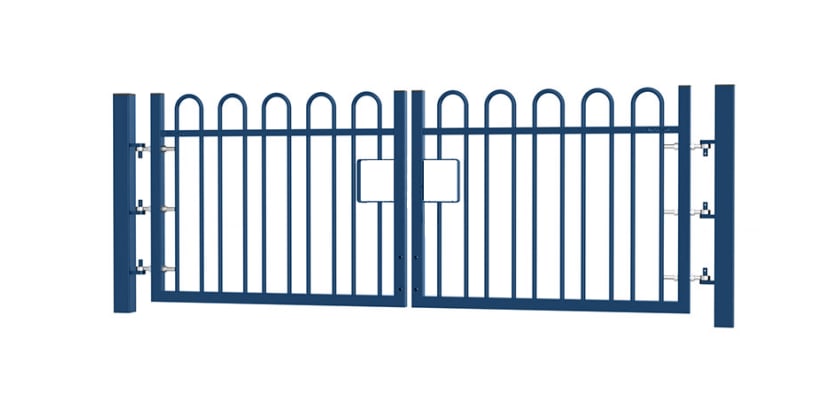

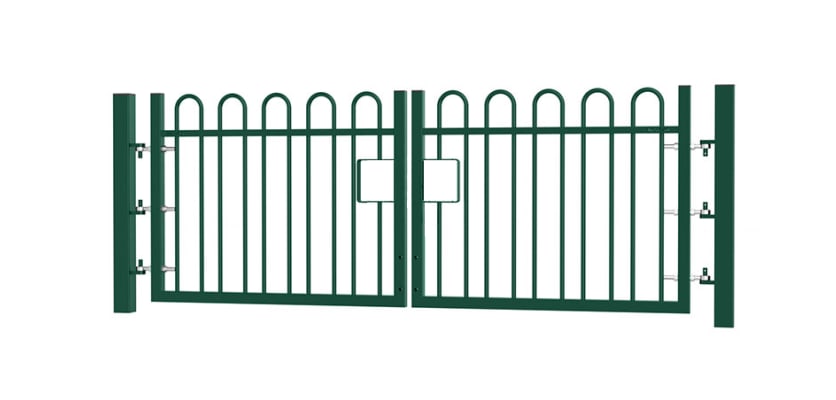

1.0m High x 2.0m Wide EnviroRail® Bow Top Double Leaf Gate Kit

1.0m High x 2.0m Wide EnviroRail® Bow Top Double Leaf Gate Kit

Bow Top railings and gates embody timeless elegance defined by a unique curved design atop the rail line. Originating in the 19th century, these designs were primarily used to enclose gardens, parks, and residential areas, offering a subtle yet effective barrier. Initially crafted from wrought iron, they have evolved to incorporate materials like steel or aluminium, chosen for their durability and easy upkeep. They are still a very popular design infusing style with security.

First Fence offers a range of railings, including the classic Bow Top, and introduces the EnviroRail® series featuring railing bays and gates. These gates are available in different widths and heights, offered in dig-in or bolt-down formats to suit various ground types.

Conducting a ground assessment before purchase is essential for the right fit. Contact our sales team at 01283 512111 for assistance.

Features and Benefits

The EnviroRail® Bow Top Double Leaf Gate Kit, measuring 1.0m in height and 2.0m in width, provides exceptional access control flexibility. It allows operation of one or both leaves in open or closed positions. This is one of the smaller width, double leaf gates, yet the 2.0m width still gives good access to your property.

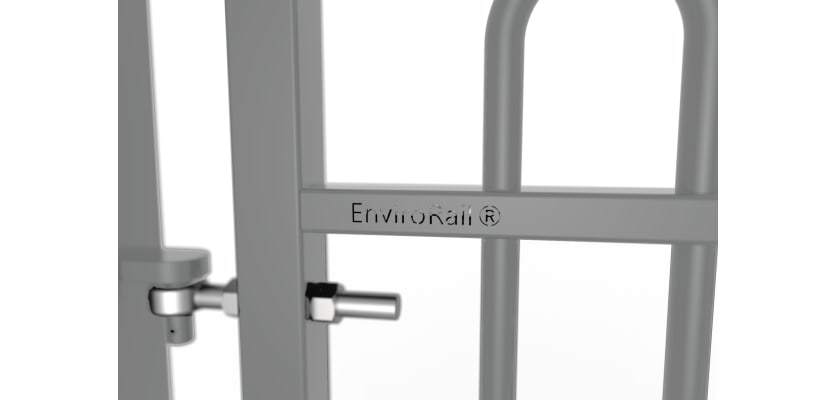

This gate kit stands out from standard bow top products due to its environmentally conscious manufacturing process. Employing a low-weld technique, it utilises custom-made, laser-cut pre-galvanised elements that create sturdy connections upon assembly. This innovative approach significantly reduces reliance on energy and resource-intensive welding. For those concerned about environmental impact, this is an ideal choice.

Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.

The EnviroRail® Double Gates offer a fully modular and relatively lightweight solution, enabling swift installation for diverse hardware requirements. Universally handed, they provide on-site flexibility without fixed left or right-hand specifications. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.

Each gate comes pre-drilled, simplifying the attachment of six adjustable hinges and a drop bolt. Plastic hole plugs are included to cover any unused holes on the visible side. A locking drop bolt is available for purchase and is highly recommended for a double leaf gate.

The kit comprises two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each leaf), meeting BS 12604 safety guidelines to ensure stability, even if one hinge fails. Furthermore, the gate hooks are fully welded to the gate post, these are fixed axis hinges with no up or down movement. The gates have 50mm ground clearance.

Available in various heights and widths, our gate kits are offered in dig-in and bolt-down versions, suitable for installation in different environments. The dig-in variant suits softer terrains like grass and soil, requiring Post Mix for secure installation. Meanwhile, the bolt-down option is ideal for harder ground surfaces such as concrete, using eight M16 x 125mm anchor bolts that can be included in your order.

Alongside gate kits, First Fence provides EnviroRail® Railings, Estate Railings, and Gates, enhancing security with options such as heavy-duty padlocks.
