0.9m High x 3.0m Wide EnviroRail® Bow Top Double Leaf Gate Kit

0.9m High x 3.0m Wide EnviroRail® Bow Top Double Leaf Gate Kit

Bow Top railings and gates exude a classic elegance characterised by a distinctive curvature at the top of the rail line. Originating in the 19th century, these designs were primarily used to enclose gardens, parks, and residential spaces, providing a barrier without an overpowering presence. Initially forged from wrought iron, they have evolved to incorporate materials like steel or aluminium, chosen for their durability and easy maintenance.

Within its range, First Fence offers various railings, including the timeless Bow Top, and has introduced the EnviroRail® series, featuring railing bays and gates. The gates come in different widths and heights, available in dig-in or bolt-down formats, catering to a wide array of ground substrates. It's vital to conduct a ground assessment before purchase to ensure the right fit. For guidance, contact our sales team at 01283 512111.

Features and Benefits

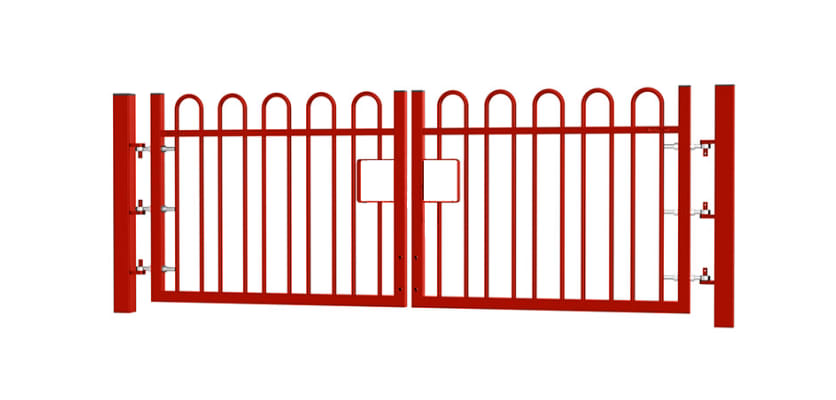

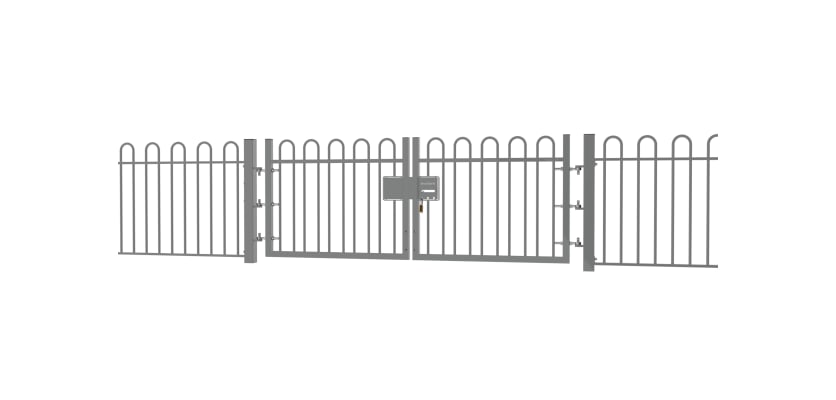

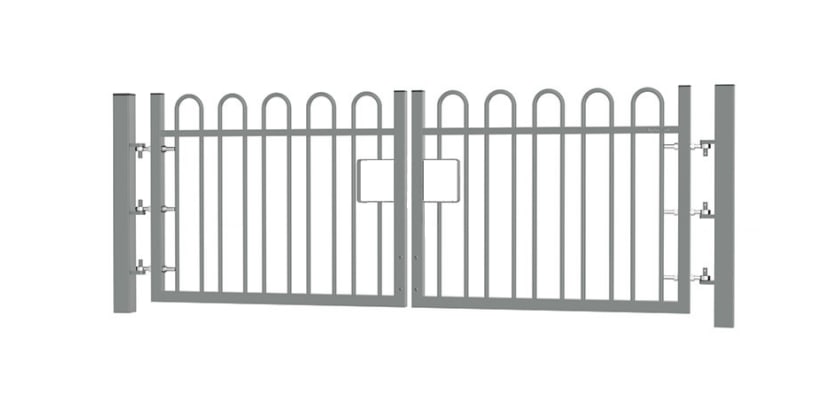

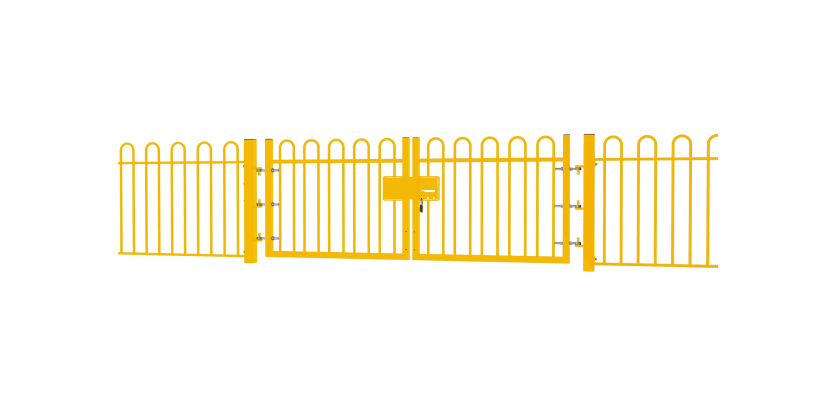

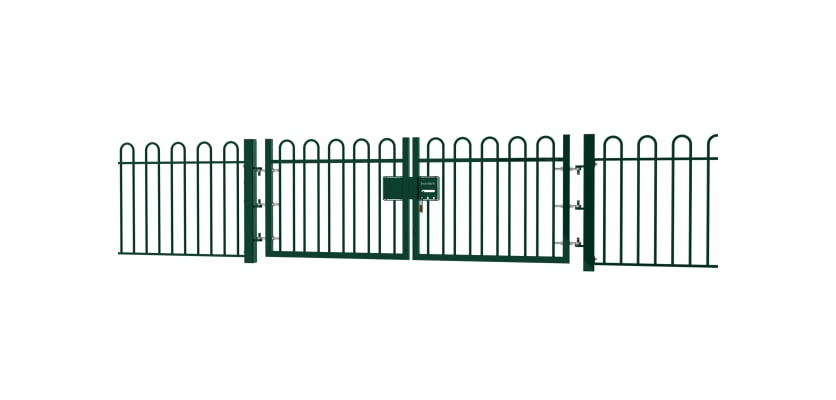

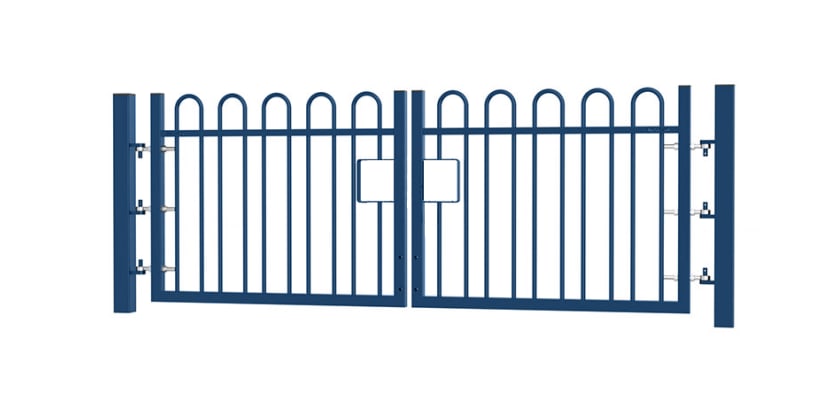

The EnviroRail® Bow Top Double Leaf Gate Kit, measuring 0.9m high x 3.0m wide, offers excellent access control flexibility. It allows you to operate one or both leaves in open or closed positions.

This gate kit distinguishes itself from standard bow top products due to its environmentally conscious manufacturing process. Employing a low-weld technique, it utilises custom-made, laser-cut pre-galvanised elements that create robust connections when assembled. This innovative approach significantly reduces the reliance on energy and resources-intensive welding. For those concerned about environmental impact, this could be an ideal choice.

Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.

The EnviroRail® Double Gates provide a fully modular and relatively lightweight solution, facilitating quick installation for diverse hardware needs. Universally handed, they offer on-site flexibility without fixed left or right-hand specifications. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.

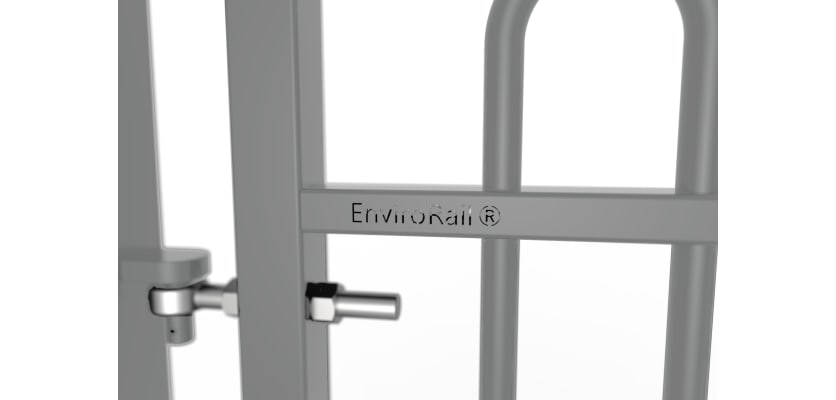

Each gate arrives pre-drilled, simplifying the attachment of six adjustable hinges and a drop bolt. Plastic hole plugs are included to cover any unused holes on the attack face. A locking drop bolt is available for separate purchase. and is recommended for a double leaf gate

The kit consists of two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each leaf), meeting BS 12604 safety guidelines to ensure stability, even if one hinge fails. Moreover, the gate hooks are fully welded to the gate post. These are fixed axis hinges with no up or down movement. The gates have 50mm ground clearance.

Available in various heights and widths, our gate kits are offered in dig-in and bolt-down versions, suitable for installation in different environments. The dig-in variant suits softer terrains like grass and soil, requiring Post Mix for secure installation. Meanwhile, the bolt-down option is ideal for harder ground surfaces such as concrete, using eight M16 x 125mm anchor bolts that can be added to your order.

In addition to gate kits, First Fence provides EnviroRail® Railings, Estate Railings, and Gates, enhancing security with options like heavy-duty padlocks.

Contact Us Today!

For assistance in selecting the ideal product, reach out to the First Fence sales team. Call us at 01283 512111 or utilise our easy-to-use online chat tool.
