5.0m High EchoGroove Reflective Acoustic Fencing Kit
Use Our PostPro Calculation Service
Unsure if our recommended steel posts are right for you? Simply tell us about your site and height for an engineers report on post suitability:
| Height | 5.0m [Installed] |
| Width | 2.4m |
| Panel Material | Timber [Incised and Pressure Treated] |
| Colour | Tanalised UC4 [Pale Green] |
| Weight | 360kg |
| Ground Fixing | Dig In |
| Timber Compliant To | BS 8417 [Timber Treatment] |
| System Compliant To | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | BS 8417 [Timber Treatment] |
| Manufacturing Standards | BS EN 1793 Road Traffic Noise Reducing Devices |
| Manufacturing Standards | Tested and Complies to BS EN 1794-1 and BS EN 1794-2 |
| Manufacturing Standards | Design in accordance with specification for Highways Works Clause 2504. Treatment to Sector Scheme 4 |
| Density | Average Density 30.7kg/m [Excluding Posts] |
| Name | Quantity |
|---|---|
| Acoustic Tongue & Groove Boards | 1 |
| Timber Gravel Board [2.4m x 150 x 50mm] | 1 |
| Capping Rail [2.4m x 125 x 38mm] | 1 |
| Counter Rail [2.4m x 75 x 38mm] | 1 |
| Cover Strip [5.0m x 125 x 38mm] | 1 |
| Centre Strip [5.0m x 75 x 38mm] | 1 |
5.0m EchoGroove Reflective Acoustic Fencing Kit
In essence, noise refers to unwanted sounds that can disrupt communication, interfere with leisure activities, and, in severe cases, lead to hearing damage or cause mental and physical symptoms. Timber construction and barriers effectively absorb and deflect sound waves, substantially lowering noise levels in various settings. These barriers blend effortlessly with different exterior designs, enhancing aesthetics with their attractive and inviting appearance.

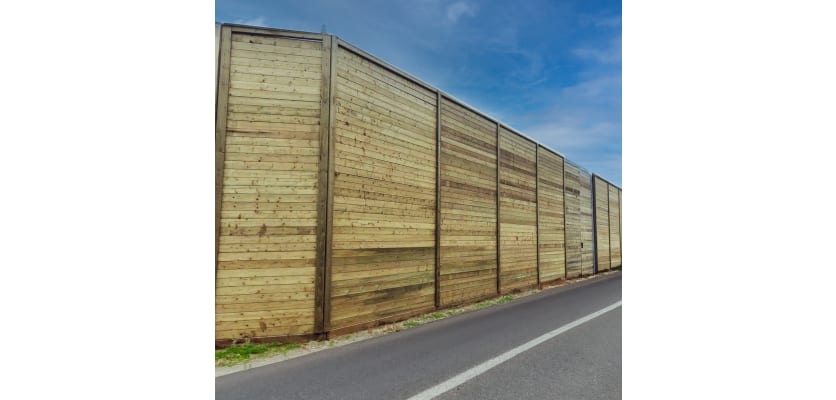

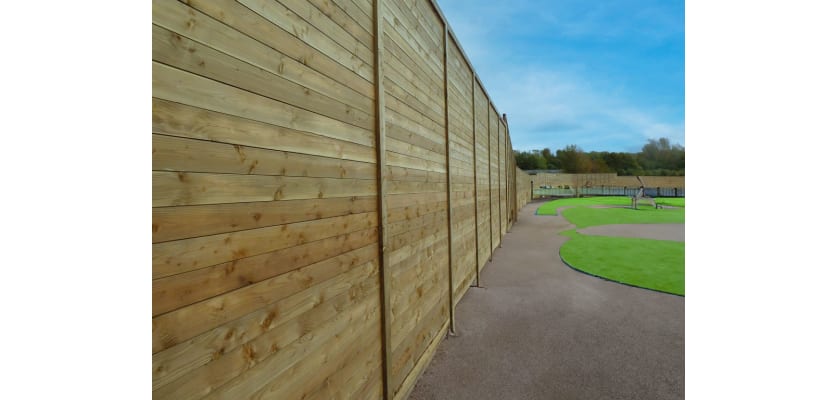

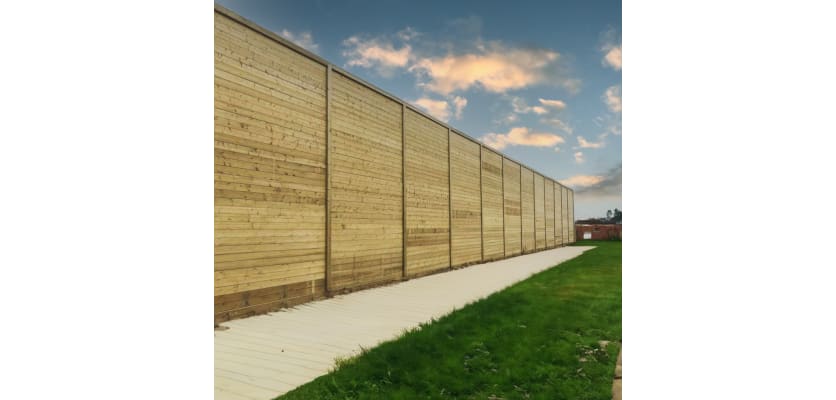

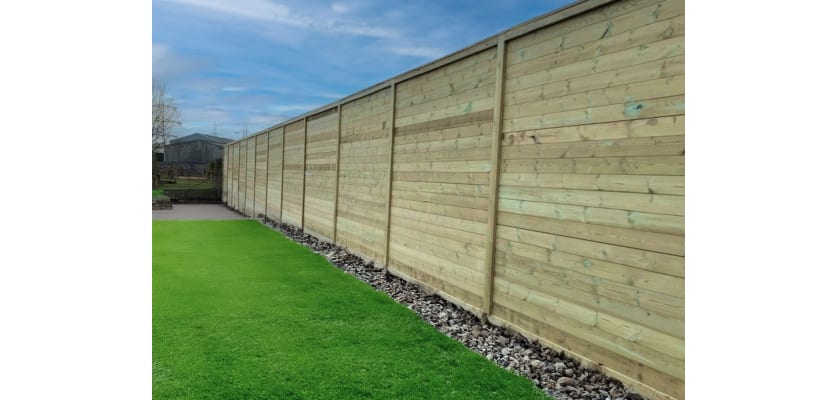

The EchoGroove Reflective Acoustic Fencing Kit, standing at a height of 5.0m, is the tallest available in this range and functions by reflecting noise away using its profile. Delivered in separate components, the kit allows for easy assembly on-site. Its acoustic screen boasts a carefully crafted profile that, when installed accurately, removes any gaps, efficiently preventing sound from passing through.
Please note that this kit does not include any fixings; you will need 64mm stainless steel nails compatible with your nail gun.
Features and Benefits
The Timber Acoustic Fencing Kits offer a straightforward solution for homeowners, property developers, and local governments addressing concerns about the effects of traffic noise. They are perfect for residents living in busy areas or businesses aiming to reduce disturbances caused by unwanted noise.
The system underwent independent testing by Salford University to meet the standards set by Highways England (BS EN 1793 for Road Traffic Noise Reducing Devices). It adheres to the requirements of BS EN 1794-1 and BS EN 1794-2, and is also compliant with Highways Sector Scheme 2C for prefabricating environmental barriers.
Made from Tanalised (UC4) pressure-treated timber obtained from an FSC-certified supplier, this material boasts a naturally pale green hue that harmonises effortlessly with its environment. The timber undergoes surface incision at the manufacturing site, a vital process to guarantee top-notch preservation for timber utilised in ground contact applications.
Within the loose, kit form, you will get Tongue & Groove Acoustic Boards, Timber Gravel Board, Capping Rail, Counter Rail, Cover Strip, Centre Strip. We only recommend that you use an IPE steel post for this height of fencing. This is a dig-in only format.
These panels can be painted with a breathable stain or paint. It is recommended that any vegetation be cut down where the acoustic fencing is to be installed. Do not install them where they may sit in water.
The manufacturer guarantees a 30-year service life for the timber acoustic barriers when properly installed and maintained. It's recommended to seek advice from a structural engineer to assess the wind loading requirements tailored to your area.
Our EchoGroove Panels are also available in heights ranging from 1.8 to 5.0m.
Function and Style
These panels not only improve aesthetics but also provide the most efficient solution for addressing excessive and unwanted noise in diverse settings, such as residential, educational, transportation, commercial, and industrial areas. This acoustic fencing works by creating a robust barrier to interrupt and redirect unwanted sound, leading to a notable decrease in noise levels and mitigating previous disturbances. Alongside noise management, acoustic fence panels offer increased privacy and a visually pleasing alternative to industrial-style security fencing.
First Fence also has a range called EchoReflect and EchoAbsorb, why not take a look today? Also available are a range of Sound Absorption Barriers and accessories.
