Height | 1800mm [Installed] |
Access Width | 3000mm |
Box Sections of Posts | 100mm x 100mm |
Gate Hanging Side | Right Hand Hung (From Outside Looking In) |
Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |
Material | Hot Dip Galvanised Steel |
PPC colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 |
Name | Quantity |
---|---|
Sliding Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Hinge Gate Post | 2 |
Drop Bolts | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Insert for Gate Post | 2 |
Ribbed Insert for Gate Frame | 4 |
Ground Anchor Bolts [Bolt Down Version] | 8 |

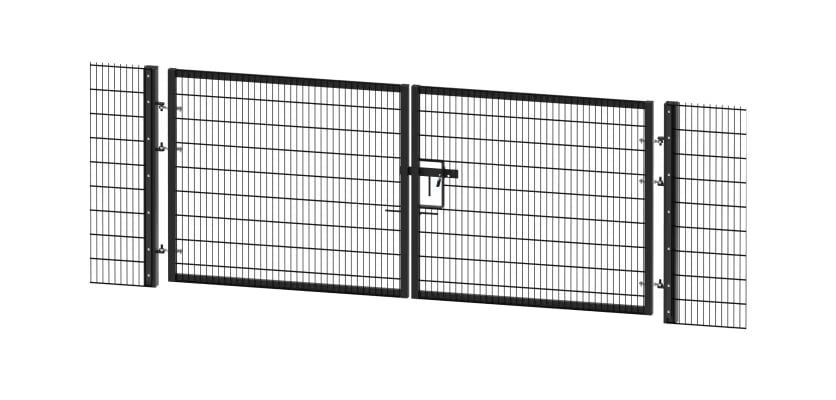

Introducing the ProFence® SR1 (A1) LPS 1175 1.8m x 3.0m Wide 868 Mesh Double Leaf Gate Kit. This is representative of First Fence's security-rated products, further enriching our comprehensive line-up of security solutions.
The ProFence® security range has undergone exhaustive testing and earned accreditation under the stringent SR1 (A1) LPS 1175 standards. This accreditation signifies a one-minute delay against a hostile attack using a variety of hand tools belonging to Toolkit A.
These tools can include glass cutters, spanners, and pliers, all of which are compact and easily concealed by potential intruders seeking entry into valuable sites. The critical sixty seconds can provide ample time for on-site security personnel to detect a perimeter breach on CCTV and initiate a prompt response.
First Fence's ProFence® product range is available in both 868 and 358 mesh, offering fencing kits and single and double leaf gates in a wide range of heights and widths.
The rigorous SR1 testing process has rightfully earned this product range a coveted spot in the Red Book.
This gate, designed with two leaves, provides greater flexibility in controlling access. Fabricated from high-quality steel, which has been hot dip galvanised, to ISO 1461 standards. The gate is further shielded by a polyester powder coating available in various colours. This dual coating affords enhanced protection against wear and tear, damage, rust, and corrosion.
The kit includes a sliding gate leaf and a catch leaf, two hinge gate posts, two drop bolts, six adjustable gate eyes, and ribbed inserts for the gate frame and posts. The gate leaves feature an 868 mesh infill, a well-recognised security mesh configuration. The vertical wires are 6mm thick, while the horizontals are 8mm, giving the mesh its name.
This type of mesh is exceptionally robust and resistant to cutting, making it particularly suitable for situations where clear perimeter visibility is crucial, or for integration with CCTV systems.
The gate kit incorporates six adjustable gate eyes; in the unlikely event of a hinge failure, the gate remains secure, preventing accidents, damage, or injuries. Each adjustable gate eye bolt is securely fastened with a snap-off nut, minimising the risk of post-installation removal.
The SR1 rated gate kit from First Fence is available in both a dig-in and bolt-down format, which will accommodate most ground conditions. It is important to assess the ground you plan to install this onto, if it is grass or other soft ground you will require the dig-in option, whereas concrete and other hard ground types will require bolt down posts.
Ground suitability – this gate should be assembled with the right type of posts for the ground that it will stand upon. Grass and other soft ground types require Dig-In Posts, whereas concrete and other hard ground types will require Bolt Down Posts.
The bolt down kit comes with the essential ground anchor bolts, if you choose the dig in kit, you will need to add Post Mix to your order. We recommend three bags per post. You should use either a C20 or C25 grade post mix.
This gate would be suitable for both pedestrian access and for small vehicles such as forklifts. The sliding latch bolt keeps the leaves in the closed position and the drop bolts keep the leaves secured. One or both leaves can be opened depending on your needs.
A range of approved Secure By Design (SBD) padlocks is available.
If you have any questions about this range of products from First Fence then please get in touch. The sales team are ready to assist you with your order and can be contacted by calling 01283 512111 or by using the online chat system.
