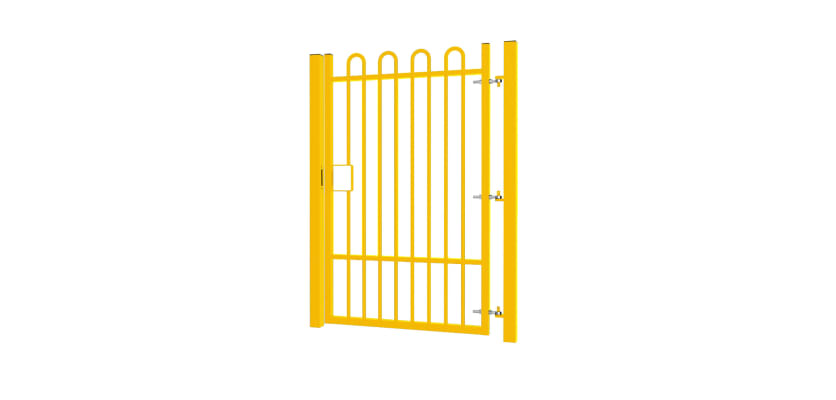

Height | 2400mm [Installed] |
Access Width | 2000mm |
Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
Box Sections of Posts | 100x100mm |
Box Section of Gate Leaf | 50x50mm |
Rail Style | Bow Top - Hollow Tubular |
Post Type | Dig In, Bolt Down |
Gate Hanging Side | Universally Handed |
Material | Pre-Galvanised Steel to BS EN 10346 |
Finish | Polyester Powder Coated |
PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
Name | Quantity |
---|---|
Envirorail® Sliding Gate Leaf | 1 |
Catch Gate Post | 1 |
Hinge Gate Post | 1 |
Adjustable Gate Eyes | 3 |
Ribbed Inserts for Gate Frame | 2 |
Ribbed Inserts for Posts | 2 |
UniSlide Slider Kit | 1 |

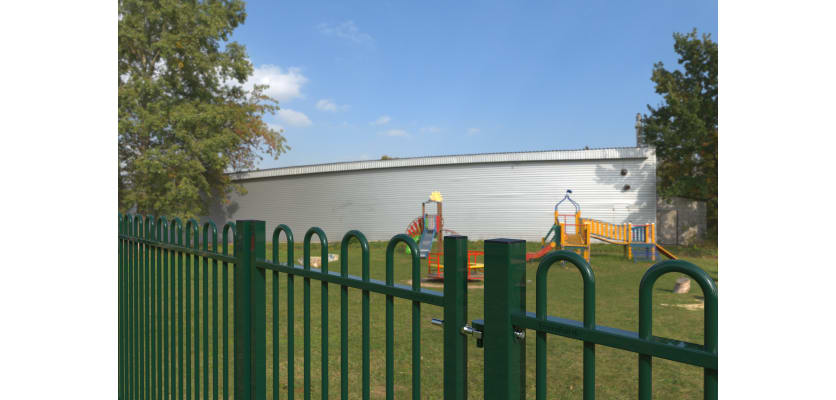

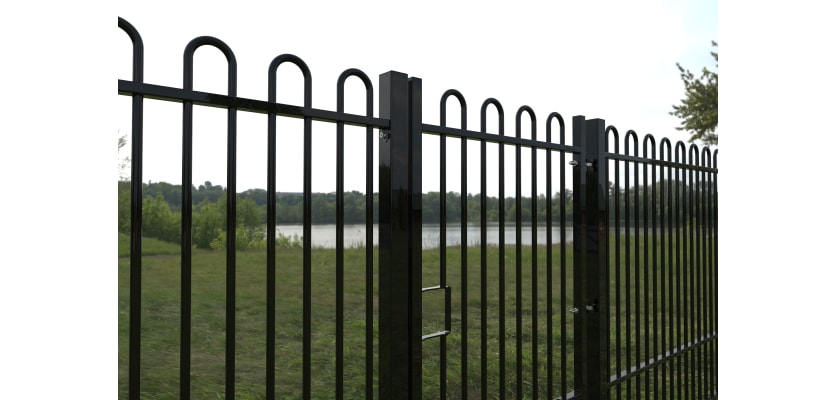

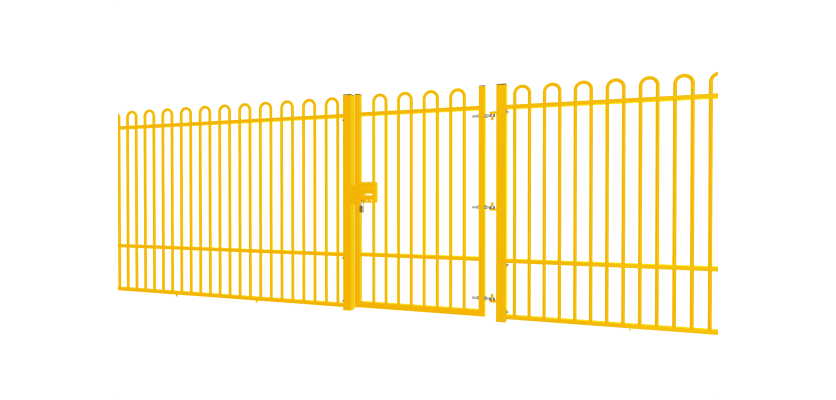

EnviroRail® Bow Top railings and gates stand out as a popular choice in fencing and gating systems, celebrated for their distinctive curved or arched top design. Renowned for adding an air of sophistication, they elevate the aesthetic appeal of gardens, parks, schools, and residential areas, seamlessly complementing various architectural styles.
Crafted with safety at the forefront, these bowed tops feature a smooth finish, minimising the risk of injuries. They act as a deterrent against unauthorised access while maintaining visibility of the enclosed area.

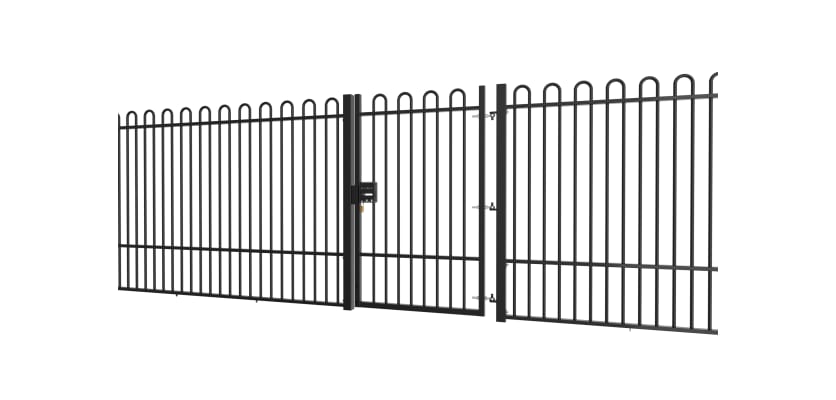

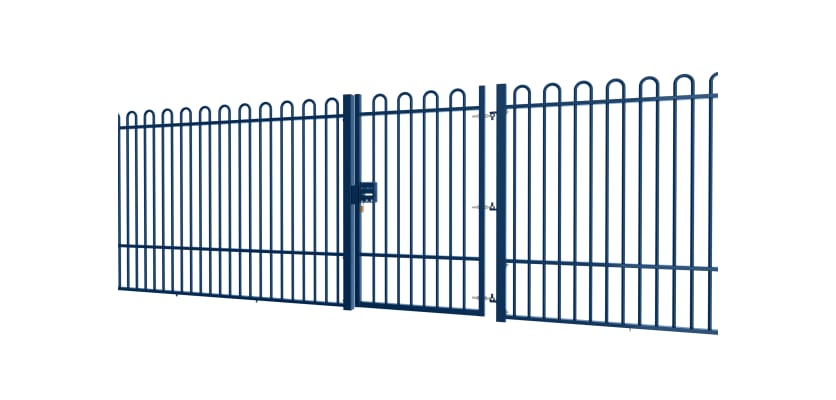

First Fence proudly introduces the EnviroRail® Bow Top Gate range, meticulously designed to perfectly harmonise with the EnviroRail® Bow Top Railing collection. The EnviroRail® line by First Fence encompasses gate and railing panel kits. The gates are available in single and double leaf options, offering a range of widths, heights, and a palette of polyester powder-coated colours.
Despite its appearance as a standard product, an EnviroRail® Bow Top gate stands out due to its eco-conscious manufacturing process. Employing a low-weld technique, the gate utilises custom-made, pre-galvanised components that form robust connections upon assembly, eliminating the need for energy-intensive welding. If you are concerned with the environmental impact of manufacturing processes, this could be a good choice for you.
Constructed from premium pre-galvanised steel, meeting BS 10346 standards, and further coated with polyester powder in a spectrum of standard or custom RAL colours, this product is built to withstand outdoor installation, enduring varying weather conditions. With good installation, this gate should give you years of faithful service with minimal maintenance required.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
EnviroRail® Gates offer versatility and ease of installation, characterised by modularity and a lightweight design. Their universal handedness ensures on-site flexibility, eliminating the limitations of fixed left or right-hand leaves. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.
Each EnviroRail® gate arrives pre-drilled, streamlining the hinge and drop bolt installation. The package includes convenient plastic hole plugs for any unused holes. Customers have the option to add locking drop bolts. All EnviroRail gates are supplied with a UniSlide kit, a strong and secure sliding system designed for smooth operation. The Single Leaf Kit consists of a retainer plate and guide plate for precise alignment, a robust slider with anhandle set and fixings.

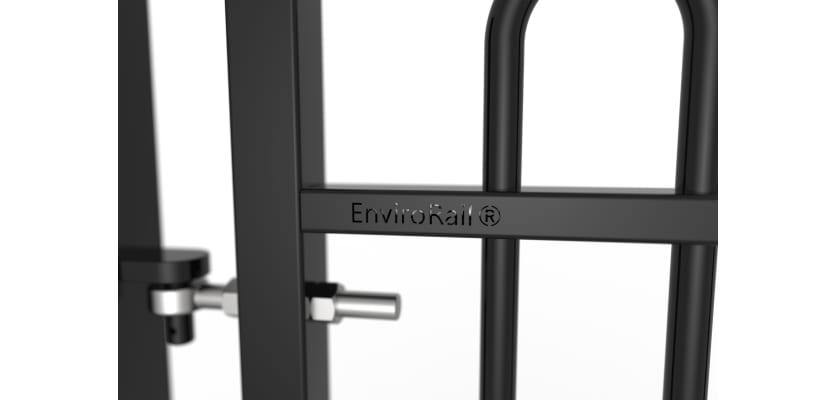

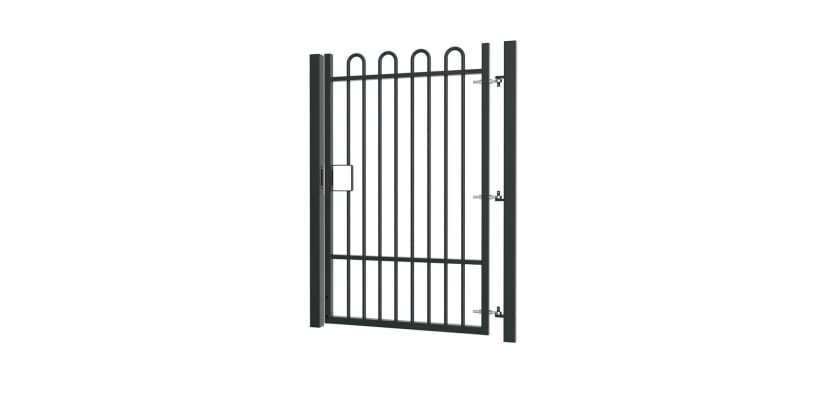

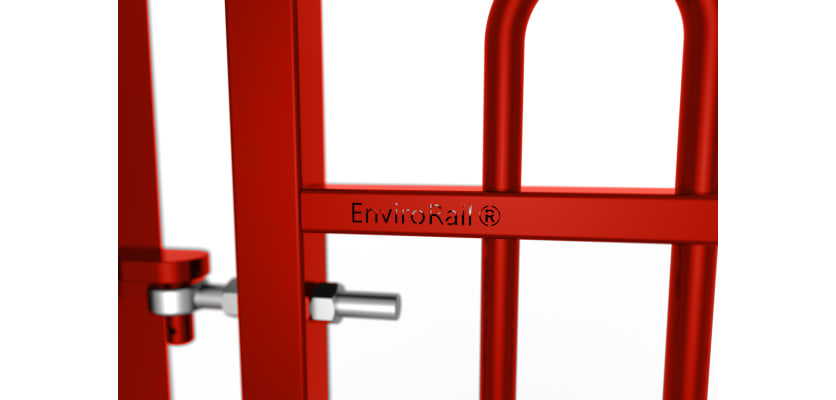

The comprehensive kit includes an EnviroRail® gate leaf, hinge, catch post, and three adjustable gate eyes. Prioritising safety, the gate adheres to BS 12604 safety guidelines. In case of hinge failure, multiple hinges work together to prevent the gate leaf from falling, ensuring safety and preventing potential injury or damage. Additionally, gate hooks are fully welded to the gate post for enhanced security, these are fixed axis hinges with no up or down movement.
With various width and height options, this gate kit caters to diverse installation needs, offering both dig-in and bolt-down choices. The dig-in option suits softer ground, requiring Post Mix for stability, while the bolt-down alternative is perfect for harder ground, secured using four M16 x 125mm anchor bolts.
This gate kit is compatible with our security locks and when installed correctly will give up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.
First Fence product range includes EnviroRail® Railings and Estate Railings and Gates, providing a wider array of high-quality fencing solutions for customers.
