1.0m High x 1.5m Wide EnviroRail® Play Sec Railing Single Leaf Gate Kit
Slider and Drop Bolt Sold Separately
| Height | 1000mm [Installed] |
| Access Width | 1500mm |
| Total Post Length | 1000mm [Bolt Down],1500mm [Dig In |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Gate Frame | 2 |
| Ribbed Inserts for Posts | 2 |
1.0m High x 1.5m Wide EnviroRail® Play Sec Railing Single Leaf Gate Kit
Take a look at the wide choice of gate and railing kits in the innovative First Fence EnviroRail® Range, crafted using a revolutionary manufacturing technique that significantly minimises environmental impact during production!

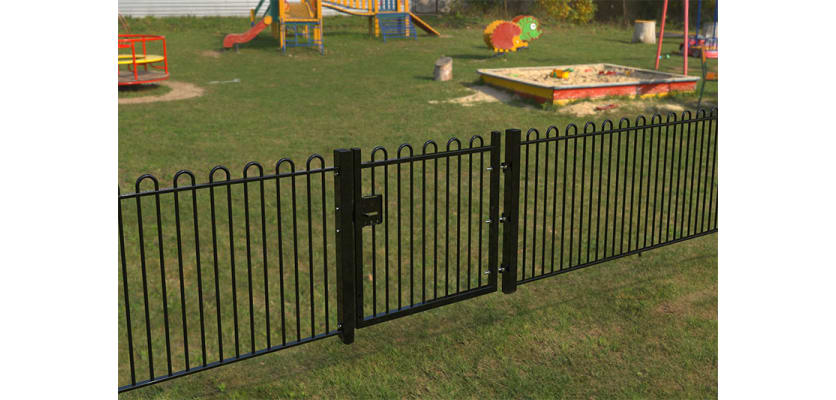

The EnviroRail® Play Sec Railing Single Leaf Gate Kit, measuring 1.0m in height and 1.5m in width, provides an environmentally friendly solution for securing perimeters around parkland and recreational grounds. Specifically designed with child safety in mind, this railing range enhances the overall aesthetics and atmosphere of the environment.
Choosing products for play areas involves unique considerations compared to standard perimeter layouts. The product's height must be sufficient to prevent easy scaling or squeezing through by young children. Vertical railings need should be closely spaced to prevent a child's head from getting stuck, while maintaining good visibility. Smooth surfaces are crucial to prevent cuts or scrapes, and the product should be free of sharp edges or protruding elements that could cause injury. Additionally, the product's durability, weather resistance, and low-maintenance features are crucial to withstand outdoor conditions and ensure compliance with stringent safety standards.
Features and Benefits
Introducing the EnviroRail® Play Sec Railing Gate – a recent addition meticulously designed to integrate with the EnviroRail® Play Sec Railing range.
This gate stands out through its innovative and eco-friendly low-weld construction method. The use of custom, interlocking laser-cut parts, pressed together to form robust bonds, distinguishes it in the market. This technique minimises the need for energy-intensive welding while maintaining the same durability as traditionally welded equivalents. Our customers now prioritise the reduced ecological footprint, and First Fence takes pride in delivering this environmentally conscious choice.
Every EnviroRail® Play Sec Railing Gate Kit is crafted from quality pre-galvanised steel meeting BS 10346 standards and coated with polyester powder, ensuring longevity and resilience against harsh outdoor conditions. The dual-layer protection guarantees reliable functionality and preserves its aesthetic appeal over many years. Various RAL colours are available to provide a vibrant, fun, and sleek finish.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
The EnviroRail® gate range offers an advanced, fully modular yet lightweight gate solution that enables swift fitting and accommodates various gate hardware. Universally handed, these gates offer on-site flexibility without fixed right or left-hand specifications, which simplifies the decision-making process during installation. This modularity facilitates easy adjustments in case the gates move, providing adaptability that fixed hardware cannot offer.

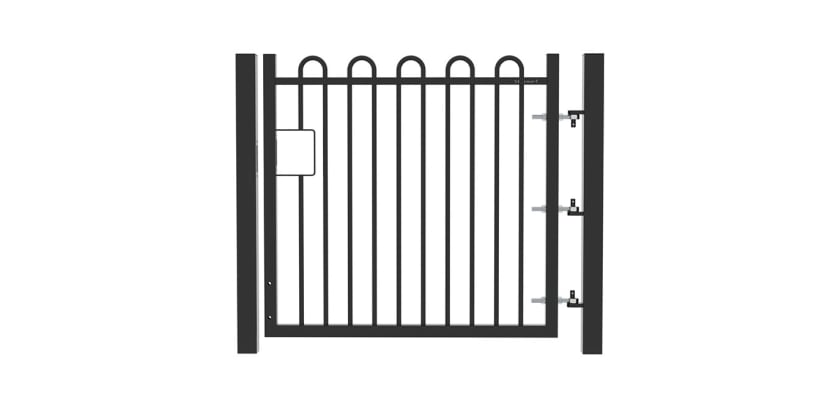

The single-leaf gate kit comprises a hinge and catch post, a single Play Sec Railing leaf, and three adjustable gate eyes. Three hinges ensure BS 12604 compliance, ensuring safety even in the unlikely event of a single hinge failing. The gate hooks, fully welded to the gate post, create a fixed-axis hinge, eliminating any up and down movement.
Pre-drilled holes make it an easy task to attach gate eyes and a drop bolt, with provided plastic plugs to cover any unused holes on the gate's attack face. The gate, compatible with security locks, offers a 30mm adjustment capability from the catch post, ensuring a straightforward installation process.
Safety Compliance
The gate rails are set at 100mm centres to prevent entrapment, and the top bows are 90mm to prevent wrist or neck traps. The design and manufacture of the EnviroRail® Play Sec Railing Gate comply with BS EN 1176 regulations.
The gate offers 50mm ground clearance when correctly installed, opening 90° in and out as a single leaf gate.
Available in various heights and widths, these gates come in dig-in or bolt-down versions, suitable for diverse environments. For the dig-in variant, Post Mix needs to be added to the order, and the bolt-down version requires four M16 x 125mm ground anchor bolts per post.
