Height | 900mm [Installed] |
Access Width | 3000mm |
Total Post Length | 900mm [Bolt Down],1400mm [Dig In] |
Box Sections of Posts | 100x100mm |
Box Sections of Gate Leaf | 50x50mm |
Rail Style | Bow Top - Hollow Tubular |
Post Type | Dig In, Bolt Down |
Gate Hanging Side | Universally Handed |
Material | Pre-Galvanised Steel to BS EN 10346 |
Finish | Polyester Powder Coated |
PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
Name | Quantity |
---|---|
Envirorail® Sliding Gate Leaf | 1 |
Catch Gate Post | 1 |
Hinge Gate Post | 1 |
Adjustable Gate Eyes | 3 |
Ribbed Inserts for Gate Frame | 2 |
Ribbed Inserts for Posts | 2 |

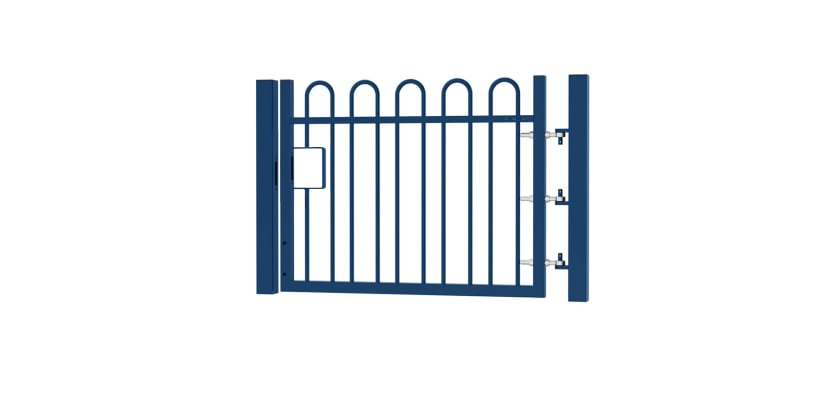

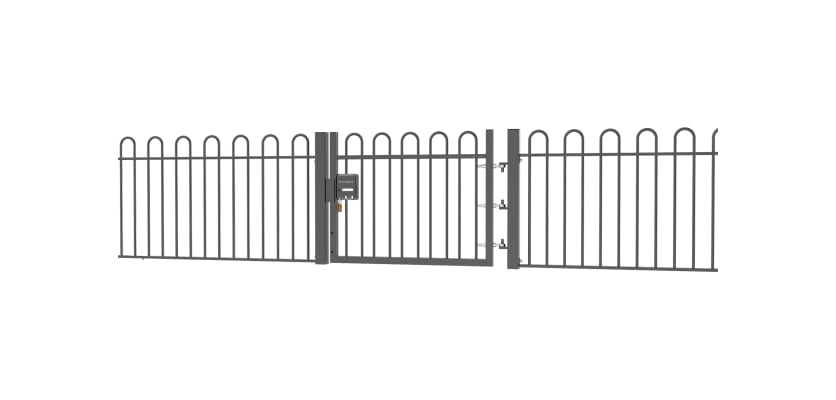

Explore the EnviroRail® collection from First Fence and uncover a diverse range of gate and railing kits designed to elevate both aesthetics and security. Among these offerings, the EnviroRail® Bow Top Gate, standing tall at 0.9 metres in height and spanning 3.0 metres in width, seamlessly integrates with the railing styles within this collection. Its design not only exudes elegance but also ensures a secure boundary wherever it is installed.
The Bow Top Gate is more than just a visually appealing addition; it functions as a reliable barrier system suitable for a variety of environments such as schools, parks, residential and public areas. Its features and benefits are tailored to ensure practicality and longevity in use.
Utilising an eco-conscious construction approach, the single leaf Bow Top gate kit employs a low-weld technique, harnessing custom-made, laser-cut components that form robust bonds when pressed together during assembly. This innovative method minimises high-energy welding requirements, promoting sustainability without compromising on durability.
Crafted from pre-galvanised steel meeting BS 10346 standards and finished with a polyester powder coating, these gates are engineered to withstand outdoor challenges, ensuring prolonged resilience. Customisation options include a range of RAL colours to suit specific preferences.
Each EnviroRail® kit is comprised hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
The EnviroRail® gate system boasts a lightweight, modular design that facilitates swift installation, accommodating various gate hardware kits. Universally handed, these gates offer on-site flexibility in leaf orientation selection. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.
Ease of installation is paramount with pre-drilled frame holes provided for three hinges and a locking drop bolt, if desired. Plastic hole plugs are also included for non-attack face use when a drop bolt isn't utilised.

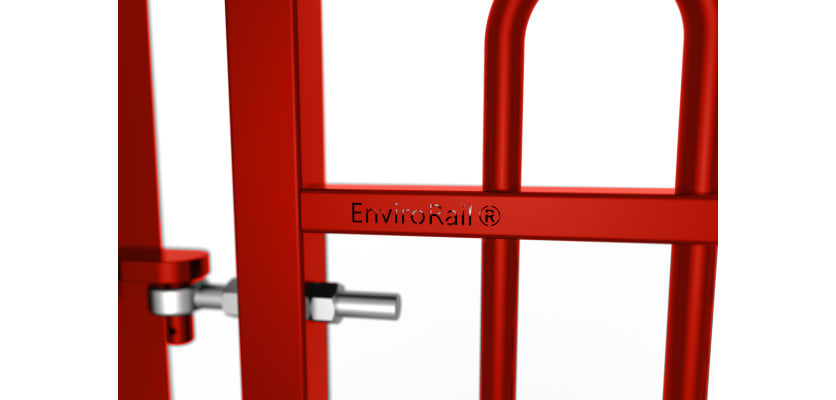

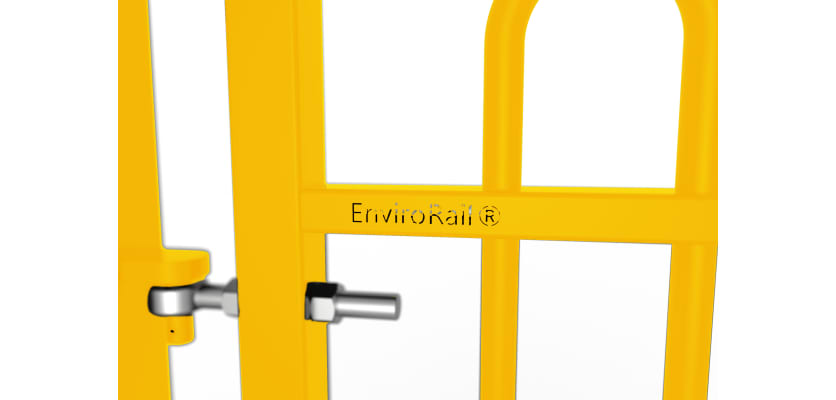

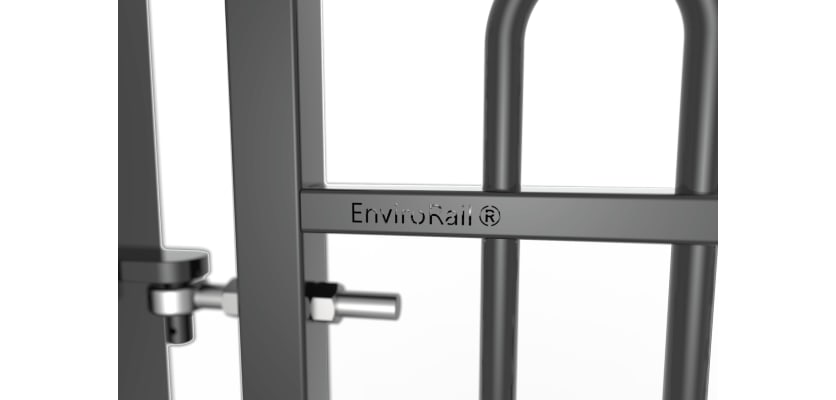

Adhering to BS 12604 safety guidelines, the EnviroRail® Single Leaf Gate Kit includes a gate leaf, hinge post, catch post, and three adjustable gate eyes. Safety is enhanced with the inclusion of three hinges, preventing potential gate fallouts and minimising risks of injury or damage. These are fixed axis hinges with no up or down movement.
Available in various dimensions, this gate kit offers both dig-in and bolt-down versions, catering to diverse installation needs. The dig-in option, suitable for softer ground, requires Post Mix for stability, while the bolt-down version, ideal for harder ground, secures using four M16 x 125mm anchor bolts.
This gate kit is compatible with our security locks and when installed correctly will give up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.
To expand your choices further, First Fence also offers a selection of EnviroRail® Railings and Estate Railings and Gates, providing comprehensive solutions to suit individual preferences and project requirements.
