Height | 900mm [Installed] |
Access Width | 3000mm |
Total Post Length | 900mm [Bolt Down],1400mm [Dig In] |
Box Sections of Posts | 100x100mm |
Box Section of Gate Leaf | 50x50mm |
Rail Style | Vertical Bar - Hollow Tubular |
Post Type | Dig In, Bolt Down |
Gate Hanging Side | Universally Handed |
Material | Pre-Galvanised Steel to BS EN 10346 |
Finish | Polyester Powder Coated |
PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
Name | Quantity |
---|---|
Envirorail® Sliding Gate Leaf | 2 |
Hinge Gate Post | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Inserts for Gate Frame | 4 |
Ribbed Inserts for Posts | 2 |
UniSlide Slider Kit | 1 |
Introducing the enduring sophistication of EnviroRail® Vertical Bar railings and gates, now added into First Fence's expansive product line up. These gates, available in varying widths and heights, provide versatility with options for both dig-in and bolt-down formats, ensuring adaptability to all manner of ground types and terrains. Before making a your purchase, it's advisable to conduct a ground appraisal to ensure the right product selection for your location. Our knowledgeable sales team is poised to assist you; feel free to reach out to them at 01283 512111.

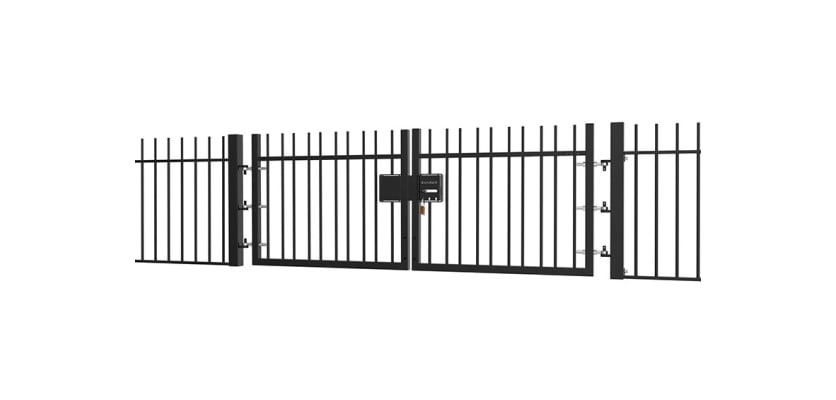

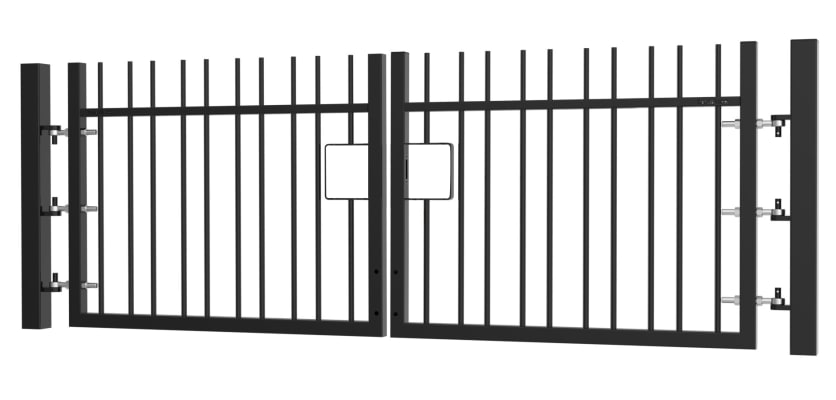

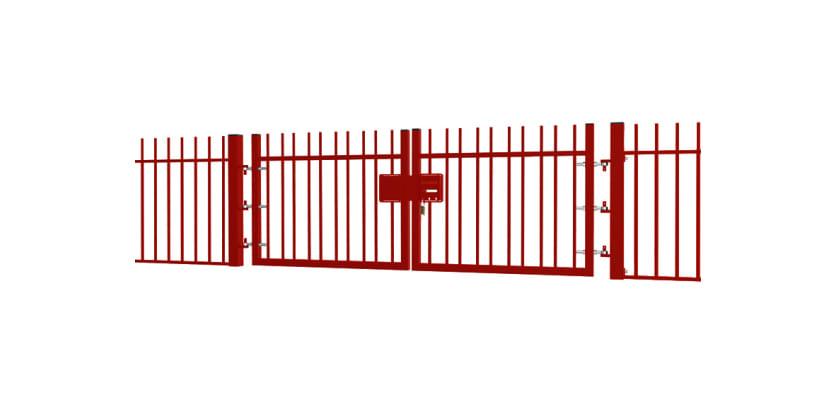

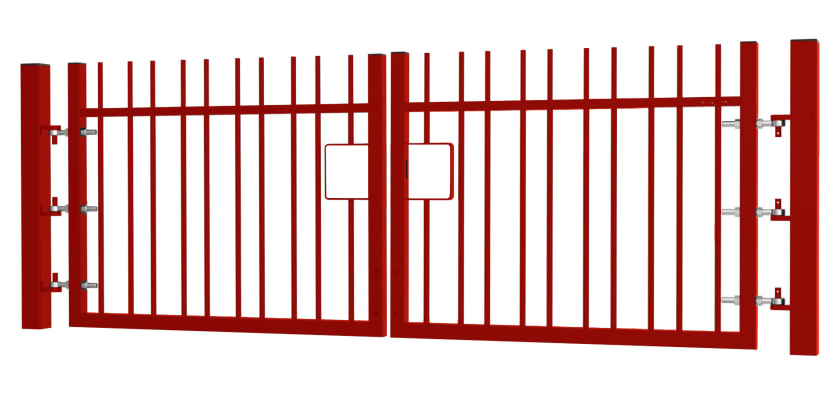

The EnviroRail® Vertical Bar Double Leaf Gate Kit, measuring 0.9m high x 3.0m wide, offers flexibility in access control of your property. Users can opt for one or both leaves in the open or closed positions, enabling customised access limitations and control.
Although this gate kit may appear similar to a standard vertical bar railing gate, its notable feature is its environmentally mindful manufacturing process. Employing a low-weld technique and a series of custom-made, laser-cut pre-galvanised components, the gate achieves strong connections without the need for energy and resource-intensive welding. If reducing environmental impact is a priority, this could be the ideal choice for you.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
First Fence's EnviroRail® Vertical Bar Double Leaf Gates provide a fully modular and relatively lightweight gate solution, ensuring quick installation to meet diverse hardware needs. Universally handed, they offer on-site flexibility without fixed left or right-hand specifications, allowing adjustments if the gates move which is a benefit fixed hardware lacks.
Each gate in the kit arrives pre-drilled with holes, facilitating the attachment of six adjustable gate eye hinges and a locking drop bolt. Plastic hole plugs are included to cover any unused holes on the attack face, and a locking drop bolt is available as an optional addition, highly recommended for the double leaf gate. The kit comprises two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each leaf), adhering to BS 12604 safety guidelines for gate stability, even if one hinge fails. This is crucial for preventing injury to people and property damage. Additionally, the gate hooks are fully welded to the gate post with fixed-axis hinges that eliminate vertical movement. The UniSlide Slider Double Kit comes included with all EnviroRail double gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Available in various heights and widths, the gate kits come in both dig-in and bolt-down versions, catering to installation needs in diverse locations. The dig-in variant suits softer terrain, requiring Post Mix for secure installation, while the bolt-down option is ideal for harder ground surfaces, secured using four M16 x 125mm anchor bolts per post.
Compatible with our security locks, this gate kit allows up to 30mm of adjustment from the catch post when installed correctly, with gates having 50mm ground clearance.
Alongside this gate kit, First Fence provides EnviroRail® Railings, Estate Railings, and Gates. Elevate security by incorporating a robust padlock as an extra precautionary measure.
For guidance in selecting the ideal product, reach out to the First Fence sales team today at 01283 512111 or use the convenient online chat tool.
