Height | 900mm [Installed] |
Access Width | 2000mm |
Total Post Length | 900mm [Bolt Down],1400mm [Dig In] |
Box Sections of Posts | 100x100mm |
Rail Style | Flat Top - Hollow Tubular |
Post Type | Dig In, Bolt Down |
Gate Hanging Side | Universally Handed |
Material | Pre-Galvanised Steel to BS EN 10346 |
Finish | Polyester Powder Coated |
PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
Name | Quantity |
---|---|
Envirorail® Sliding Gate Leaf | 1 |
Catch Gate Post | 1 |
Hinge Gate Post | 1 |
Adjustable Gate Eyes | 3 |

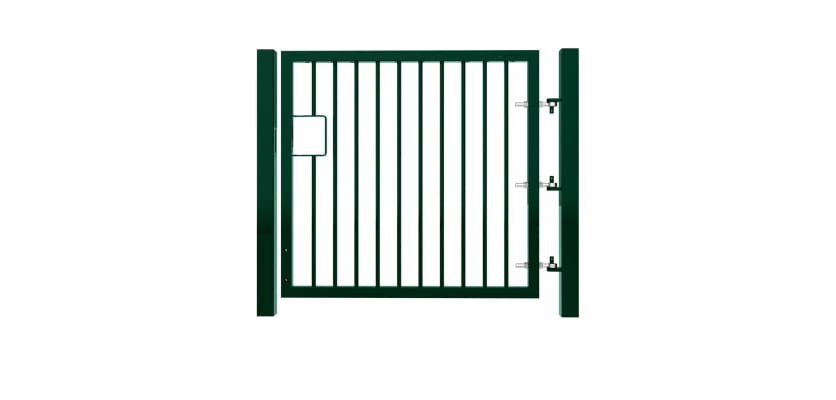

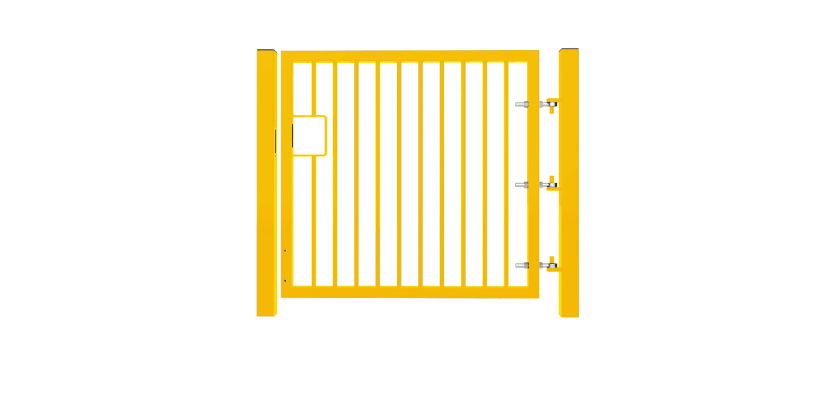

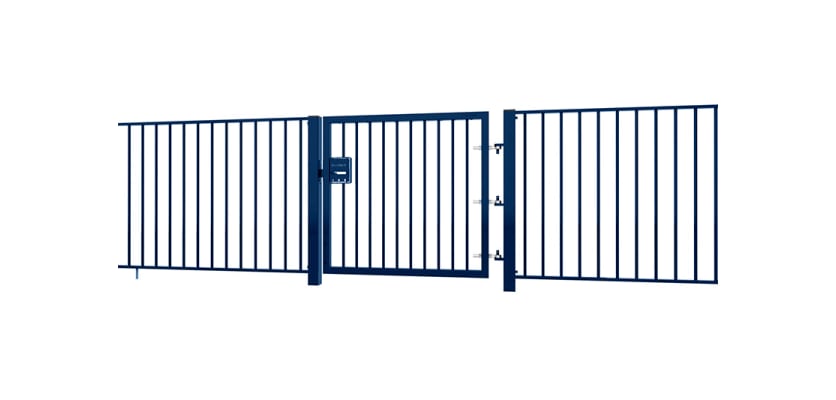

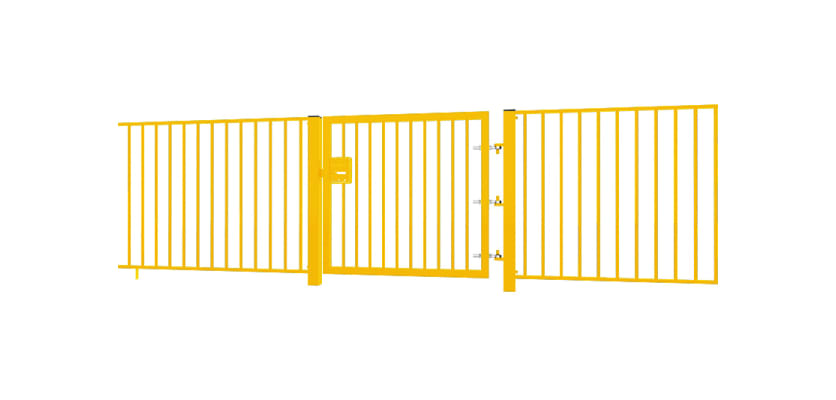

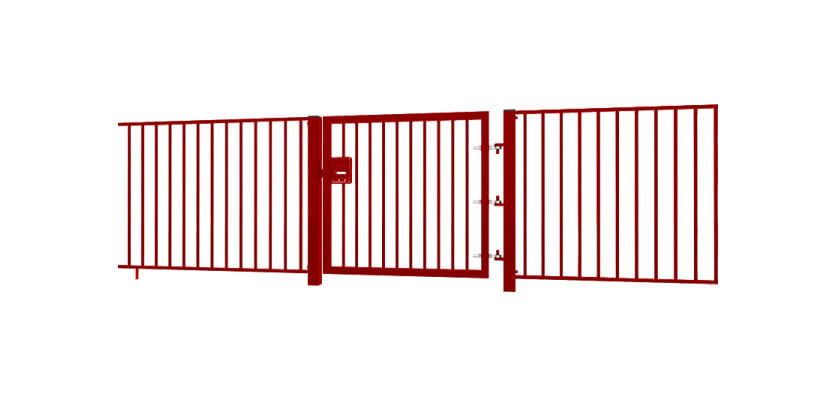

First Fence is excited to present the latest addition to our diverse range of railing options - the EnviroRail® Flat Top Single Leaf Gate Kits. These Flat Top Railings, also referred to as flat handrails or flat bar railings, offer a contemporary railing solution ideal for many types of setting. Recognised for their flat top surface, these railings have a modern design that lifts regular fencing into an appealing and decorative structure. The tidy, flat top profile enhances its look, achieving an ideal balance between security and an appealing ambiance. This makes them a fitting choice for both public and urban areas.
The EnviroRail® Flat Top Railing Gate may look to be a standard product initially, however it sets itself apart from similar products in the market by its environmentally aware manufacturing procedure. Taking a low-weld approach, this system incorporates a series of laser-cut pre-galvanised elements that interlock firmly during assembly, lowering the reliance on energy-intensive welding. This eco-conscious approach resonates with customers who prioritise minimising ecological footprints during production, and it's a feature that First Fence takes pride in providing.
Constructed from pre-galvanised steel that meets BS 10346 standards, and then further coated with polyester powder, the gates have notable resilience, and are able to withstand sustained exposure to harsh outdoor elements and will provide years of dependable use.
EnviroRail® Gates present a fully modular and lightweight gate solution, enabling fast installation of a variety of hardware. They are universally handed, which removes the need for fixed left or right-hand specifications for on-site flexibility and easy decision-making during installation. This modular functionality ensures adjustability, accommodating gate movement, a feature that fixed hardware does not give.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
The gate kit includes an EnviroRail® gate leaf, hinge post, catch post, and three adjustable gate eyes, meeting BS 12604 safety guidelines to ensure stability even in the unlikely event of one single hinge failing. Additionally, the gate hooks are fully welded to the gate post, providing fixed axis hinges eradicating vertical movement.
Every gate is equipped with pre-drilled holes, streamlining the process of attaching the three adjustable gate eyes and a drop bolt. Plastic hole plugs are included to cover any unused holes on the attack face, preventing water accumulation inside the structure and enhancing the gate's overall appearance.
Designed for versatility, the EnviroRail® Flat Top Gate Kit is available in an extensive choice of heights and widths, including a double-leaf variant, ensuring we have the perfect gate for your needs. The gate kits come in dig-in and bolt-down versions, suitable for installation in diverse locations. The dig-in variant suits softer ground types and requires Post Mix for secure installation, while the bolt-down option is ideal for harder ground surfaces, secured using four M16 x 125mm anchor bolts per post. Before purchasing your gate, a ground assessment is advisable to determine the precise gate post style needed.
When correctly installed, the gate allows up to 30mm of adjustment from the catch post, with a 50mm ground clearance.
For a secure finish, why not add a Slider Kit to ensure your gate stays closed? The modularity of this gate range makes it compatible with all our security locks, also available from First Fence. An anti-climb Locking Plate can be added for enhanced security, along with a heavy-duty padlock.
Furthermore, First Fence provides Railings, Estate Railings, and Gates, offering a comprehensive range for various security needs.
If you have any questions or need help choosing the ideal product, our sales team is available to assist you. Reach out to us at 01283 512111 or utilise our user-friendly online chat tool. Enhance your fencing experience with First Fence's EnviroRail® Flat Top Gate range today!
