CAB Hydro KSHD.50AC Above Ground Hydraulic Single Leaf Swing Gate Operator - Up to 5.0m
| Motor Supply | 230 Vac |
| Gate Usage | Commercial |
| Motor Type | Hydraulic |
| Duty Cycle | 99% |
| Built In Physical Stops | No |
| Fixing Bracket Type | Screw On |
| Protection Level | IP55 |
| Encoder | No |
| Max Gate Width | 5.0m |
| Maximum Thrust | 5000 N |
| Name | Quantity |
|---|---|
| HD.50AC Above Ground Hydraulic Swing Gate Operator | 1 |
| Brainy 230v Control Panel | 1 |
| Pupilla Hard Wired Photocells [pair] | 1 |
| TO.GO2VA Transmitter | 2 |
CAB Hydro KSHD.50AC Above Ground Hydraulic Single Leaf Swing Gate Operator - Up to 5.0m
The CAB Hydro KSHD.50AC is a complete kit equipped with everything required to convert a manual gate into a fully automated system.

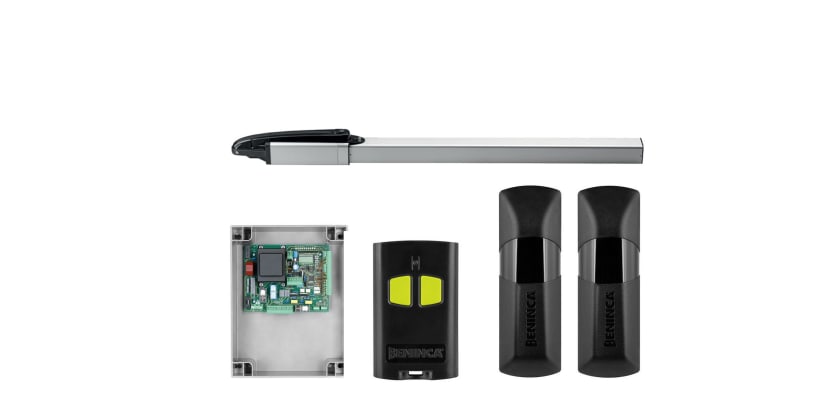

Kit Contents

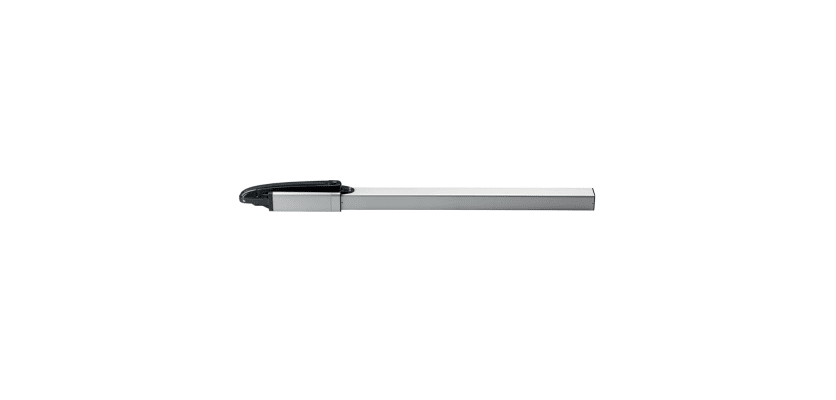

HD.50AC Above Ground Hydraulic Swing Gate Operator
The HD.50AC Above-Ground Hydraulic Swing Gate Operator is a flexible solution for gates up to 5.0m wide (per leaf). This irreversible operator maximises security and reliability by blocking unauthorised manual manipulation; once opened or closed, the gate cannot be adjusted manually. Ideal for high-security locations like airports, industrial sites, or secure facilities, its design ensures the gate remains securely in position until activated by authorised personnel.

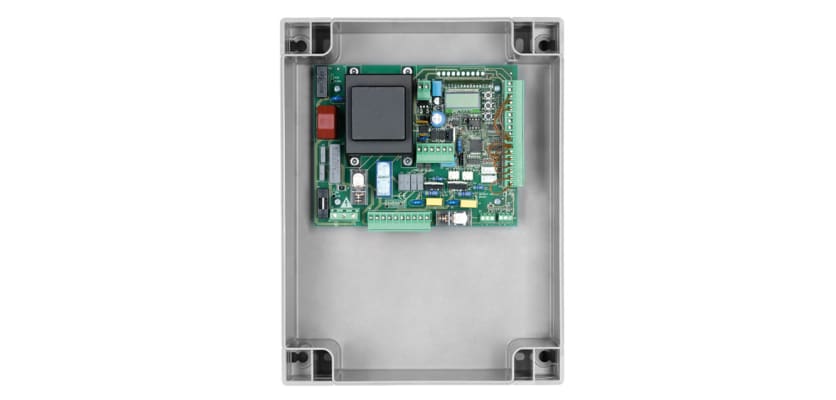

Brainy 230v Control Panel
The BRAINY 230V full-featured control panel is built for one or two motors, making it perfect for swing gates, hydraulic operators, and industrial folding doors. The built-in display simplifies installation, and the control panel provides flexible operating modes to meet your specific needs.

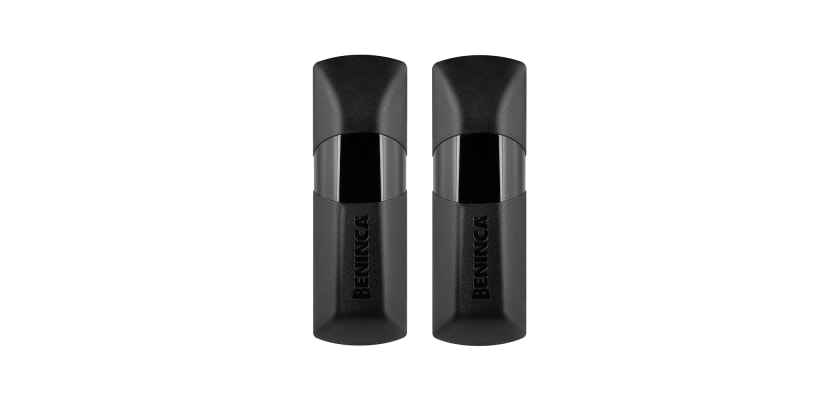

PUPILLA Hard Wired Photocells - 1 pair
PUPILLA photocells are essential for gate automation, providing safety by creating an invisible beam near gate openings. They detect obstacles or motion, prompting the gate to stop or reverse to prevent accidents and damage.
TO.GO2VA Transmitter
The TO.GO2VA is a versatile transmitter designed for gate automation systems. It can control two independent functions or gates, making it ideal for properties with multiple gates or where separate entry and exit commands are required. This kit comes with 2 transmitters.
