2.4m High x 6.0m Wide AdaptiGuard® Double Leaf Vehicle Site Gate Kit
| Height | 2.4m [Installed, 3.1m actual length] |
| Width | 6.0m |
| Depth | 40mm |
| Box Section of Posts | 70 x 70 x 3mm |
| Post Type | Dig In |
| Thickness of Wires | 3mm [50 x 50mm mesh openings] |
| Material | Pre-Galvanised Steel |
| PPC Colours | Green and Black as Standard, other colours available on request |
| Standards | BS EN 10346 [Galvanising] |
| Standards | BS 12604 [When used with a Gate Safety Tether] |
| Name | Quantity |
|---|---|
| AdaptiGuard® Leaf [Left Hand Hung, 2.4m x 3.0m] | 1 |
| AdaptiGuard® Leaf [Right Hand Hung, 2.4m x 3.0m] | 1 |
| AdaptiGuard® Hinge Post [3.1m x 70 x 70mm, c/w Ribbed Insert] | 2 |
| Adjustable Gate Eyes [M18 x 150mm c/w 20mm nut] | 4 |
| First Fence Slider Bolt | 1 |
| Universal Gate Drop Bolt [22mm diameter] | 2 |
| Site Gate Drop Bolt Stopper Plate | 2 |
| Stopper Plate Socket Box | 2 |
2.4m High x 6.0m Wide AdaptiGuard® Double Leaf Vehicle Site Gate Kit

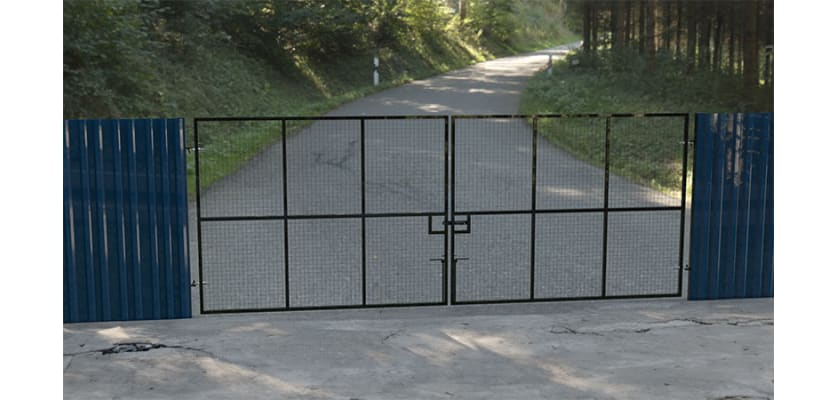

A double leaf vehicle site gate is frequently employed to manage vehicle access at all kinds of locations, including commercial, industrial, or institutional sites. It can also play a key role in the construction industry, acting as an access point for deliveries and ensuring site safety. However, its utility extends to any setting that requires the use of double-leafed vehicle gates.

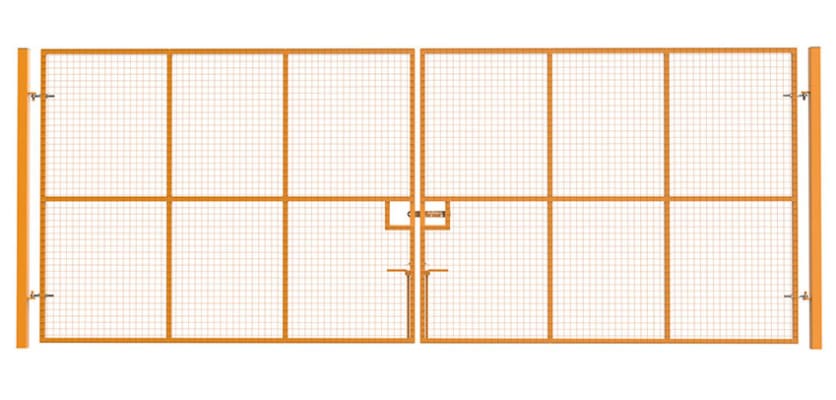

The dual-leaf format comprises two panels that swing open and closed, creating a broad pathway for vehicles to enter or exit. This configuration is especially beneficial for locations requiring effective vehicle traffic management and the accommodation of large vehicles like trucks or vans. They also have a security function, keeping a site safe outside of working hours.
Double leaf vehicle site gates present multiple benefits compared to standard gates. They feature wide openings, facilitating the seamless passage of vehicles, and can be outfitted with diverse access control mechanisms. Additionally, they offer customisation options such as anti-climb measures or signage to augment security measures.
Features and Benefits
The 2.4m High x 6.0m Wide AdaptiGuard® Double Leaf Vehicle Gate Kit from First Fence is available in dig-in format and will serve as an ideal entry and exit solution for your site. Manufactured from pre-galvanised steel and powder coated in black or green as standard, this gate is built to last and, when installed properly, will give many years of faithful service with minimal maintenance required.
The AdaptiGuard® Double Leaf Site Gate features a lightweight 40 x 40mm square hollow section construction, reducing strain on operators and ensuring durability even under heavy use. Its modular design allows for the installation of various compatible locking mechanisms and keeps without any modifications, utilising the pre-lasered holes on the posts and leaves. This is a dig-in format gate and will require Post Mix for a robust installation; we recommend four bags per post. The holes must be at least 700mm deep x 300mm x 300mm.

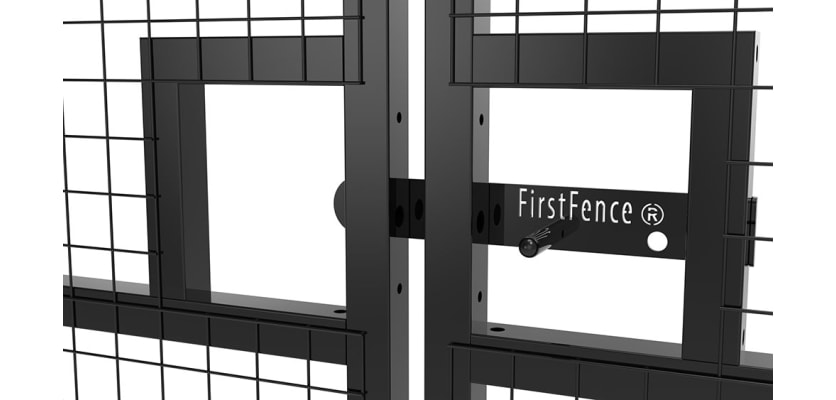

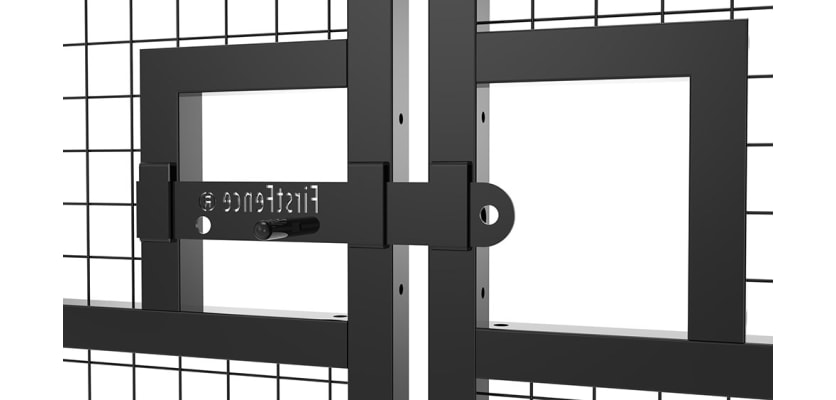

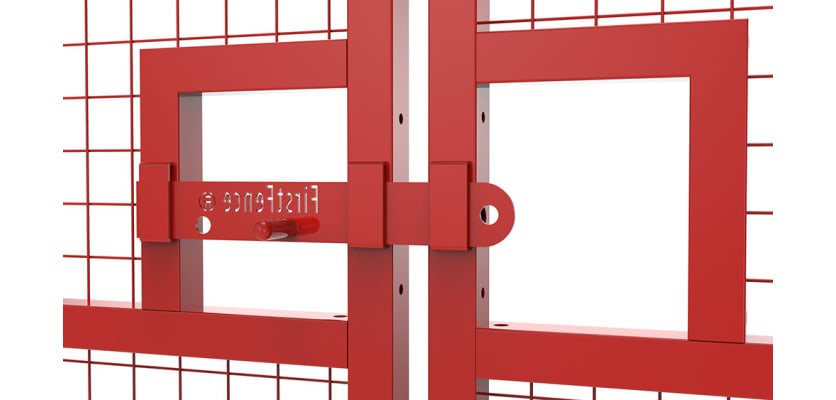

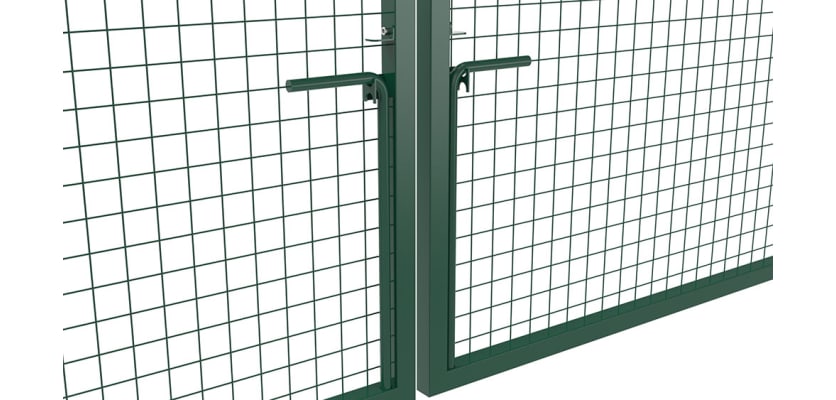

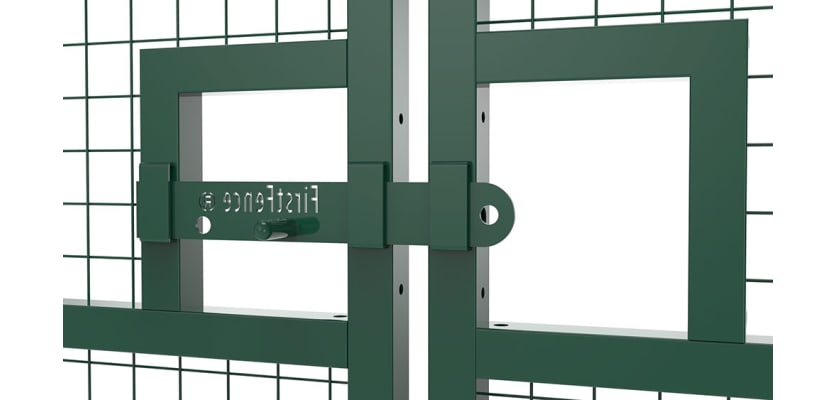

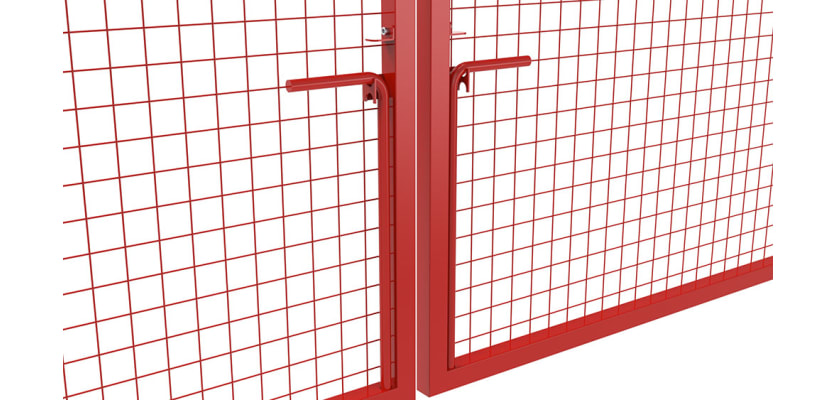

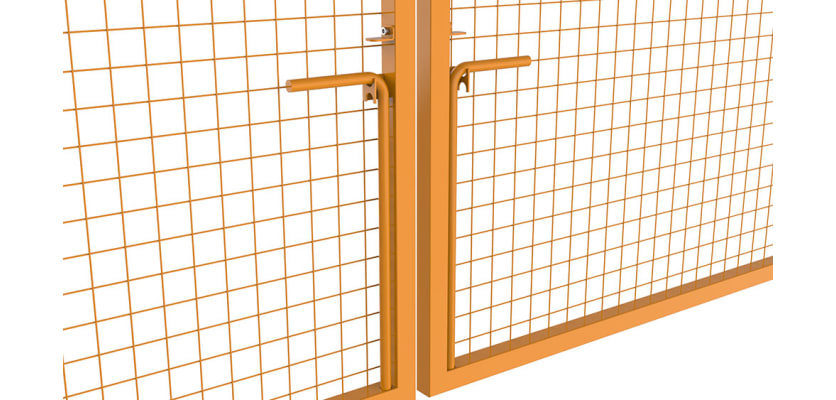

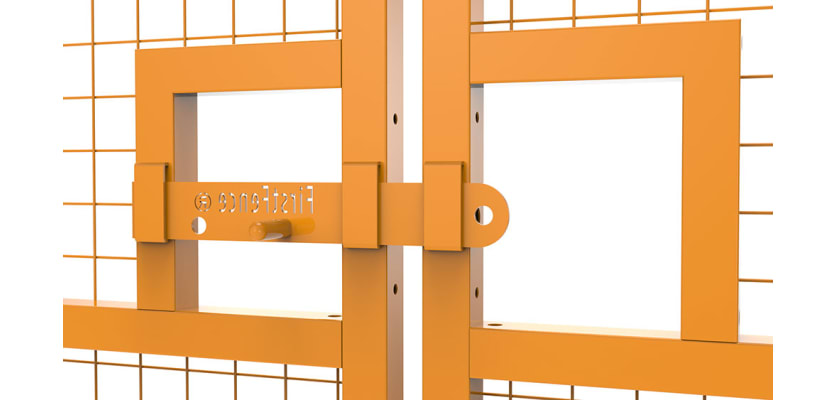

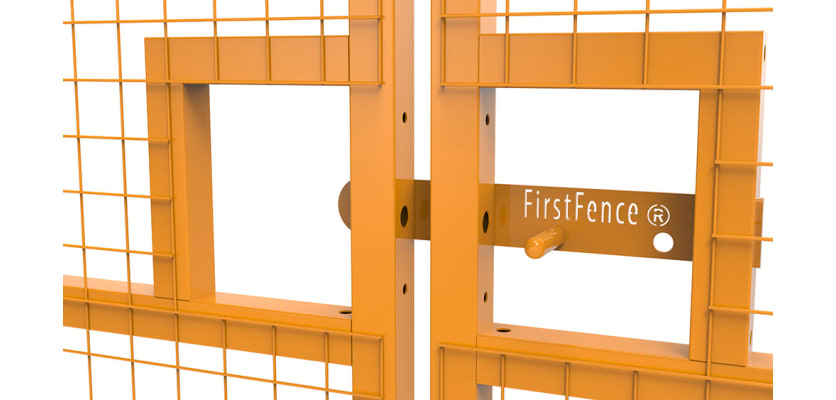

The gate is equipped with a robust slider that can be securely locked with a padlock, ensuring contact with both leaves. This feature reduces the risk of prying or forced entry through the site gates. Additionally, it includes a flush-fitted drop bolt, accompanied by an anti-lift plate to deter theft. The sleek design facilitates convenient storage and transportation of your site gates.
The gate has pre-drilled 15mm holes to take the First Fence 4mm safety tether, helping your gate comply with the BS 12604 standards, which keep the gate safe in the unlikely event of a single point hinge failure.

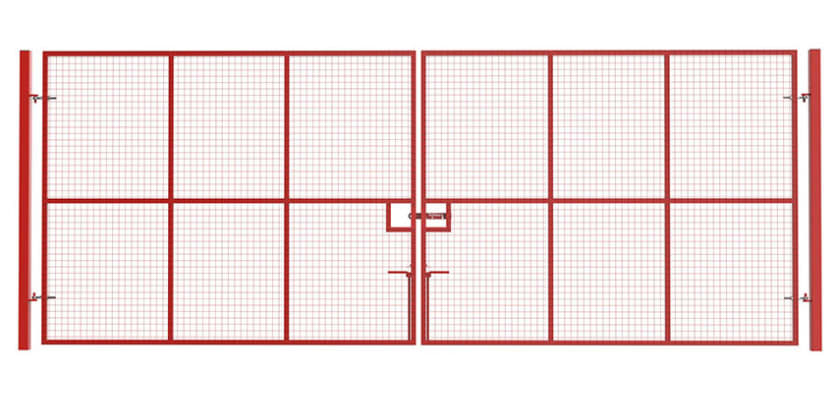

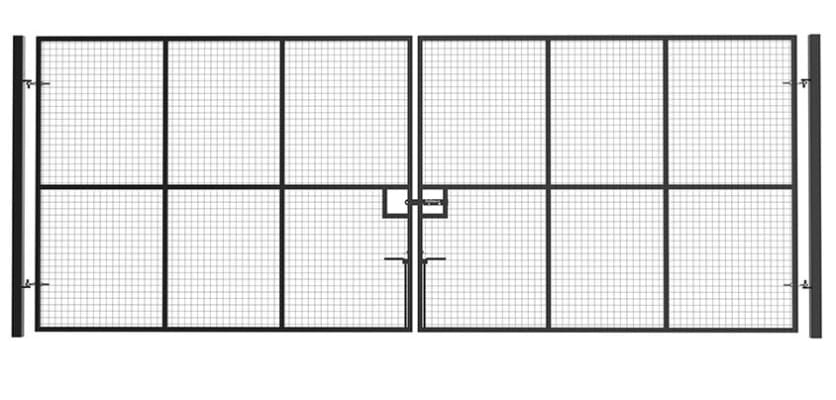

The gates are available in standard green or black finishes, yet they can be powder coated in your corporate colours upon request, guaranteeing that your site gates leave a memorable first impression. Please be aware that custom requests incur an additional charge and lead time. Feel free to contact us to discuss your specific requirements. This fully finished site gate will enhance the appearance of your site and positively represent your brand.
Green or black options are readily available in stock and can be delivered promptly to meet your timeline!
