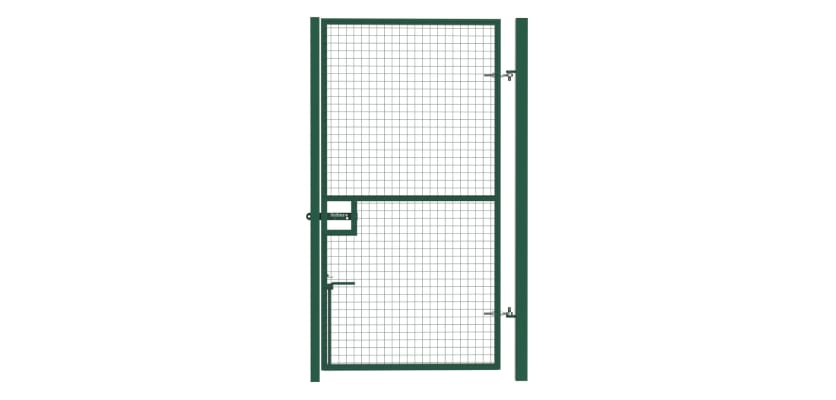

2.4m High x 1.2m Wide AdaptiGuard® Single Leaf Pedestrian Site Gate Kit
| Height | 2.4m [Installed, 3.1m actual length] |
| Width | 1.2m |
| Depth | 40mm |
| Box Section of Posts | 70 x 70 x 3mm |
| Post Type | Dig In |
| Thickness of Wires | 3mm [50 x 50mm mesh openings] |
| Material | Pre-Galvanised Steel |
| PPC Colours | Green and Black as Standard, other colours available on request |
| Standards | BS EN 10346 [Galvanising] |
| Standards | BS 12604 [When used with a Gate Safety Tether] |
| Name | Quantity |
|---|---|
| AdaptiGuard® Gate Leaf [Right Hand Hung, 2.4m x 1.2m] | 1 |
| AdaptiGuard® Hinge Post [3.1m x 70 x 70mm] | 1 |
| AdaptiGuard® Catch Post [3.1m x 70 x 70mm] | 1 |
| Adjustable Gate Eyes [M18 x 150mm c/w 20mm nut] | 2 |
| First Fence Slider Mechanism | 1 |
| Universal Gate Drop Bolt [22mm diameter] | 1 |
| Site Gate Drop Bolt Stopper Plate | 1 |
| Stopper Plate Socket Box | 1 |
2.4m High x 1.2m Wide AdaptiGuard® Single Leaf Vehicle Site Gate Kit

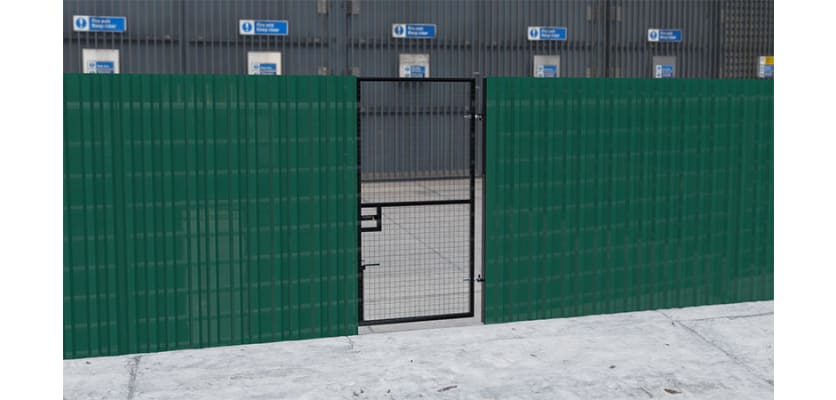

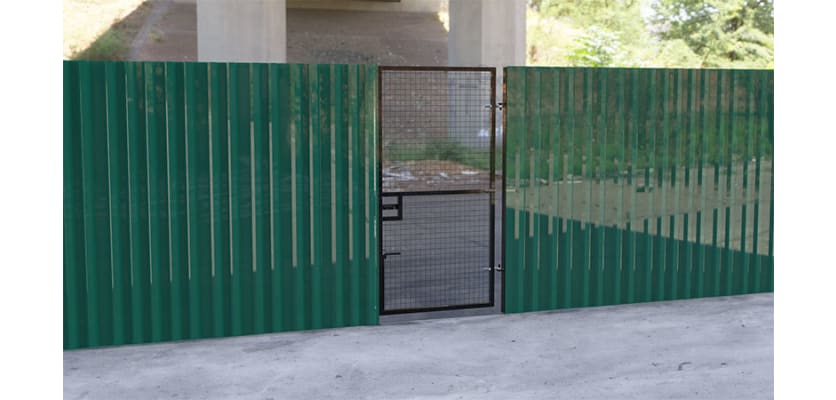

Pedestrian site gates, designed for foot traffic, provide effective and secure entry and exit points on construction sites, industrial facilities, and other locations where controlling pedestrian access is essential for safety and security. They can be outfitted with access control systems, such as keypads or card readers, to restrict entry to authorised personnel only. Constructed to endure frequent use and harsh weather conditions, they ensure long-term reliability.
Features and Benefits

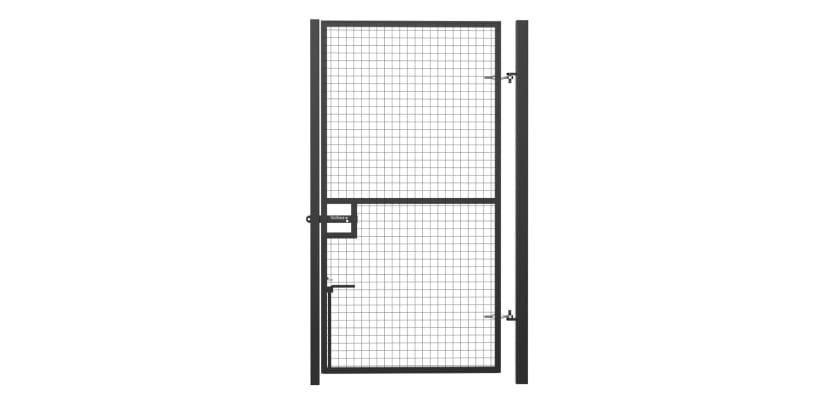

The 2.4m High x 1.2m Wide AdaptiGuard® single leaf pedestrian site gate kit from First Fence is available in a dig-in format and will serve as an ideal entry and exit solution for your site. Manufactured from pre-galvanised steel and powder coated in black or green as standard, this gate is built to last and, when installed properly, will give many years of faithful service with minimal maintenance required.

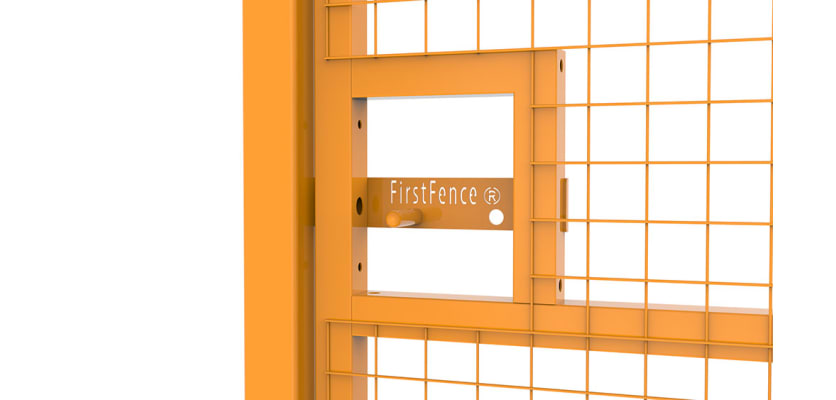

The AdaptiGuard®Single Leaf Site Gate features a lightweight 40 x 40mm square hollow section construction, reducing strain on operators and ensuring durability even under heavy use. Its modular design allows for the installation of various compatible locking mechanisms and keeps without any modifications, utilising the pre-lasered holes on the posts and leaves. This is a dig in format gate and will require Post Mix for a robust installation; we recommend four bags per post. The holes must be at least 700mm deep x 300mm x 300mm.

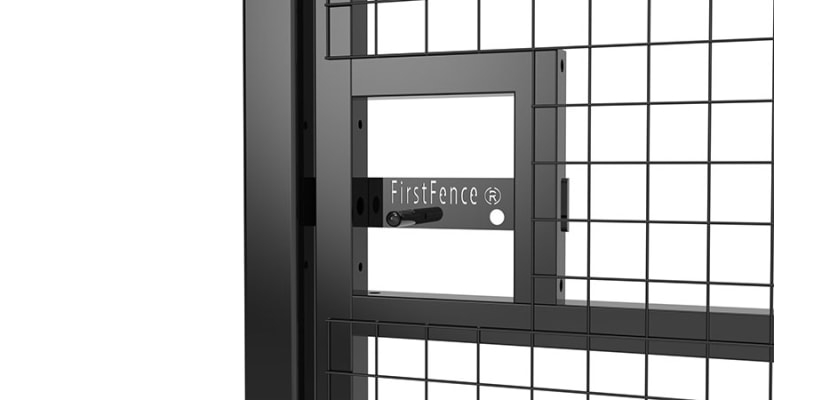

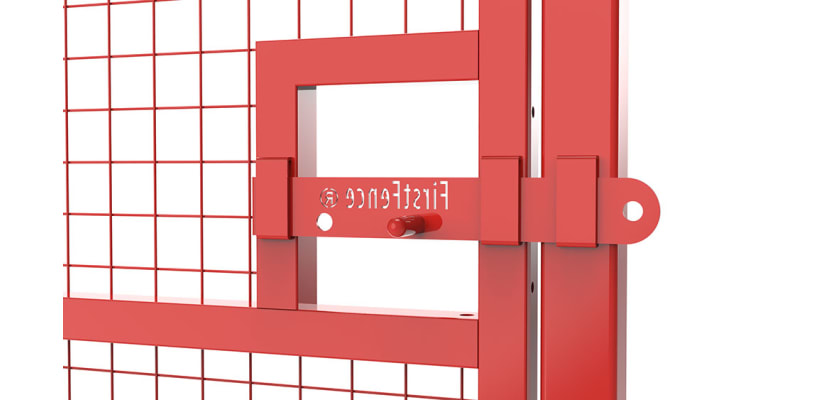

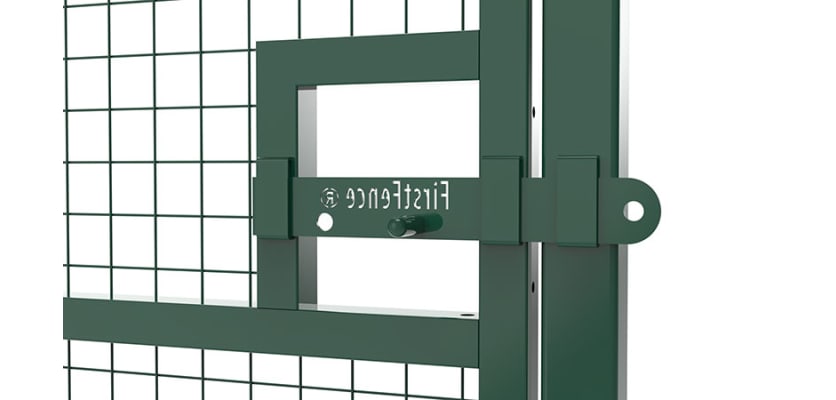

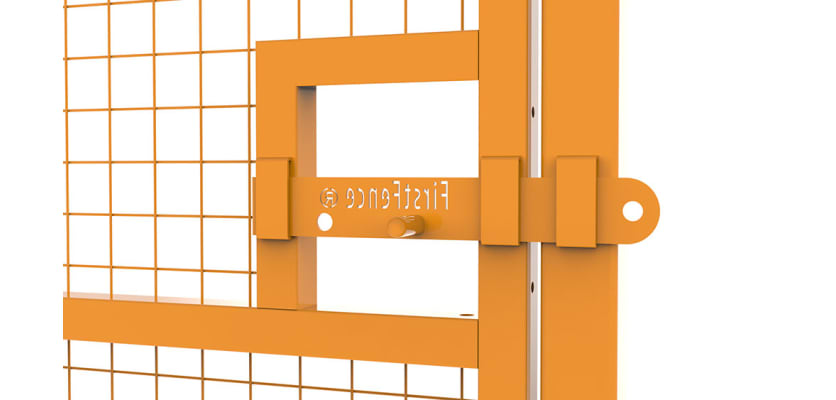

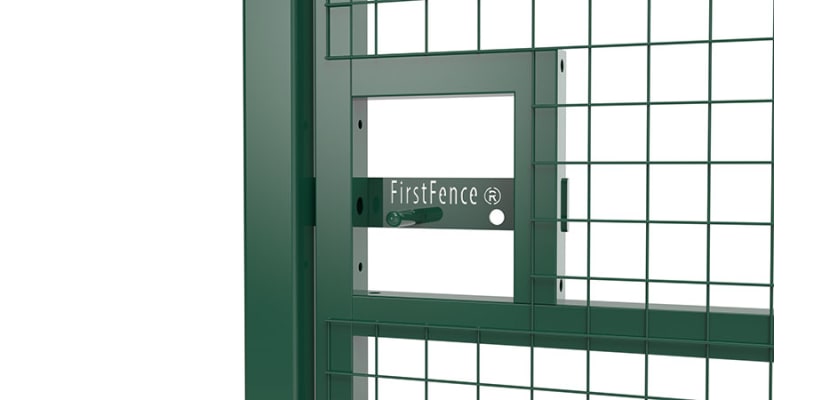

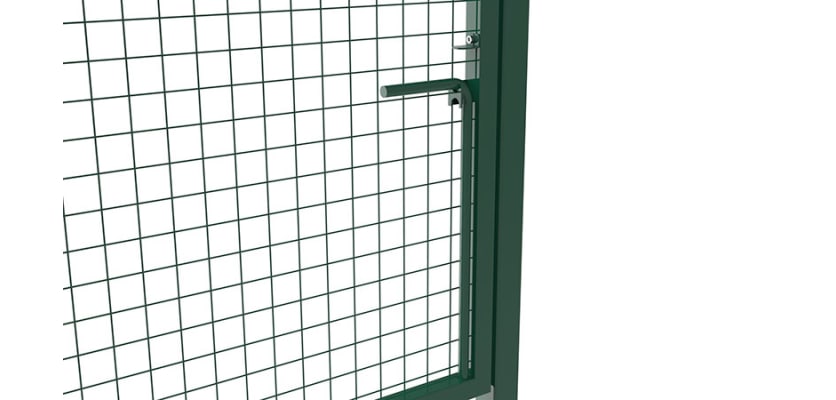

The gate is equipped with a robust slider that can be securely locked with a padlock, ensuring contact with both leaves. This feature reduces the risk of prying or forced entry through the site gates. Additionally, it includes a flush-fitted drop bolt, accompanied by an anti-lift plate to deter theft. The sleek design facilitates convenient storage and transportation of your site gates.
The gate has pre-drilled 15mm holes to take the First Fence 4mm safety tether, helping your gate comply with the BS 12604 standards, which keep the gate safe in the unlikely event of a single point hinge failure.

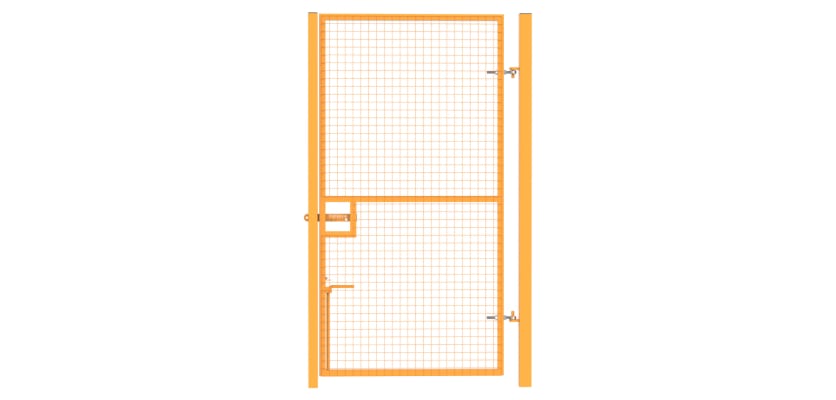

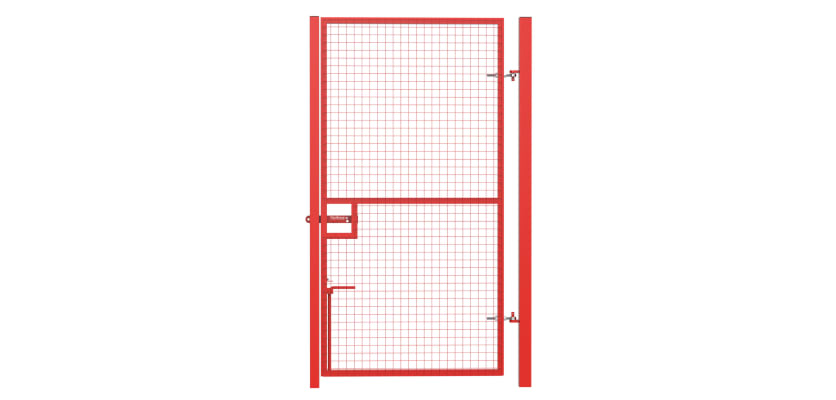

The gates are available in standard green or black finishes, yet they can be powder coated in your corporate colours upon request, guaranteeing that your site gates leave a memorable first impression. Please be aware that custom requests incur an additional charge and lead time. Feel free to contact us to discuss your specific requirements. This fully finished site gate will enhance the appearance of your site and positively represent your brand.
Green or black options are readily available in stock and can be delivered promptly to meet your timeline!
First Fence has an extensive line of gates from palisade, mesh and railing, to specialist, custom or composite, we are sure to have just what you need!
