Height | 1200mm [above ground] |
Total Width | 1270mm |
Access Width | 1000mm |
Box Sections of Posts | [Hinge Post: 80mm x 80mm] [Catch Post: 80mm x 80mm] |
Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Brown - Other custom RAL colours are available |
Name | Quantity |
---|---|
Sliding Gate Leaf | 1 |
Catch Gate Post | 1 |
Hinge Gate Post | 1 |
Adjustable Gate Eyes | 2 |
Ribbed Inserts [For Gate Posts] | 2 |
Ribbed Inserts [For Gate Frame] | 2 |

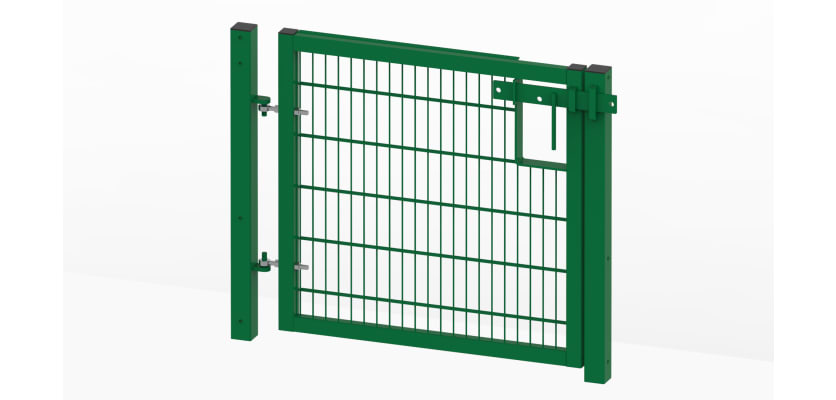

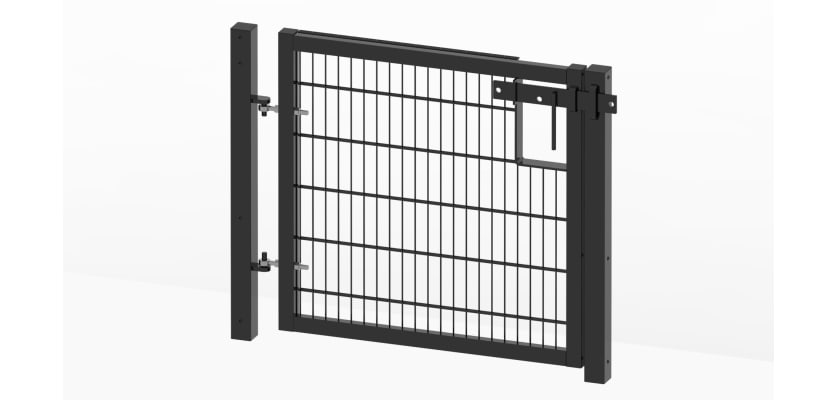

Twin mesh or 868 mesh is a welded mesh system that has a very distinct appearance of 6mm vertical wires crossing over 8mm horizontal wires and is designed to prevent anyone getting a grip with hands and feet and attempting to scale the boundary. The closeness of the wires prevents objects being passed through, yet it still allows excellent visibility and is difficult to cut through. It acts as a superb deterrent to anyone considering attempting to break into your property particularly in the taller heights.
Mesh wire systems are often seen in locations such as schools and sports grounds, industrial buildings, playgrounds and other low to medium security venues. When added to a mesh fencing system these gates make a superb access point to your premises and can be padlocked to increase security.
These gates are 1.2m high and come in widths of 1.0m to 5.0m and can be erected on both hard and soft ground with bolt down or dig in posts as appropriate.
Polyester Powder Coating in a range of RAL colours is also available, to add further protection but also perhaps to match corporate branding and to give a sleek and pleasing look to the fence line.
The gate comes with a catch and hinge gate post, adjustable gate eyes and ribbed inserts for the frame and post. Post Mix or ground anchor bolts can be purchased separately according to your needs.
Please Note: When attaching your gate to our mesh fencing, additional M8 x 40mm bolts and mesh fencing clips will be required.
Everything you need to erect your new single leaf gate is included in this kit with the exception of post mix and ground anchor bolts. We understand how important it is to have a uniform look, which is why we also have a range of mesh fencing accessories that we sell separately, so you can amend your fencing system when necessary.
