Product Description
Standard Manual Raise Barrier
The Standard Manual Raise Barrier is a simple, reliable and cost-effective way to control vehicle access to car parks, entrances and restricted areas. With gas-assisted operation, it can be raised and lowered smoothly with one hand, making it ideal for sites where barriers are used regularly.
Smooth, Easy Operation
Two gas-assisted dampers reduce the effort needed to raise and lower the barrier, providing smooth and controlled movement without the need for powered automation.
Ergonomic grip handles make the barrier comfortable to operate, while the gas struts provide additional support and stability during use.
Key Benefits
- Gas-assisted manual operation
- Two gas struts for smooth movement
- Easy one-handed operation
- Ergonomic grip handles
- Suitable for regular daily use
- Cost-effective alternative to automated barriers
Quick & Simple Installation
The barrier is supplied fully assembled and ready to bolt down, making installation straightforward. It is designed for hard-surface installation and comes complete with the required fixing bolts.
With level and correctly aligned foundations, one engineer can install the barrier, helping to reduce installation time and labour costs.
Lockable in Open & Closed Positions
The Standard Manual Raise Barrier can be secured in both the open and closed positions, giving you greater control over vehicle access.
A padlock is supplied, and the main barrier post also features an additional locking point. A lockable bolt-down end rest is included as standard.

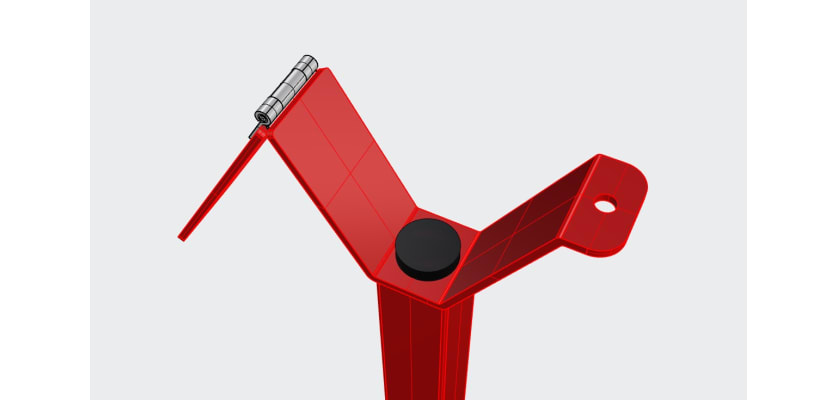

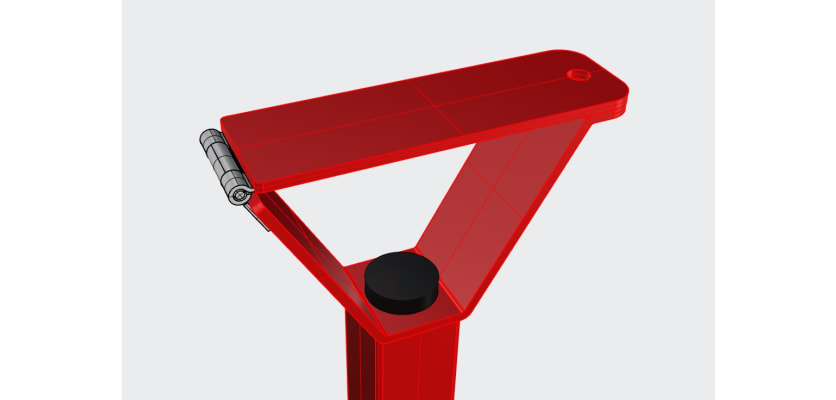

For additional flexibility, the standard end rest can be replaced with an optional adjustable-height collapsible pogo support. Also known as an adjustable swinging beam support, this attaches to the end of the barrier arm and supports it when closed.
Durable Protective Finish
The barrier is finished with a polyester powder coating to help protect it against weathering and everyday use.
Red is supplied as standard, with a red and white barrier pole. A yellow finish with a yellow and black pole is also available as a non-standard option at an additional cost.
Key Features
- Manual raise barrier
- Gas-assisted operation
- Two gas struts
- One-handed opening and closing
- Ergonomic grip handles
- Fully assembled and ready to install
- Bolt-down design
- Fixing bolts supplied
- Suitable for hard-surface installation
- Lockable in open and closed positions
- Padlock supplied
- Lockable bolt-down end rest included
- Optional adjustable-height collapsible pogo support
- Red polyester powder coating with red and white pole as standard
- Yellow and black option available at additional cost
Ideal Applications
The Standard Manual Raise Barrier is suitable for controlling vehicle access at:
- Car parks
- Private entrances
- Commercial premises
- Industrial sites
- Service yards
- Private roads
- Vehicle entrances
- Restricted access areas
Contact Us
If you have questions about the Standard Manual Raise Barrier or need help finding the right vehicle access control solution, our team is happy to help. Call us on 01283 512 111, email sales@firstfence.co.uk, or speak to us through our online chat facility.
Specifications & Downloads
| Pole Lengths | 2.0m, 2.5m, 3.0m, 3.5m, 4.0m, 4.5m, 5.0m, 5.5m, 6.0m, 6.5m, 7.0m |
| Dimensions | Pedestal 1110 x 444 x 300mm, Pole 96mm x 64mm oval Shaped |
| Unit Weight | Pedestal and pole arm: 79kg (excluding Counterweights) |
| Finish | Zinc Plated and Polyester Powder Coated Red [standard] |
| Material | Steel and Aluminium |
What's Included
| Name | Quantity |
|---|---|
| Barrier Pole Pedestal | 1 |
| Barrier Pole and Fishtail Counterweight | 1 |
| Barrier Pole End Rest | 1 |
| M16 Anchor Shield Bolts | 4 |
| M12 Anchor Bolts | 4 |
| Brass 60mm Long Shackle Padlock | 1 |
| Padlock keys | 3 |
Specifications & Downloads
| Pole Lengths | 2.0m, 2.5m, 3.0m, 3.5m, 4.0m, 4.5m, 5.0m, 5.5m, 6.0m, 6.5m, 7.0m |
| Dimensions | Pedestal 1110 x 444 x 300mm, Pole 96mm x 64mm oval Shaped |
| Unit Weight | Pedestal and pole arm: 79kg (excluding Counterweights) |
| Finish | Zinc Plated and Polyester Powder Coated Red [standard] |
| Material | Steel and Aluminium |
What's Included
| Name | Quantity |
|---|---|
| Barrier Pole Pedestal | 1 |
| Barrier Pole and Fishtail Counterweight | 1 |
| Barrier Pole End Rest | 1 |
| M16 Anchor Shield Bolts | 4 |
| M12 Anchor Bolts | 4 |
| Brass 60mm Long Shackle Padlock | 1 |
| Padlock keys | 3 |
