Height | 1800mm [Installed] |
Access Width | 10000mm |
Box Sections of Posts | 200 x 200mm |
Gate Hanging Side | Right Hand Hung (From Outside Looking In) |
Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |
Material | Hot Dip Galvanised Steel |
PPC colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 |
Name | Quantity |
---|---|
Sliding Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Hinge Gate Post | 2 |
Drop Bolts | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Insert for Gate Post | 2 |
Ribbed Insert for Gate Frame | 4 |
Ground Anchor Bolts [Bolt Down Version] | 8 |

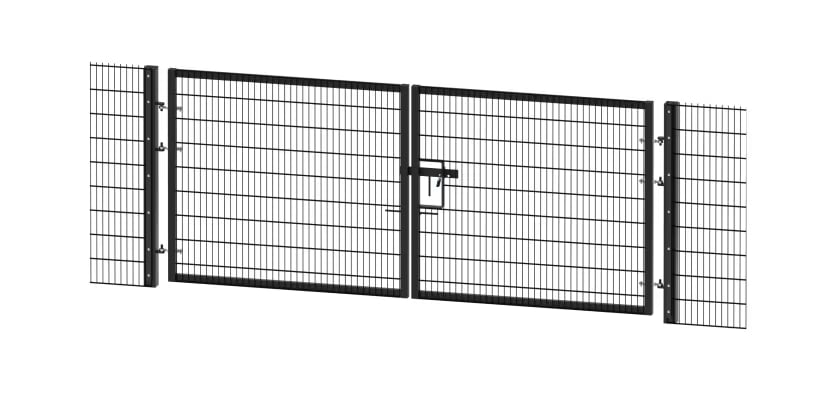

Explore the ProFence® SR1 (A1) LPS 1175 1.8m x 10.0m 868 Mesh Double Leaf Gate Kit, a robust security solution designed to safeguard your valuable property and assets from opportunistic threats.
At First Fence, we take pride in offering the ProFence® SR1 (A1) LPS 1175 868 Mesh Gate Kit as part of our extensive security product line-up. This gate represents the pinnacle of our security-rated offerings.
The ProFence® series has undergone rigorous testing and earned accreditation under the strict SR1 (A1) LPS 1175 standards. This certification signifies a one-minute delay against hostile attacks employing various hand tools from Toolkit A, including glass cutters, wrenches, and pliers. These compact tools are easily concealable, making them a preferred choice for potential intruders. The critical sixty-second delay provides a window of time for on-site security personnel to detect any breach on CCTV and respond swiftly.
First Fence's ProFence® product range includes both 868 and 358 mesh options, featuring fencing kits and single and double leaf gates in a wide range of heights and widths.
Our commitment to quality and security is evident in the rigorous SR1 testing process, which has rightfully earned our product range a prestigious place in the Red Book.
Our double leaf gate offers exceptional flexibility in terms of access control. Crafted from top-quality steel that has been hot dip galvanised, meeting ISO 1461 standards. Each gate is further protected by a polyester powder coating, available in various colours, for enhanced defence against wear, damage, rust, and corrosion.
The comprehensive kit includes a sliding gate leaf, a catch leaf, two hinge gate posts, two drop bolts, six adjustable gate eyes, and ribbed inserts for the gate frame and posts. The gate leaves feature an 868 mesh infill, a well-established security mesh configuration with 6mm thick vertical wires and 8mm thick horizontals, making it highly resistant to cutting.
This robust mesh is ideal for scenarios requiring clear perimeter visibility or integration with CCTV systems.
For added security, our gate kit incorporates six adjustable gate eyes, ensuring gate stability even in the unlikely event of a hinge failure. Each adjustable gate eye bolt is securely fastened with a snap-off nut, minimising the risk of post-installation removal. Enhanced Security with two Drop Bolts holding one or both leaves secure.
Our SR1-rated gate kit is available in both dig-in and bolt-down formats, making it suitable for various ground conditions. Whether it's grass or other soft terrain, which requires the dig-in option, or concrete and other solid ground types, which need bolt-down posts, we have you covered.
The bolt-down kit includes essential ground anchor bolts, while the dig-in kit requires the addition of Post Mix to your order. We recommend four bags per post for optimal installation. You should use either C20 or C25 post mix.
Our gate is designed for both pedestrian access and small vehicles such as forklifts. The sliding latch bolt keeps the leaves securely closed, and the drop bolts ensure firm leaf placement. You have the flexibility to open one or both leaves to meet your specific needs.
A recommended range of approved Secure By Design (SBD) padlocks is available.
If you have any questions about our ProFence® product range or need assistance with your order, our dedicated sales team is here to help. Reach out to us at 01283 512111 or use our convenient online chat system. Your security is our priority at First Fence.
