Height | 2000mm [Installed] |
Access Width | 5000mm |
Box Sections of Posts | 100 x 100mm |
Gate Hanging Side | Right Hand Hung (From Outside Looking In) |
Thickness of Wires | 4mm |
Material | Pre Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Name | Quantity |
---|---|
Sliding Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Hinge Gate Post | 2 |
Drop Bolts | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Insert for Gate Post | 2 |
Ribbed Insert for Gate Frame | 4 |
Ground Anchor Bolts [Bolt Down Version] | 8 |

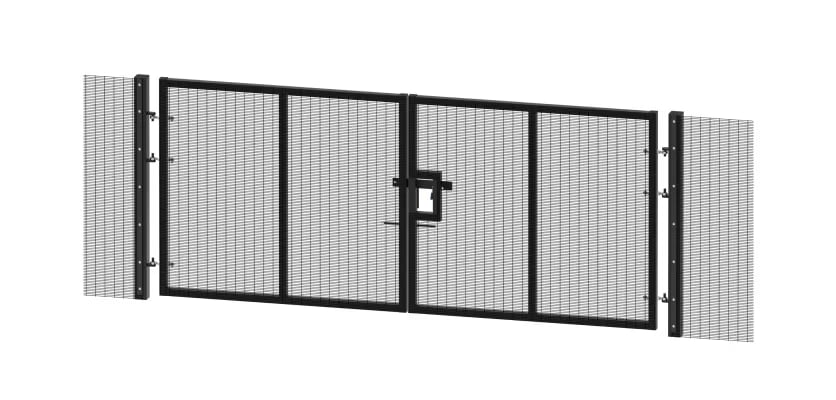

Discover the ProFence® SR1 (A1) LPS 1175 2.0m x 5.0m 358 Mesh Double Leaf Gate Kit, designed and manufactured by First Fence to provide robust security for safeguarding your valuable property and assets.
We take great pride in introducing the ProFence® SR1 (A1) LPS 1175 358 Mesh Gate Kit as a cornerstone of our expansive new security product line-up. This gate represents the height of our security-rated offerings.
The ProFence® series has gone through a very rigorous testing process and earned well-deserved accreditation under the stringent LPS 1175 SR1 (A1) standards. This accreditation signifies a one-minute delay against hostile attacks employing a selection of hand tools from Toolkit A, including glass cutters, wrenches, screwdrivers and pliers. These compact, small tools are easily concealable, making them the preferred choice for potential intruders. The critical sixty-second delay provides a window of opportunity for on-site security personnel to detect any breach on CCTV and then to respond promptly.
First Fence's ProFence® product range encompasses both 868 and 358 mesh options, offering fencing kits and single and double leaf gates in a wide range of heights and widths.
Our unwavering commitment to quality and security is evident in the rigorous SR1 testing process, which has rightfully earned this product range a place in the Red Book.
Our double leaf gate offers exceptional flexibility in terms access control, with the option to have one or both leaves open or closed. Crafted from high-quality hot-dipped galvanised steel, which is compliant to ISO 1461 standards. It receives further protection from a sleek polyester powder coating, available in various RAL colours, providing enhanced defence against wear, damage, vandalism, rust, and corrosion.
This full kit includes gate leaves, two hinge gate posts, two drop bolts, six adjustable gate eyes, and ribbed inserts for the gate frame and posts. The gate leaves feature a robust 358 mesh infill that is challenging to cut or climb. This sturdy mesh is ideal for scenarios requiring clear boundary visibility or integration with CCTV systems. It adds a physical and visual deterrent to your location.
As an additional security feature, our SR1 rated gate kit incorporates six adjustable gate eyes, ensuring gate stability even in the unlikely event of a hinge failure. Each adjustable gate eye bolt is securely fastened with a snap-off nut, minimising the risk of post-installation tampering. Additionally, two Drop Bolts provide extra safety.
The SR1-rated gate kit is available in both dig-in and bolt-down formats, making it suitable for all types of ground conditions. Whether it's grass or other soft terrain, which requires the dig-in option, or concrete and other solid ground types, which need bolt-down posts, we have you covered.
The bolt-down kit includes essential ground anchor bolts, while the dig-in kit requires the addition of Post Mix to your order. We recommend four bags per post for an optimally sturdy installation. You should use either C20 or C25 post mix.
Our gate is designed to facilitate access for both pedestrians small vehicles with its 5.0m width. The sliding latch bolt will keep the leaves securely closed, and the drop bolts ensure firm leaf placement. You have the flexibility to open one or both leaves to meet your specific needs.
A recommended range of approved Secure By Design (SBD) padlocks is available.
ProFence® Fencing is certified for gradients from 0 to 25 degrees.
If you have any inquiries about our ProFence® product range or require assistance with your order, our dedicated sales team is here to help. Reach out to us at 01283 512111 or use our convenient online chat system. At First Fence, your security is our top priority.
