Height | 2.4m [Installed] |
Box Section of Post | 60x60mm |
Post Type | Dig In or Bolt Down |
Material | Pre-Galvanised Steel |
Finish | Green and Black as standard, Blue, Red, Grey and Yellow also available on request |
Compliant To | BS EN 10346 [Galvanising] |
Name | Quantity |
---|---|
Profence® Corner Post [2.4m high 60x60mm x 2mm] | 1 |
Profence® 2.4m Clamp Bar [Actual height 2430mm] [Currently supplying Option B] | 2 |
Profence® Security Clip [Currently supplying Option 2] | 18 |
M8x100mm Cup Head Bolts and Nuts | 18 |
Black Ribbed Inserts | 1 |
M12 x 125mm Ground Anchor Bolts [Bolt Down Version] | 4 |
Introducing the ProFence®SR1 (A1) LPS 1175 2.4m High 868 Mesh Corner Post Kit from First Fence. This security mesh corner post kit is part of a meticulously designed system aimed at providing a solid solution for a whole spectrum of high-security and access control situations. This system excels when features such as CCTV integration or a commanding visual and physical deterrent is required.
ProFence®, our security-rated fencing, is a cost-effective and exceptionally robust security mesh system that holds certification under the rigorous LPS 1175 SR1 (A1) standards. This esteemed certification guarantees a one-minute delay against opportunistic attacks utilising Category A tools, which encompass pliers, glass cutters, spanners, bolt cutters, and engineer's hooks. The are smaller tools that can easily be concealed by someone looking for an opportunity to break in somewhere.
The SR1 (A1) ratings and LPS 1175 compliance set the gold standard for thwarting determined, opportunistic attempts at forced entry into facilities safeguarding high-value assets. This invaluable one-minute delay provides on-site security teams with a critical opportunity to intercept intruders before they breach the security perimeter.
This type of security mesh fencing offers enhanced security, visual deterrence, long-lasting durability, customisation and peace of mind. It is a good choice for those seeking a more secure fencing solution and is an excellent investment for facilities that require enhanced perimeter security.

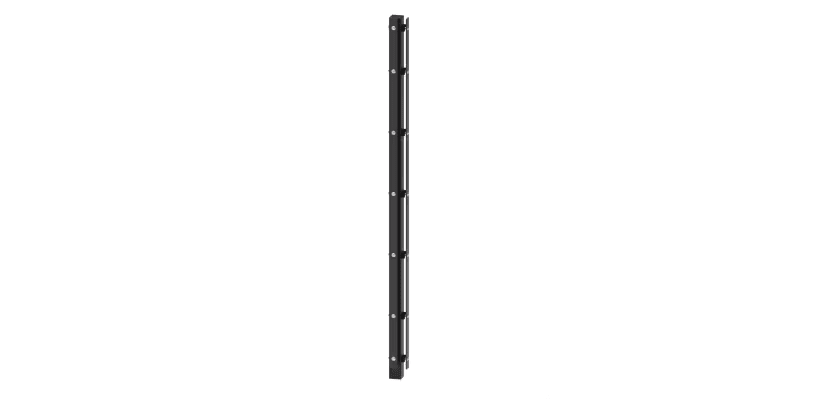

The ProFence® security-rated Corner Post Kit comprises a corner post, clamp bars, M8x90mm through bolts and nuts, U Clips, and black ribbed inserts designed for the open box section ends.
Crafted from high quality steel which has been pre-galvanised to BS EN 10346 standards and polyester powder-coated in a range of RAL colours which include green or black. These corner post kits exhibit superior resistance to rust and corrosion, ensuring its durability for outdoor use.

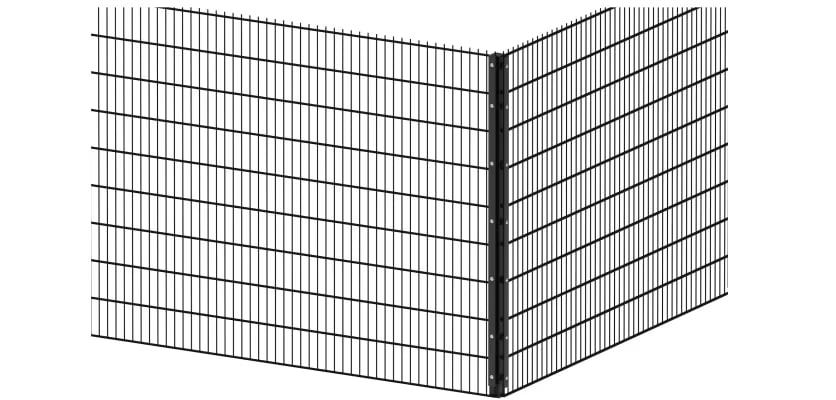

The corner post can be installed with a 270° external corner or a 90° internal corner mesh panel fixing. This kit, available in both dig-in and bolt-down variations. Other heights are also available to match the 868 Mesh Fencing Panels.
Installation of this corner post kit follows the same principles as standard mesh posts. Concrete it into softer ground or opt for the bolt-down method on harder ground (ground anchors are included with the bolt-down option). Post Mix will be needed if you select to dig in your posts, it is recommended that you use three bags per post, this is available to add to your purchase. It is highly recommended that you use either C20 or C25 post mix.
The U Clip is positioned over the hole in the post, with the panel and clamp bar placed over it. The long M8x90mm bolt then passes through all components and is securely fastened to the back of the post with a shear nut.
ProFence® is certified for gradients from 0 to 25 degrees.
