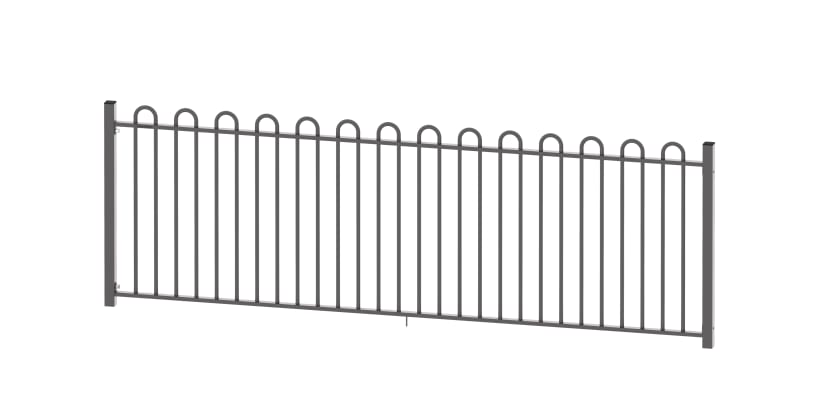

0.9m High EnviroRail® Bow Top Play Sec Railing Kit
| Installed Height | 900mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt down: 900mm] [Dig In: 1400mm] |
| Panel Width | 2900mm |
| Total Width | 2950mm from post centre to post centre |
| Rail Style | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Name | Quantity |
|---|---|
| EnviroRail® Play Sec Railing Panels | 1 |
| Railing Posts | 1 |
| Twist Cleats | 4 |
| M10 x 70mm Bolts | 2 |
| M10 Shear Nuts | 2 |
| Support Legs | 1 |
| Ribbed Post Insert | 1 |
0.9m High EnviroRail® Bow Top Play Sec Railing Kit
A child friendly and fantastic looking railing system that is ideal for use on school grounds, around play areas and parks. Its curved bow top design removes points or sharp corners. To prevent children from getting their heads, necks and other body parts trapped, there are no gaps larger than 89mm in width.
Whilst these railings may look like standard bow top railings, the major difference is in how each bay is constructed. The EnviroRail® Play Sec railing systems use a series of custom formed and cut components which have been specifically designed to form an incredibly strong bond when pressed together. This system greatly reduces the amount of resource and energy intensive welding required to create each bay.
Each EnviroRail® kit is comprised of pre-galvanised steel hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
Each kit of Bow Top railings includes:
- 1 x 0.9m High EnviroRail® Bow Top Play Sec railing panel
- 1 x Railing post
- 1 x support legs
- 1 x ribbed post insert
- 4 x twist cleats
- 2 x M10 x 70mm Bolts
- 2 x M10 shear nuts
To allow these railings to be installed on a range of ground surfaces, these 0.9m high kits are available with either dig in or bolt down posts.
Powder coated Finish
Each bay of these child-safe bow top railings have been constructed from high quality steel, finished with a professionally applied Polyester Powder Coating (PPC). These coatings are available in a range of bright, eye-catching colours and provide the steel with a layer of protection against the damaging effects of weathering and rust.
How to step your panel
Step One: Drill a 6mm pilot hole in the desired location for the new cleat; this is dictated by the gradient.
Step Two: Open the hole to a 12mm hole size to take the M10 bolts (as listed in the step below).
Step Three: Touch up and spray the hole, if required.
Step Four: Attach the cleat using the M10 x 70mm Square Cup Head Bolt and Shear Nut (for 0.9m to 1.2m height system) or M10 x 80mm Square Cup Head Bolt and Shear Nut (1.5m to 2.4m height systems).
Step Five: Attach the railing panel as per standard installation guidance.
Note: Please ensure the spacing relationships are followed according to the existing hole centres on the posts.
