1.0m High x 2.0m Wide EnviroRail® Play Sec Railing Double Leaf Gate Kit

The EnviroRail® Play Sec Railings from First Fence, are a prime choice when planning a safe, secure play areas for children. This line of products offers an ideal answer for playground fencing, considering crucial aspects such as an effective height to deter climbing, closely positioned vertical rails to minimise potential hazards, sleek surfaces to mitigate injuries, and enduring durability for permanent outdoor set-up.

A notable addition to the EnviroRail® range is the Play Sec Railing Double Leaf Gate Kit, designed to perfectly accompany the railings of the same style. Available in various heights and widths as either single or double leaf options, these gate kits not only provide a secure entry and exit point for play areas but also contribute to elevating the overall aesthetics of the space.

Features and Benefits

The EnviroRail® Play Sec Railing Double Leaf Gate Kit, with dimensions of 1.0m in height and 2.0m in width, provides versatile access control. Despite its lower height, it excels in delivering excellent entry control by allowing the operation of either one or both leaves. It is advisable to include a locking drop bolt with the double leaf format, available as an additional purchase option.

The EnviroRail® Double Gates present a fully modular and relatively lightweight solution, ensuring easy installation for a range of gate hardware. With universal handing, these gates provide flexibility on-site, eliminating the requirement for fixed left or right-hand specifications. The modular design allows straightforward adjustments in case of gate movement, providing a level of flexibility that fixed hardware cannot deliver.

Produced using a more eco-friendly technique, the EnviroRail® Play Sec Gate Kit distinguishes itself from standard railings, making it the preferred choice for customers with a preference for reduced eco-impact during production. This inventive method employs custom laser-cut components that are pressed together to create strong bonds, thereby considerably decreasing the reliance on energy-intensive welding.

Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.

Every EnviroRail® Play Sec Gate Kit is produced from pre-galvanised steel that adheres to BS 10346 standards and is further coated with polyester powder for durability and resilience. The double-layered protection guarantees enduring functionality, offering resistance against harsh outdoor elements and maintaining its aesthetic charm for years to come.

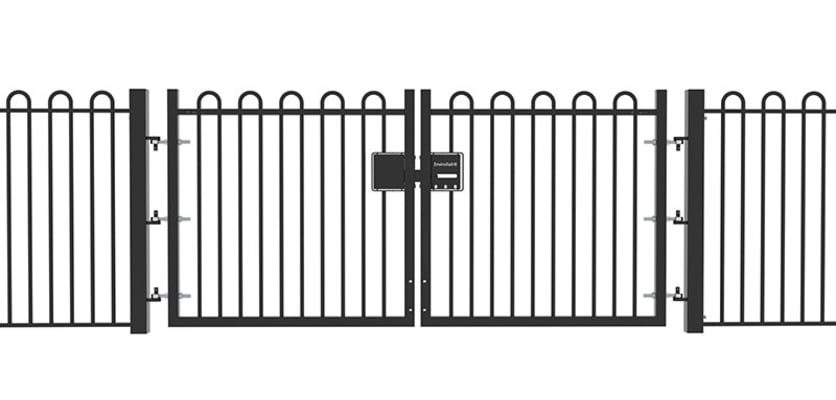

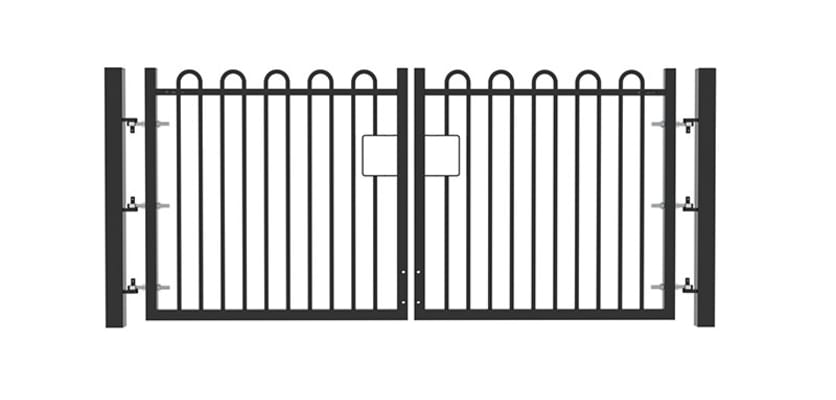

The double-leaf gate kit comprises two hinge posts, two Play Sec Railing leaves, and six adjustable gate eyes. With three hinges per leaf, the gate remains compliant with BS 12604, ensuring safety even in the unlikely event of a hinge failure. The gate hooks are fully welded to the gate post, giving a fixed-axis hinge that eliminates up and down movement.

Pre-drilled holes simplify the attachment of gate eyes and a drop bolt, accompanied by plastic plugs to cover unused holes on the gate attack face, ensuring a finished look and preventing water accumulation. Compatible with our security locks, the gate allows for up to 30mm of adjustment from the catch post, facilitating an easy installation process.

Safety Compliance

The gate rails set at 100mm centres prevent entrapment, and the top bows of 90mm prevent wrist or neck trapping. The rail positioning allows parents, guardians, or supervisors for easy supervision of children while playing. This enhances overall safety and reduces the risk of accidents. The design and manufacture of the EnviroRail® Play Sec Railing Gate fully comply with BS EN 1176 regulations.

The gate provides a 50mm ground clearance when correctly installed, with the gate opening 90° in and out.

Available in various heights and widths, these gates come in a dig-in or bolt-down version, suitable for diverse environments. The dig-in variant requires the addition of Post Mix to the order, while the bolt-down version requires four M16 x 125mm ground anchor bolts per post.
