Height | 900mm [Installed] |
Access Width | 6000mm |
Total Post Length | 900mm [Bolt Down],1400mm [Dig In] |
Box Sections of Posts | 100x100mm |
Box Section of Gate Leaf | 50x50mm |
Rail Style | Vertical Bar - Hollow Tubular |
Post Type | Dig In, Bolt Down |
Gate Hanging Side | Universally Handed |
Material | Pre-Galvanised Steel to BS EN 10346 |
Finish | Polyester Powder Coated |
PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
Name | Quantity |
---|---|
Envirorail® Sliding Gate Leaf | 2 |
Hinge Gate Post | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Inserts for Gate Frame | 4 |
Ribbed Inserts for Posts | 2 |
Introducing the very latest addition to our product line up, the EnviroRail® Vertical Bar Gate series by First Fence. This innovative gate design complements our current EnviroRail® Vertical Bar Railing collection, adding greatly to both the visual appeal and utility of any public or private spaces. Engage in innovative design that effortlessly combines affordability with elegance, ensuring lasting charm and resilient durability.
The gates within this collection, available in various widths and heights, offer versatility with options for both dig-in and bolt-down formats. This ensures adaptability across different ground types and terrains. Before finalising your gate purchase, we recommend conducting a ground assessment to guarantee the appropriate product selection for your specific location. Our knowledgeable sales team is ready to assist you; feel free to reach out at 01283 512111.

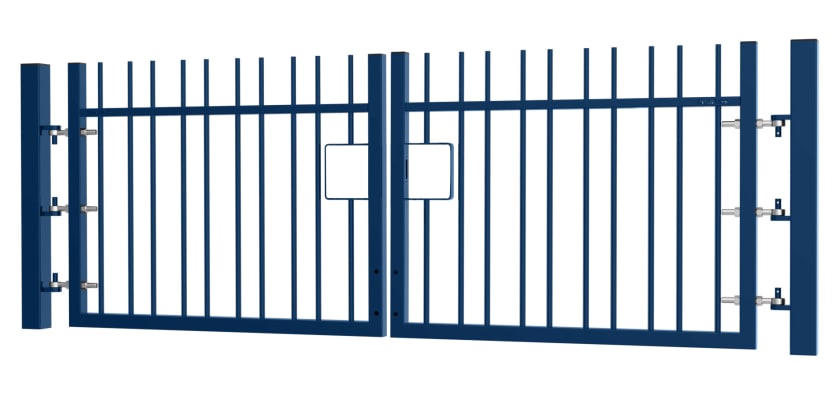

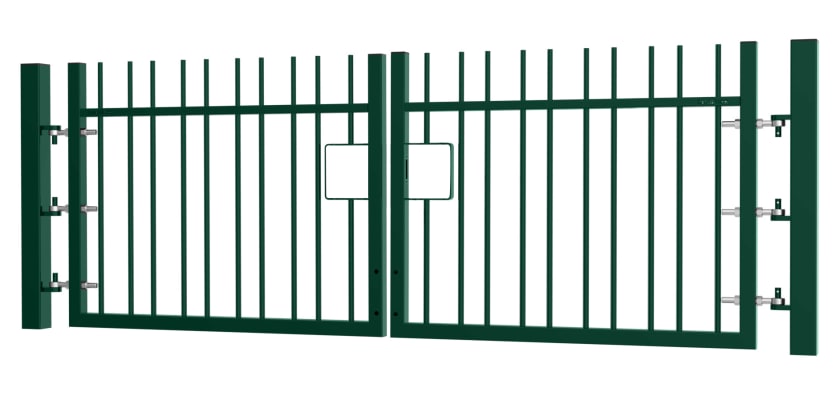

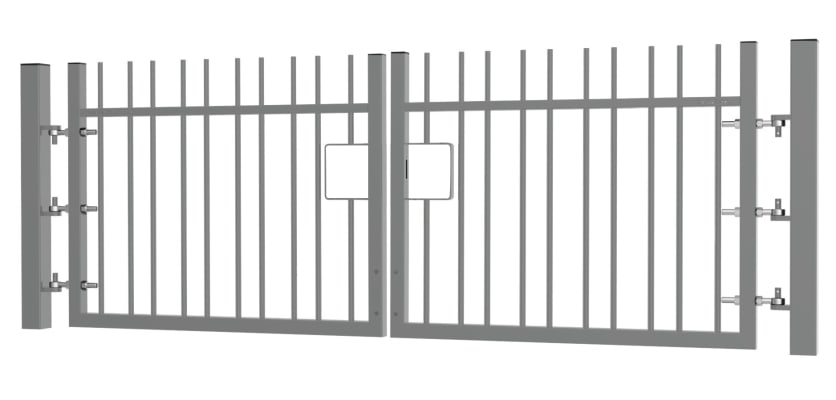

The EnviroRail® Vertical Bar Double Leaf Gate Kit, measuring 0.9m high x 6.0m wide, has the greatest width in this height and is ideal for the broader gate or driveway, providing total flexibility in access control. Users can choose to have one or both leaves in open or closed positions, allowing for customised access limitations and control. This wider gate accommodates foot and vehicle traffic easily.
While this gate style may resemble a conventional vertical bar railing gate at first glance, its distinct feature lies in its environmentally mindful manufacturing process. This employs innovative low-weld techniques and custom-made, laser-cut pre-galvanised components, which when interlocked and pressed together achieves robust connections without a high requirement resource and energy-intensive welding. If reducing environmental impact is a priority, this could be the ideal choice for you.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
First Fence's EnviroRail® Double Gates offer a fully modular, yet relatively lightweight gate solution, ensuring quick installation to meet diverse hardware needs. Universally handed, they provide on-site flexibility without fixed left or right-hand specifications, allowing adjustments if the gates move, an advantage that fixed hardware lacks.
Each gate in the kit arrives pre-drilled with holes, simplifying the attachment of the six adjustable gate eye hinges and a locking drop bolt. Plastic hole plugs are included to conceal any unused openings on the attack face, and a locking drop bolt is available as an optional addition, highly recommended for double leaf gate security. The kit includes two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each gate leaf), adhering to BS 12604 safety guidelines for gate stability, even if one hinge fails. This is crucial for preventing injury to people and property damage. Moreover, the gate hooks are securely welded to the gate post giving fixed-axis hinges that eliminate any vertical movement.
Available in various heights and widths, the gate kits come in both dig-in and bolt-down versions, catering to installation needs in diverse locations. The dig-in variant suits softer terrain, requiring Post Mix for secure installation, while the bolt-down option is ideal for harder ground surfaces, secured using four M16 x 125mm anchor bolts per post.
Compatible with our security locks, this gate kit allows up to 30mm of adjustment from the catch post when installed correctly, with the gates having 50mm ground clearance.
In addition to this gate kit, First Fence offers EnviroRail® Railings, Estate Railings, and Gates. Enhance security by incorporating a robust padlock as an extra precautionary measure.
For guidance in selecting the ideal product, reach out to the First Fence sales team today at 01283 512111 or use the convenient online chat tool.
