CP.BULL20-HE In-Built Control Panel for BULL20HE

CP.BULL20-HE In-Built Control Panel for BULL20HE

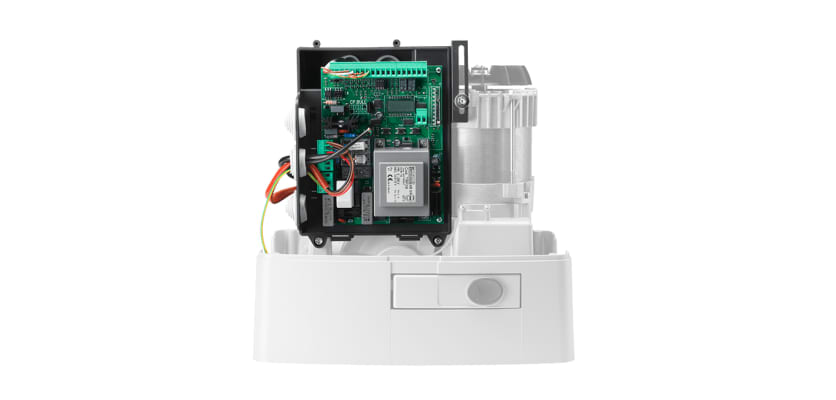

The CP.BULL20-HE In-Built Control Panel is designed to work with the BULL20HE sliding gate motors providing a range of features that enhance functionality, safety and ease of use.

Features

The system features an integrated LCD display along with a 433.92 MHz radio receiver that supports 64 codes and three encoding systems: Advanced Rolling Code, Rolling Code, and Fixed Code. It includes removable terminal boards and offers automatic, semi-automatic, and deadman’s logic. The encoder input is designed to detect obstacles, and there are motor limit switch inputs, as well as controls for open, close, pedestrian, step-by-step, and stop functions.

Programmable photocell inputs can be configured to activate during either the opening-closing phases or solely during the closing phase. Additionally, there is an input for N.C. or 8K2 sensitive edges, and outputs can be configured for functions such as gate open indicators, service lights, or a second radio channel. The system also provides a photocell testing output, auto setting of operational parameters, and electronic motor torque adjustment.

Adjustable slow-down systems ensure smoother operation, while electronic braking guarantees a precise stop, even with heavy doors. The Advantouch system enables easy configuration of parameters and management of radio transmitters. Other features include a record of the number of manoeuvres, a programming access password, and a maintenance warning.

First Fence offers an extensive selection of gate automation products and accessories, along with a diverse array of gates such as palisade, mesh, railings, and specialised or custom options.
