CFS/K-90 WIL - Extra Heavy Duty Load Bearing Cavity Wall Lintel - Wide Inner Leaf

SKU: WEB-01298
Images shown are for illustration purposes only and may differ slightly
ProductQtyPrice (ea)Total
Goods Total
Overall Quantity:
0
Total:
£0.00
£0.00
Inner Leaf Width125mm
Outer Leaf Width95mm

Specification

Inner Leaf Width125mm
Outer Leaf Width95mm

Downloads

CFS/K-90 WIL - Extra Heavy Duty Load Bearing Cavity Wall Lintel - Wide Inner Leaf

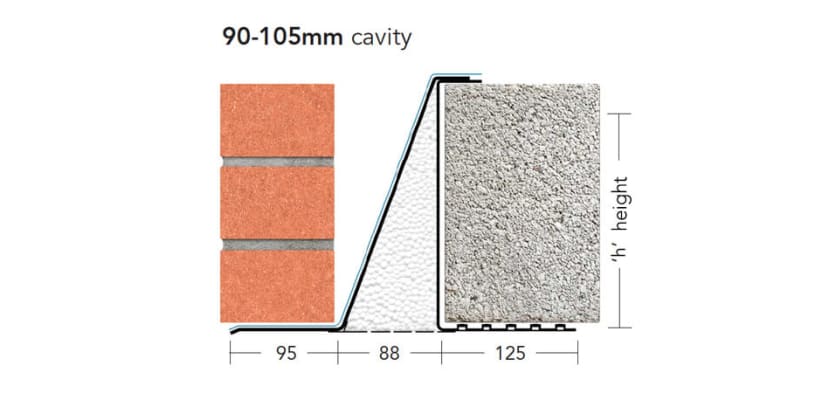

This heavy duty load bearing cavity wall lintel has been designed for bearing heavy duty loads for cavity walls with a cavity width between 90mm to 105mm. With a wider inner leaf of 125mm, this lintel is suitable for use with inner blockwork with a maximum width of 150mm. The outer leaf has a width of 95mm and is suitable for standard brickwork.

The CFS/K-90 WIL range of lintels is available in 150mm increments starting from 750mm up to 4800mm, allowing for heavy duty load bearing support over a variety of opening lengths for various applications such as for doors or windows.
Please note: For correct installation of the lintel, a 150mm end bearing at each end is required. For example: if the opening is 1200mm then the lintel required will need to have an additional 300mm added to the length to accommodate the end bearings.

This range of standard load bearing lintels has been made from high quality pre-galvanised mild steel and satisfy the thermal performance requirements of England and Wales’ part L of the building regulations, Northern Ireland’s part F and Scotland’s technical handbook, section 6.

In order for this lintel to support the specified loads below, the lintel will need to be installed correctly. Please refer to the installation guide for further information.

The figures also take into account the different loading types which are common in traditional cavity wall construction. These lintels have been tested as a composite unit with surrounding masonry and have been built in accordance with BS EN 1996-2:2006. These figures have been acquired through testing in accordance with the requirements of standards BS 5977 Part 2: 1983 and BS EN 845-2:2003
Differential Total UDL kN 19:1 (up to 95% loading on the inner leaf)

Length (150mm increments)Height (mm)Steel Thickness (mm)Total UDL kN 19:1
750 - 15002292.970
1650 - 21002292.960
2250 - 30002292.950
3150 - 40002293.245
4200 - 48002293.240

CFS/K-90 WIL - Extra Heavy Duty Load Bearing Cavity Wall Lintel - Wide Inner Leaf

This heavy duty load bearing cavity wall lintel has been designed for bearing heavy duty loads for cavity walls with a cavity width between 90mm to 105mm. With a wider inner leaf of 125mm, this lintel is suitable for use with inner blockwork with a maximum width of 150mm. The outer leaf has a width of 95mm and is suitable for standard brickwork.

The CFS/K-90 WIL range of lintels is available in 150mm increments starting from 750mm up to 4800mm, allowing for heavy duty load bearing support over a variety of opening lengths for various applications such as for doors or windows.
Please note: For correct installation of the lintel, a 150mm end bearing at each end is required. For example: if the opening is 1200mm then the lintel required will need to have an additional 300mm added to the length to accommodate the end bearings.

This range of standard load bearing lintels has been made from high quality pre-galvanised mild steel and satisfy the thermal performance requirements of England and Wales’ part L of the building regulations, Northern Ireland’s part F and Scotland’s technical handbook, section 6.

In order for this lintel to support the specified loads below, the lintel will need to be installed correctly. Please refer to the installation guide for further information.

The figures also take into account the different loading types which are common in traditional cavity wall construction. These lintels have been tested as a composite unit with surrounding masonry and have been built in accordance with BS EN 1996-2:2006. These figures have been acquired through testing in accordance with the requirements of standards BS 5977 Part 2: 1983 and BS EN 845-2:2003
Differential Total UDL kN 19:1 (up to 95% loading on the inner leaf)

Length (150mm increments)Height (mm)Steel Thickness (mm)Total UDL kN 19:1
750 - 15002292.970
1650 - 21002292.960
2250 - 30002292.950
3150 - 40002293.245
4200 - 48002293.240
