Dimensions | 330mm x 326mm x 260mm |
Motor Supply | 24 Vdc |
Maximum Absorbed Current | 3.2/1.7 A |
Maximum Thrust | 535 N |
Opening Speed | 5.5 ÷ 12m/min |
Duty Cycle | 99% |
Protection Level | IP44 |
Inbuilt Encoder | Magnetic |
Operating Temperature | -20°C/+50°C |
Max Gate Weight | 350kg |
Gate Usage | Residential |
Compatible Control Panel | In-built |
Name | Quantity |
---|---|
Single Motor | 1 |
CP.B24-D120 [Control Panel] | 1 |
Manual Release Key | 1 |
Instruction Manual | 1 |
Sliding gate motors are devices that are used to automate the closing and opening of sliding gates. They are very popular in residential, commercial, and industrial settings due to their convenience, security and ease of use, and they add some extra security for residential properties by controlling access to driveways and entrances.
Automated gates equipped with motors provide enhanced security by restricting access to unauthorised personnel and vehicles and can be integrated with additional features such as intercoms, keypad access, or remote monitoring capabilities.
High-quality sliding gate motors are built to withstand harsh weather conditions and heavy use, ensuring long-term durability and reliability with minimal maintenance requirements.

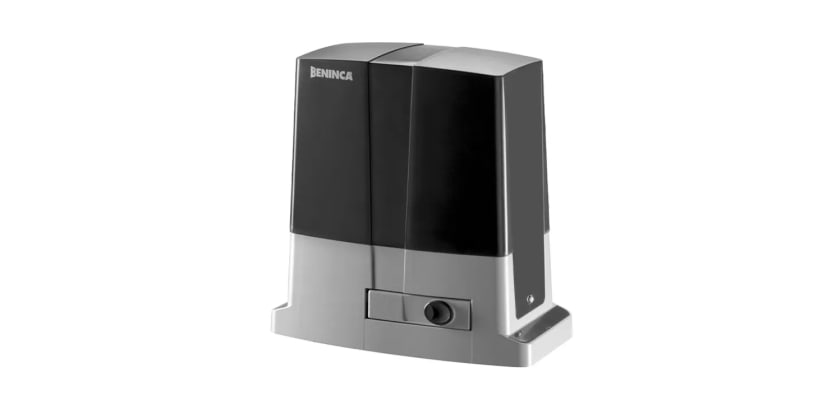

The BULL424SE Sliding Gate Motor is ideal for domestic and light commercial sliding gates up to 350kg. The product has a control unit with a built-in receiver and virtual encoder, built-in ESA+ system, personalised release key and built-in battery charger.
24 Vdc gear motor designed for heavy-duty use, featuring an integrated control unit and encoder.
Includes an energy-saving ESA SYSTEM.
The encoder ensures optimal safety and precision during gate movement.
The STC system allows for effective torque management.
Equipped with an amperometric sensor for obstacle detection to prevent crushing.
Ready for a battery backup system.
Features a metal release lever, and magnetic limit switch accessories (MLS) are available.
